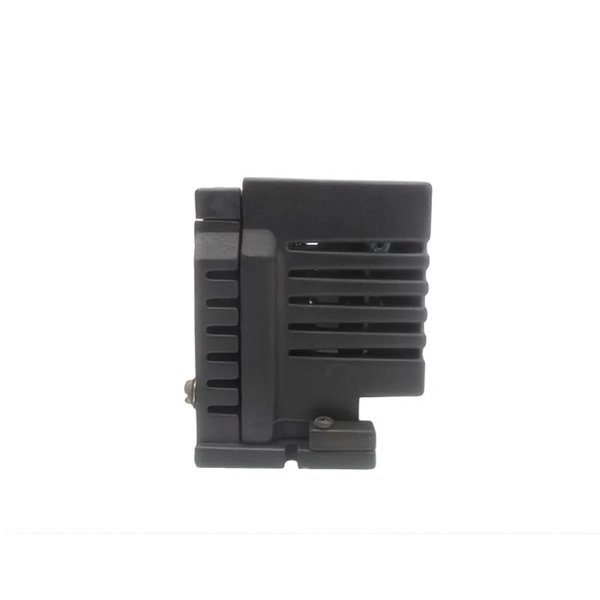

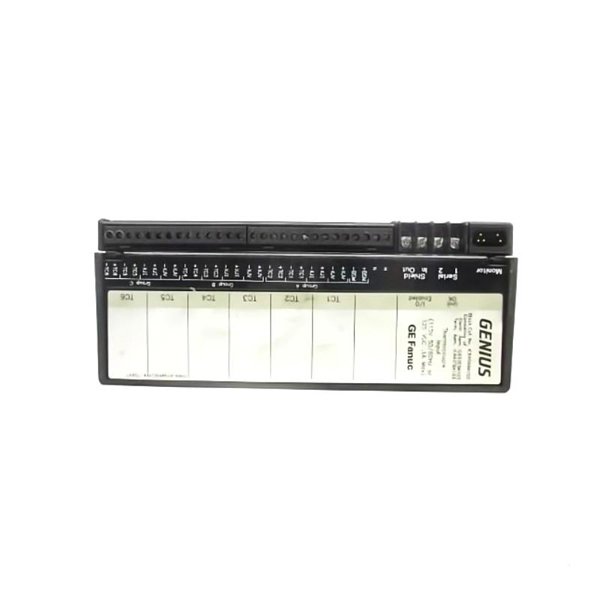

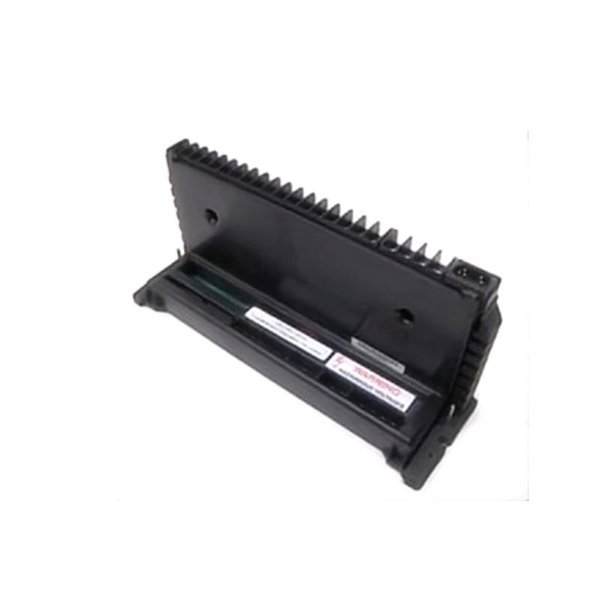

General Electric IC660TBA103 Terminal Assembly

The GE IC660TBA103 Terminal Assembly is a high-reliability wiring module designed for use within the GE Genius I/O system. Engineered for analog block applications, this terminal assembly supports fast, secure, and maintainable field wiring to facilitate data acquisition and control in distributed systems. As part of the Genius series, it plays a crucial role in connecting field sensors and actuators to control systems in industrial environments.

With its rugged build and reliable performance, the IC660TBA103 ensures safe and efficient electrical termination, making it ideal for process-intensive industries such as power generation, water treatment, oil and gas, pharmaceuticals, and manufacturing automation.

Technical Specifications

Product Applications

The IC660TBA103 terminal assembly is designed for analog signal processing and control across a broad range of industries. Some common application environments include:

• Water & Wastewater Treatment Plants

  Used for sensor signal collection and actuator control related to flow, pressure, and level.

• Power Generation Facilities

  Connects analog devices such as temperature sensors, flow meters, and transmitters.

• Oil & Gas Platforms

  Enables analog signal monitoring in hazardous and offshore conditions.

• Pharmaceutical Automation

  Provides wiring for high-precision sensors in cleanroom environments.

• Food & Beverage Industry

  Interfaces analog devices for controlled batching, flow monitoring, and quality assurance.

• Building Automation Systems

  Used in HVAC and environmental control systems where analog input/output is essential.

Product Advantages

• Dedicated for Analog I/O

  Specifically built to connect to analog Genius I/O blocks, ensuring noise-resilient and stable signal termination.

• Compact and Modular Design

  Small footprint saves panel space while still offering 24 reliable terminal points.

• Fast and Secure Wiring

  Screw-type compression terminals allow fast installation and secure contact without specialized tools.

• DIN and Panel Mounting Options

  Compatible with various installation preferences in control cabinets.

• Extended Operating Conditions

  Withstands industrial temperatures and humidity, maintaining performance under adverse conditions.

• High Compatibility

  Works with a wide range of GE analog modules, making it a versatile field wiring interface.

• Durable Build

  Industrial-grade construction and certified safety for harsh environments.

• Easy Maintenance

  Clear terminal labeling and accessible layout simplify diagnostics and replacements.

• Global Certifications

  UL, CE, and CSA approvals support international use and compliance.

• Field-Proven Reliability

  Trusted in thousands of installations worldwide as part of GE’s proven Genius I/O architecture.

Frequently Asked Questions (FAQ)

1. Q: What is the GE IC660TBA103 used for?

   A: It is used to connect field analog devices to GE Genius I/O analog blocks.

2. Q: Can it be mounted on DIN rails?

   A: Yes, it supports both DIN rail and panel mounting.

3. Q: How many terminals does this assembly provide?

   A: It includes 24 screw-type terminals.

4. Q: Is the TBA103 suitable for digital blocks?

   A: No, it is designed for analog blocks only.

5. Q: What voltage can this handle?

   A: It supports up to 125 VDC or 250 VAC depending on the connected block.

6. Q: Can I use this outdoors?

   A: It must be installed inside a protective enclosure if used in harsh environments.

7. Q: Is it compatible with all Genius I/O modules?

   A: It is specifically compatible with GE analog I/O modules in the Genius series.

8. Q: What tools are required for installation?

   A: A standard screwdriver is sufficient for terminal tightening.

9. Q: Does it support labeling?

   A: Yes, the terminal points are labeled for easy identification.

10. Q: Is this model hot-swappable?

    A: No, always power down the system before replacing terminal assemblies.
