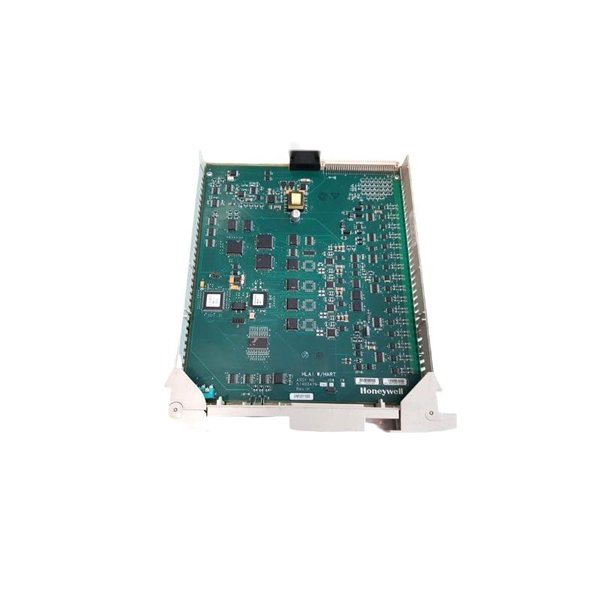

Honeywell MC-PHAI01 51403479-150 High level analog Input Module

This module ensures consistent and reliable data acquisition, supporting various signal types including 4–20 mA current loops. Its enhanced diagnostic capabilities, hot-swap support, and compatibility with fault-tolerant architectures make it a trusted choice across diverse industries such as oil & gas, chemical processing, power generation, and pharmaceuticals.

Technical Specifications

Product Applications

The MC-PHAI01 is utilized across multiple industrial applications, especially where accurate analog input acquisition is mission-critical:

• Oil & Gas: Used for real-time pressure, flow, and level measurement.

• Chemical Processing: Enables tight control of process variables.

• Power Generation: Monitors temperature and pressure in turbines and boilers.

• Pharmaceuticals: Captures data from precise laboratory instruments.

• Water Treatment: Reads flow and chemical dosing sensors.

• Food & Beverage: Supports sanitary signal acquisition in automation.

Product Advantages

• High Input Density: Supports 16 differential analog input channels in a compact module.

• Robust Signal Integrity: Offers superior channel-to-channel isolation to minimize signal interference.

• Flexible Integration: Easily integrates into Honeywell Experion and other TDC 3000 systems.

• Redundancy Ready: Seamless support for redundant configurations enhances system reliability.

• Hot Swappable: Facilitates module replacement without shutting down the system.

• Diagnostics Support: Advanced module diagnostics reduce downtime and improve maintenance cycles.

• Certified Reliability: Designed to meet rigorous industry safety and compliance standards.

Frequently Asked Questions (FAQ)

Q1: What type of signals does the MC-PHAI01 accept?

A1: It supports high-level analog signals, primarily 4–20 mA and 0–20 mA.

Q2: Can this module be hot-swapped during system operation?

A2: Yes, it supports hot-swapping without disrupting the system.

Q3: Is MC-PHAI01 compatible with redundant control configurations?

A3: Absolutely. It is designed for seamless integration into redundant architectures.

Q4: What is the module’s resolution for analog inputs?

A4: The MC-PHAI01 has a 16-bit resolution for high-precision readings.

Q5: What industries commonly use this module?

A5: It’s widely used in oil & gas, power generation, chemicals, pharmaceuticals, and water treatment.

Q6: What is the operating temperature range?

A6: It operates reliably between 0°C and +60°C.

Q7: Is the module certified for industrial safety standards?

A7: Yes, it carries certifications such as CE, UL, and CSA, depending on configuration.

Q8: How many channels are supported?

A8: The module supports up to 16 analog input channels.

Q9: How is this module mounted?

A9: It can be DIN rail-mounted or installed within Honeywell system chassis.

Q10: Can this module be used with PlantScape or Experion PKS?

A10: Yes, it is fully compatible with both platforms.
