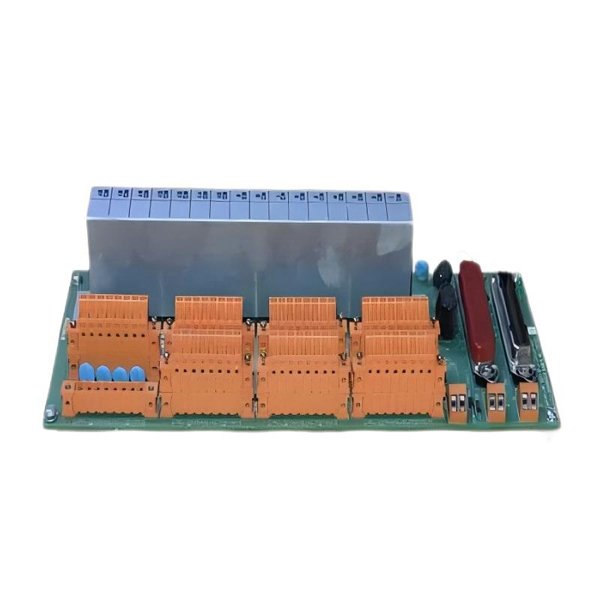

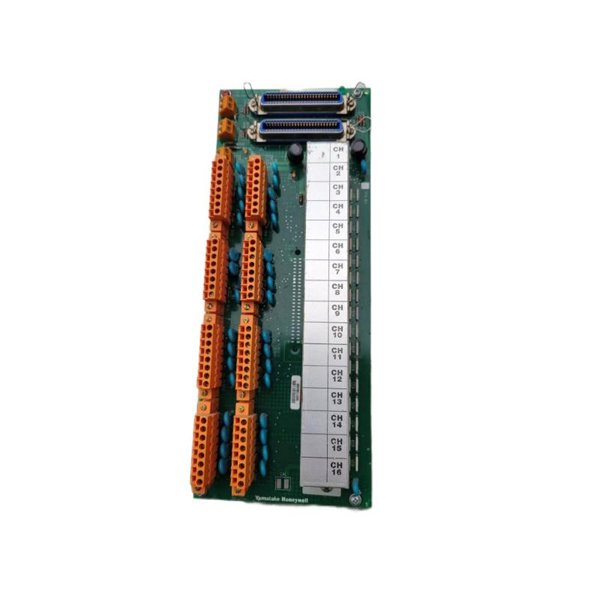

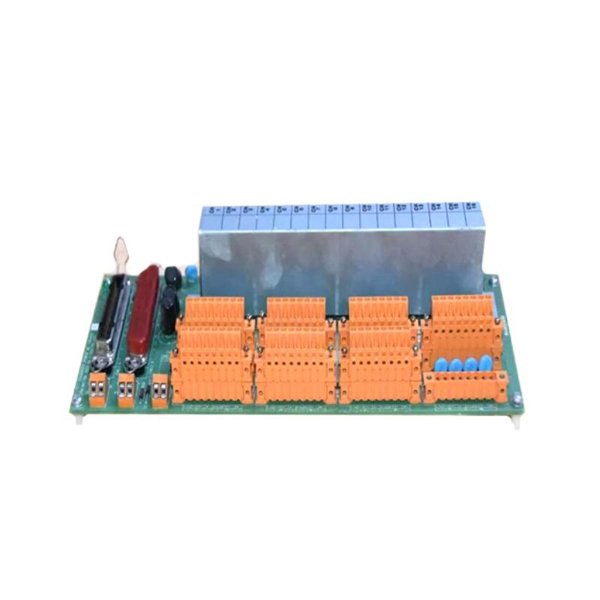

The Honeywell MC-TAIH22 80366195-150 High-Level Analog Input Module is a precision instrument designed to process high-level analog signals within industrial automation and control systems. This module is essential for acquiring and conditioning signals from field instruments such as pressure transmitters, temperature sensors, and flow meters, delivering accurate and reliable data to control systems.

Built for durability and performance, the MC-TAIH22 supports a wide range of input signals and is optimized to reduce noise and interference common in industrial environments. It offers excellent signal conditioning and fast response times, helping operators maintain tight control over process variables and ensuring efficient, safe plant operation.

Compatible with Honeywell’s Distributed Control Systems (DCS) such as Experion and ControlEdge, the MC-TAIH22 seamlessly integrates into existing control architectures, supporting real-time data acquisition and process control.

Product Parameters

Product Applications

The Honeywell MC-TAIH22 High-Level Analog Input Module finds application across a variety of industrial sectors, where precise and reliable analog input processing is critical. Typical applications include:

• Power Generation: Acquisition of process variables such as temperature, pressure, and flow from sensors to optimize plant performance and safety.

• Oil & Gas: Monitoring and control of pipeline pressures, refining processes, and drilling operations using analog sensor inputs.

• Chemical Manufacturing: Precise measurement of process parameters ensuring product quality and safety in chemical reactions and processing.

• Water Treatment Facilities: Input from sensors monitoring water quality parameters such as pH, conductivity, and turbidity for regulatory compliance.

• Manufacturing: Real-time monitoring of machine conditions and process variables to improve operational efficiency and predictive maintenance.

• HVAC Systems: Control and monitoring of environmental conditions through analog sensor signals for heating, ventilation, and air conditioning systems.

Product Advantages

1. Wide Input Compatibility – Supports multiple analog input types (0–20 mA, 4–20 mA, 0–10 V, 0–100 V), enabling flexible integration with a wide variety of sensors.

2. High Precision – Delivers accurate signal processing with advanced filtering and calibration techniques.

3. Robust Signal Conditioning – Effectively minimizes noise and interference, improving data quality and system reliability.

4. Compact Size – Dimensions allow easy installation in control cabinets with limited space.

5. Fast Response – Response time of 10 ms or less ensures timely data acquisition and process control.

6. Wide Operating Temperature Range – Suitable for diverse industrial environments with a range of -20 °C to +60 °C.

7. Simple Installation – Designed for DIN rail mounting, facilitating quick and easy setup.

8. Certified Compliance – Meets CE and UL standards for safety and performance.

9. EMI/RFI Resistance – Protection against electromagnetic and radio-frequency interference enhances operational reliability.

10. Seamless System Integration – Compatible with Honeywell DCS platforms for smooth integration and operation within control systems.

FAQs

Q1: What input signals does the MC-TAIH22 support?

A1: It supports 0–20 mA, 4–20 mA, 0–10 V, and 0–100 V analog input signals.

Q2: What power supply does this module require?

A2: The module operates on a 24V DC power supply.

Q3: What is the response time for this module?

A3: The response time is less than or equal to 10 milliseconds.

Q4: What are the dimensions and weight of the MC-TAIH22?

A4: The module measures 307.3 x 120.7 mm and weighs 0.3 kg.

Q5: Is this module suitable for industrial environments with electrical noise?

A5: Yes, it features EMI/RFI protection designed for industrial conditions.

Q6: How is the MC-TAIH22 mounted?

A6: It is designed for DIN rail mounting for straightforward installation.

Q7: Can it be integrated with Honeywell Distributed Control Systems?

A7: Yes, it is fully compatible with Honeywell DCS platforms such as Experion and ControlEdge.

Q8: What industries commonly use this module?

A8: Power generation, oil & gas, chemical processing, manufacturing, water treatment, and HVAC are typical industries.

Q9: Does the module include signal conditioning features?

A9: Yes, it includes filtering, calibration, and noise reduction.

Q10: Is the module certified for safety and quality standards?

A10: Yes, it complies with CE and UL certifications.
