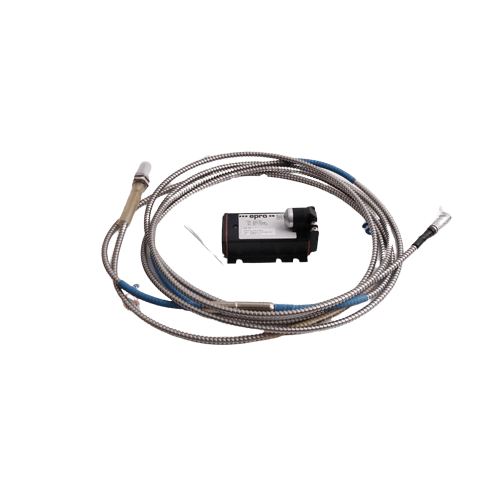

Emerson Epro CON021+PR6423/010-000-CN Eddy Current Sensor

Designers created this Emerson EPRO CON021+PR6423/010-000-CN 8mm Eddy Current Sensor for critical turbomachinery applications, such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans. It measures both radial and axial shaft dynamic displacement, position, eccentricity, and speed.

Key Performance Specifications

• Linear Measurement Range: 2 mm (80 mils)
• Initial Air Gap: 0.5 mm (20 mils)
• Incremental Scale Factor (ISF) ISO: 8 V/mm (203.2 mV/mil) ± 5% at a temperature range of 0 to 45°C (+32 to +113°F)
• Deviation from the best-fit straight line (DSL): ± 0.025 mm (± 1 mil) at a temperature range of 0 to 45°C (+32 to +113°F)

Measuring Target

• Minimum Shaft Diameter: 25 mm (0.79”)
• Target Material (Ferromagnetic Steel): 42CrMo4 (AISI/SAE 4140) Standard
• Other materials available upon request

Environmental and General Features

• Protection Class: IP66, IEC 60529
• Operating Temperature Range:
  • Sensor (including 1m Cable): -35 to +200°C (-31 to 392°F)
  • Cable & Connector: -35 to +150°C (-31 to 302°F)
• Material Composition:
  • Sensor Tip: PEEK (Polyether Ether Ketone)
  • Case: Stainless Steel
  • Cable: PTFE (Polytetrafluoroethylene)
  • Connector: Brass, nickel-plated

Weight

• Sensor (with 1m Cable): Approximately 100 grams (3.53 oz)
