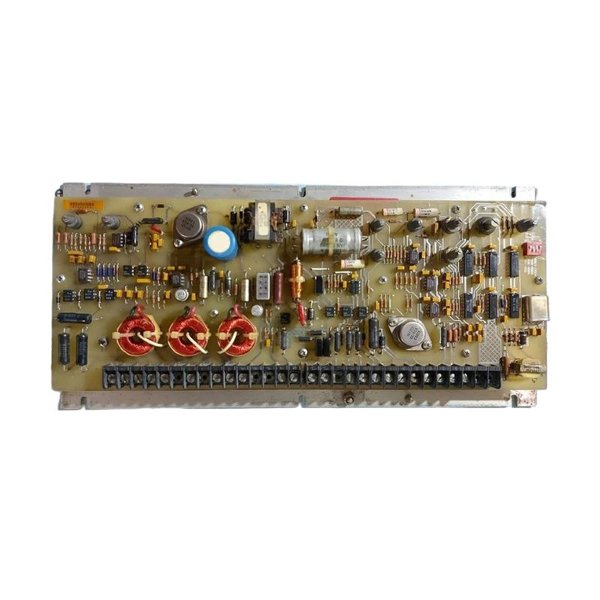

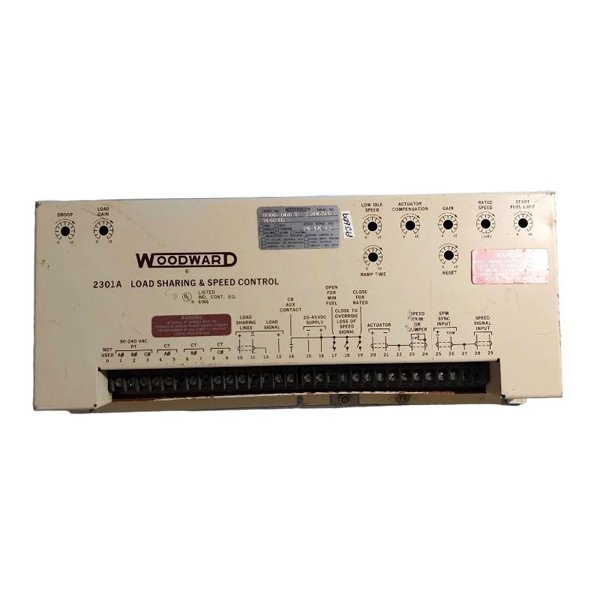

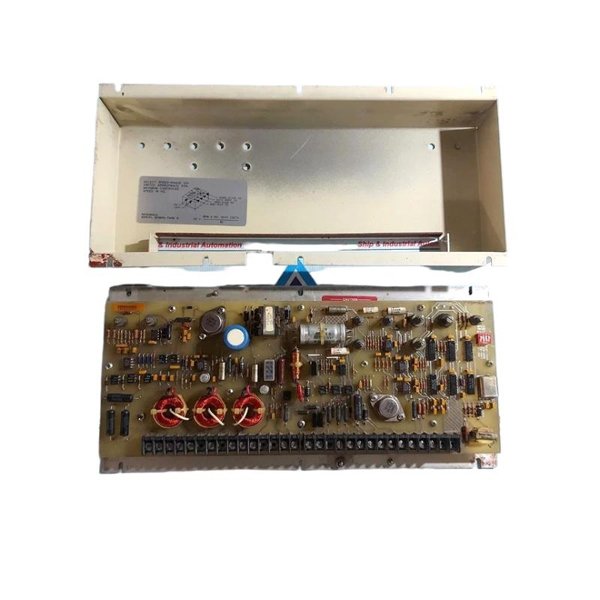

Woodward 9905-068 2301A Load Sharing and Speed Control

The Woodward 9905-068 2301A is an advanced load sharing and speed control unit designed to provide precise control over generator systems in various power generation applications. This product is typically used in parallel generator systems, ensuring efficient load distribution and maintaining stable speed control across multiple units. By maintaining proper load sharing, it helps optimize fuel consumption and reduces wear on the equipment.

Product Advantages

• Efficient Load Sharing: It ensures that load is shared equally across multiple generators, preventing overloading on any single unit.

• Enhanced Stability: The 2301A model provides precise speed control to maintain consistent output across multiple generators.

• Flexible Control Modes: Supports both droop and isochronous control, giving users more flexibility depending on their specific needs.

• Durable and Reliable: Designed for harsh industrial environments, ensuring longevity and stability.

• Ease of Integration: Easily integrates with existing generator sets, minimizing downtime during installation.

• User-Friendly Interface: The control system features an intuitive interface for seamless operation and monitoring.

Technical Specifications

Product Applications

• Power Generation Plants: Ideal for controlling multiple generators in parallel for optimal load sharing and speed control.

• Emergency Power Systems: Ensures reliable operation of backup power generators.

• Industrial Facilities: Suitable for critical infrastructure requiring stable power distribution.

• Marine Applications: Used in ships for controlling multiple generators running in parallel.

• Renewable Energy Systems: Applied in hybrid power systems involving both renewable and conventional generation sources.

FAQ

1. What is the primary function of the Woodward 9905-068 2301A?

The primary function is load sharing and speed control, enabling efficient parallel operation of multiple generators.

2. Can the 2301A be used in both isochronous and droop modes?

Yes, the Woodward 9905-068 2301A supports both isochronous and droop control modes.

3. What is the load sharing range of the 2301A?

The load sharing range is from 0% to 100%, allowing for precise load balancing across generators.

4. Does the 2301A support remote monitoring?

Yes, the unit supports remote monitoring via compatible communication protocols for advanced monitoring and control.

5. What is the voltage supply requirement for the 2301A?

The 2301A can operate on either 12 VDC or 24 VDC, depending on the configuration.

6. What is the recommended temperature range for operation?

The 2301A operates effectively within a temperature range of -40°C to +70°C.

7. How accurate is the speed control function?

The speed control accuracy is ±5%, ensuring stable and reliable operation.

8. Can the 2301A integrate with existing generator sets?

Yes, it is designed for easy integration with most generator sets, minimizing installation time.

9. What is the output signal type of the 2301A?

The unit provides a 4-20 mA output signal for load sharing and speed control.

10. Is the Woodward 2301A compliant with industry standards?

Yes, it is CE and UL certified, meeting the necessary safety and performance standards.
