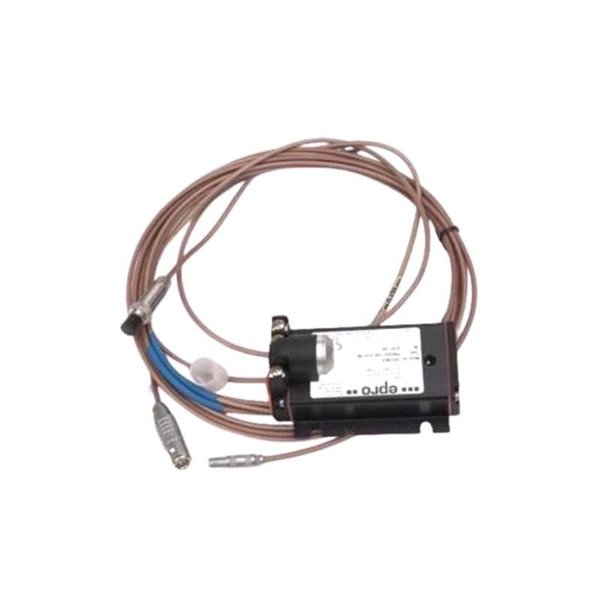

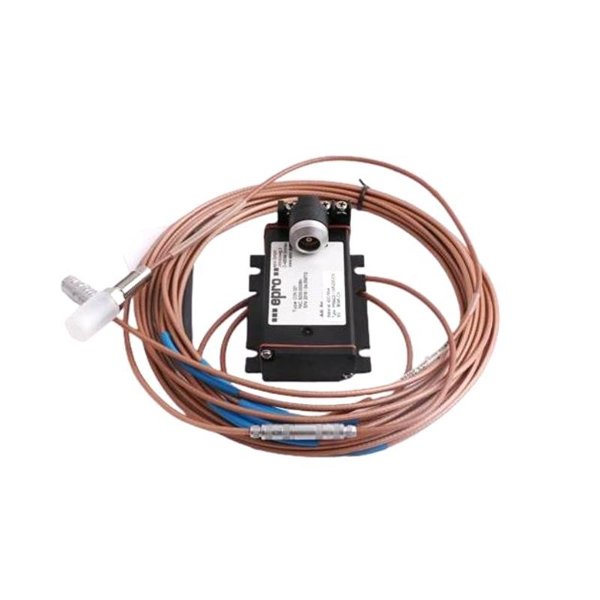

Epro PR6424/106-030 16mm Eddy Current Sensor

The Epro PR6424/106-030 is a high-precision eddy current sensor designed for measuring displacement, position, and proximity in industrial environments where extreme accuracy is essential. With its 16mm sensor head diameter, this sensor is ideal for detecting small movements and displacements in challenging applications such as rotating machinery, bearing health monitoring, and automation systems.

Utilizing the principle of eddy current measurement, the PR6424/106-030 generates a magnetic field that interacts with a conductive target, and the change in inductance is used to calculate the displacement or position of the target. The sensor offers outstanding performance even in the presence of environmental factors like temperature fluctuations, vibrations, and magnetic fields, making it reliable for harsh industrial environments.

The PR6424/106-030 is perfect for precise measurement applications in sectors such as automotive, aerospace, industrial automation, and process control.

Technical Specifications

Product Applications

The Epro PR6424/106-030 16mm Eddy Current Sensor is used in various industrial and automation applications that demand high-precision measurements:

• Rotating Machinery Monitoring: Essential for monitoring the displacement of rotating machinery such as motors, shafts, turbines, and fans, the sensor helps detect any misalignment or displacement that could lead to system failures.

• Bearings Health Monitoring: The sensor is ideal for detecting early signs of wear in bearings by measuring axial and radial displacement, thus preventing costly damage through predictive maintenance.

• Proximity Detection: The sensor is widely used in applications that require proximity detection to ensure safe operation and positioning in automated systems.

• Positioning in Robotics: The sensor helps in precise positioning of robotic arms and other components by measuring minute displacements with high accuracy.

• Process Control in Manufacturing: The PR6424/106-030 is used to ensure precise control of components in manufacturing lines, aiding in maintaining product quality and minimizing error rates in production processes.

Its versatility and robust design make it indispensable for numerous applications in industries requiring high-precision measurement.

Product Advantages

• Exceptional Precision: With a resolution of 0.1 µm and an accuracy of ±0.1% of full scale, the PR6424/106-030 offers unmatched measurement precision, suitable for the most demanding applications.

• Wide Measurement Range: The sensor measures displacements within the 0 to 10 mm range, offering flexibility for various measurement needs.

• Durable Construction: Encased in stainless steel, the sensor is built to withstand harsh environments, ensuring reliable operation in tough industrial settings.

• Versatile Output Options: With both analog and digital output options, the PR6424/106-030 can be easily integrated into different industrial control and monitoring systems.

• Wide Operating Temperature Range: The sensor performs reliably in environments with temperatures ranging from -20°C to 85°C, making it suitable for both high and low-temperature conditions.

• Immune to External Factors: The sensor’s operation is unaffected by external vibrations, magnetic fields, or temperature fluctuations, ensuring highly reliable measurements in challenging environments.

FAQ

1. What is the measurement range of the Epro PR6424/106-030 sensor?

The Epro PR6424/106-030 sensor has a measurement range of 0 to 10 mm, providing versatility for various precision measurement applications.

2. What output types does the PR6424/106-030 sensor support?

The sensor supports both analog and digital outputs, offering flexibility for different industrial systems.

3. What is the resolution of the PR6424/106-030 sensor?

The sensor offers a resolution of 0.1 µm, enabling highly precise displacement measurements.

4. What is the accuracy of the PR6424/106-030 sensor?

The PR6424/106-030 sensor has an accuracy of ±0.1% of full scale, ensuring reliable and consistent measurements.

5. What is the operating temperature range for the PR6424/106-030 sensor?

The sensor operates in a temperature range of -20°C to 85°C, making it suitable for a variety of industrial environments.

6. What is the housing material of the PR6424/106-030 sensor?

The sensor is housed in stainless steel, providing durability and protection in demanding industrial environments.

7. How does the PR6424/106-030 sensor measure displacement?

The sensor works by generating a magnetic field and detecting changes in inductance caused by the movement of a conductive target, allowing for precise displacement measurements.

8. What is the power supply requirement for the PR6424/106-030 sensor?

The sensor requires a power supply of 15-30 VDC, which is typical for industrial sensors.

9. In which applications is the PR6424/106-030 sensor used?

The sensor is used in applications such as rotating machinery monitoring, bearing health monitoring, proximity detection, robotics, and manufacturing process control.

10. What connection type does the PR6424/106-030 sensor use?

The sensor uses an M12 connector, allowing for easy integration with industrial control systems.
