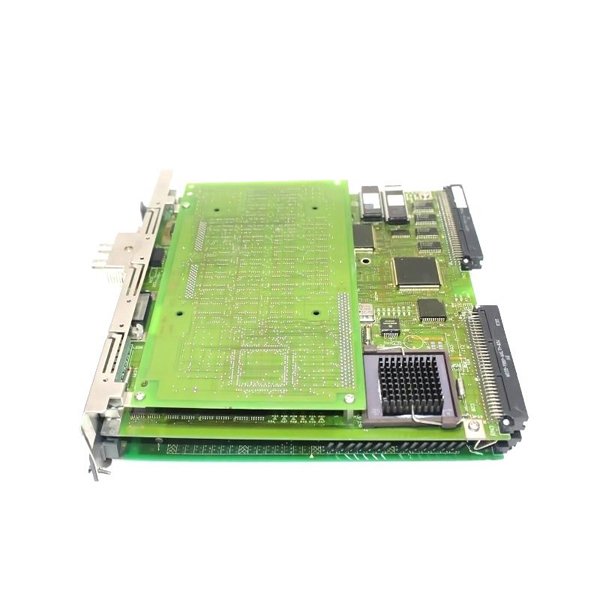

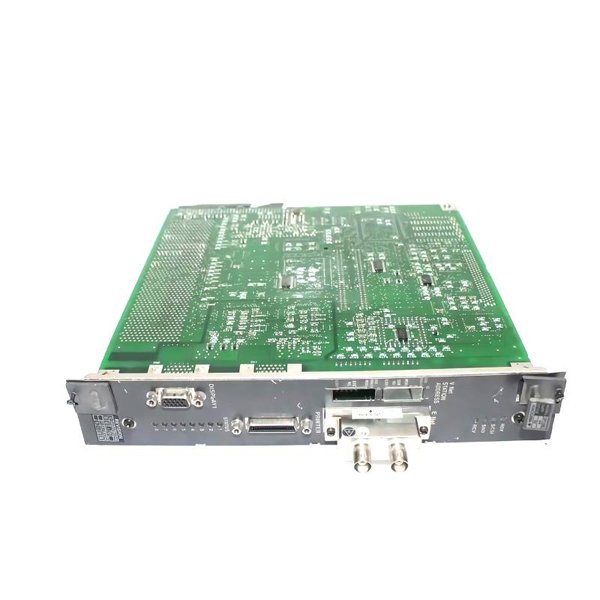

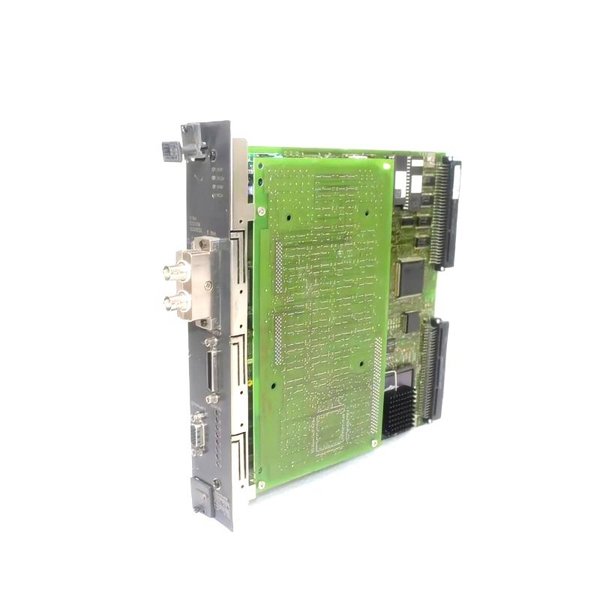

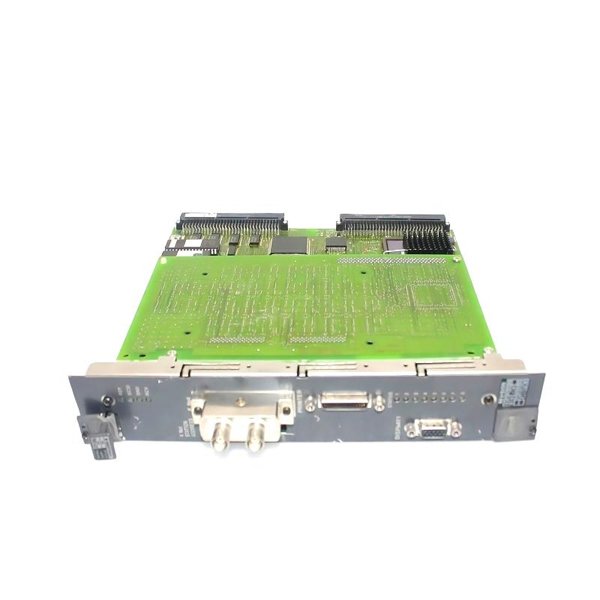

Yokogawa CP133E-64 S3 CPU Module With Ethernet Interface

The Yokogawa CP133E-64 S3 is a high-performance CPU module with Ethernet interface designed for integration into modular control systems, such as Yokogawa’s STARDOM and FA-M3 platforms. Known for its robust processing capabilities and network connectivity, this CPU module provides seamless communication between distributed control elements, making it ideal for modern industrial automation systems.

Equipped with a powerful processor, onboard memory, and multiple communication ports (including Ethernet), the CP133E-64 S3 ensures fast, reliable, and deterministic execution of control logic. It’s built to handle complex control strategies, high-speed I/O processing, and multi-protocol communication, offering users flexibility, scalability, and operational resilience.

Product Specifications

Product Applications

The CP133E-64 S3 is suitable for use in a wide range of industrial environments where high-performance programmable logic and communication are essential. Common applications include:

• Remote Terminal Units (RTUs) in oil and gas pipelines

• Water treatment facilities for monitoring and control of pumps, valves, and chemical dosing

• Distributed Energy Resource Management Systems (DERMS)

• Manufacturing execution systems (MES) for batch and continuous processes

• Smart grid control units and renewable energy plants

• Building automation systems requiring distributed and reliable control logic

Product Advantages

• High-Speed Processing: Optimized for fast execution of control logic and I/O handling.

• Integrated Ethernet Connectivity: Provides seamless integration into modern industrial networks.

• Compact Form Factor: Fits into space-constrained panels without compromising performance.

• Flexible Protocol Support: Ensures easy interfacing with a variety of devices and systems.

• Battery Backup Memory: Prevents data loss during power outages or maintenance periods.

• Modular Architecture: Allows easy expansion with other Yokogawa modules.

• Industrial Durability: Designed to withstand harsh field environments.

• Standards Compliance: Meets global safety, EMC, and environmental standards.

• Remote Monitoring Capability: Enables remote diagnostics and system status monitoring.

• Low Power Consumption: Reduces operational costs and improves energy efficiency.

Frequently Asked Questions (FAQ)

1. What systems is the CP133E-64 S3 compatible with?

   It is compatible with Yokogawa’s STARDOM and FA-M3 series platforms.

2. Does the module support Ethernet communication?

   Yes, it comes with a 10/100Base-TX Ethernet port for high-speed communication.

3. Can it be used in outdoor or hazardous areas?

   While the module is rugged, it must be housed in an appropriate enclosure for outdoor/hazardous use.

4. What is the onboard memory capacity?

   The module typically includes 2–4 MB Flash memory and up to 2 MB SRAM.

5. Does the module support Modbus?

   Yes, it supports both Modbus TCP and RTU, among other protocols.

6. Is the CP133E-64 S3 programmable?

   Yes, it supports ladder logic and structured text programming via Yokogawa software.

7. What programming tools are used?

   Yokogawa’s VDS, FAST/TOOLS, or engineering tools like STARDOM Workbench.

8. How is the CPU module mounted?

   It is mounted on a DIN rail or connected to a modular base unit.

9. Does it include diagnostic features?

   Yes, it provides LED indicators and supports software diagnostics for monitoring health.

10. What is its typical service life?

    Designed for 10+ years of operation under normal industrial conditions.
