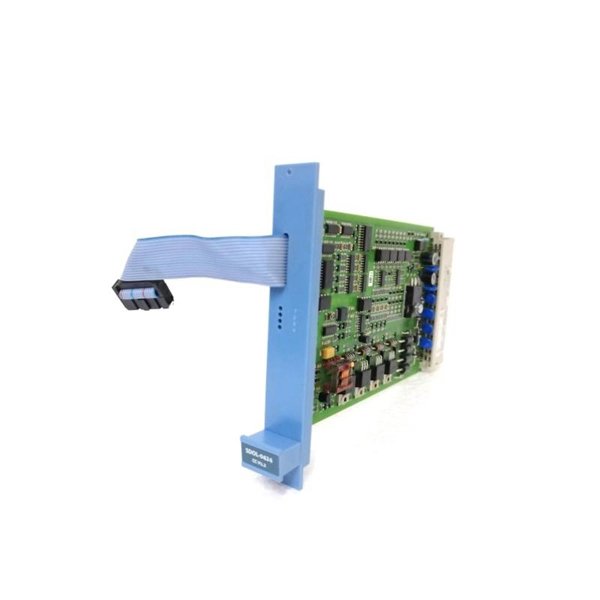

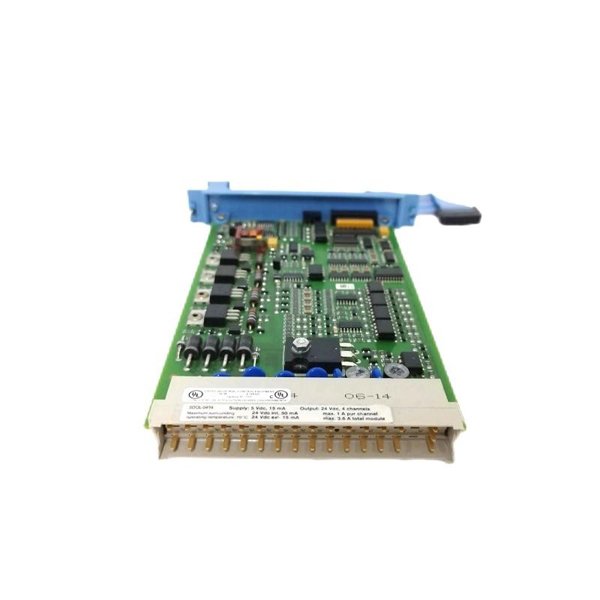

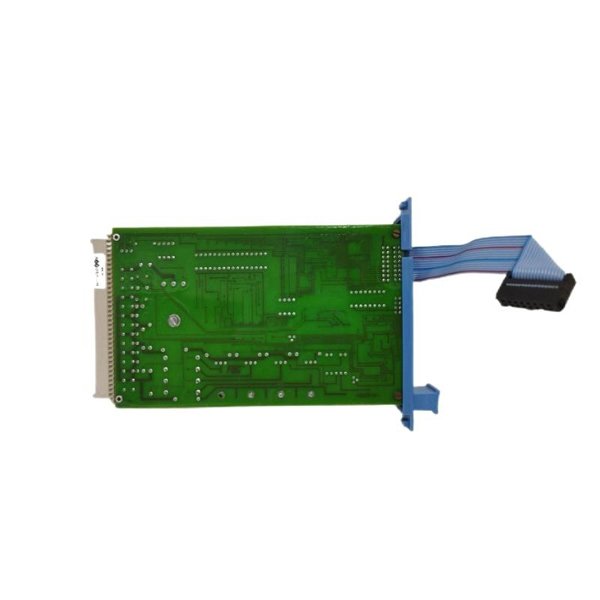

Honeywell FC-TSDOL-0424C Safe Digital Output Module

The Honeywell FC-TSDOL-0424C is a 4-channel Safe Digital Output Field Termination Assembly (FTA) designed for industrial automation systems requiring high reliability and safety. Operating at 24 VDC with current-limited outputs, this module ensures precise and fail-safe control of actuators, solenoids, and other field devices. Its robust construction and compact design make it suitable for integration into various Distributed Control Systems (DCS), including Honeywell’s Experion PKS and TDC 3000 platforms.

Product Specifications

Product Applications

The FC-TSDOL-0424C module is utilized in various industrial applications where safe and reliable digital output control is critical:

• Process Automation: Controlling valves, motors, and actuators in chemical, oil & gas, and pharmaceutical industries.

• Safety Systems: Implementing emergency shutdown procedures and safety interlocks.

• Power Generation: Managing auxiliary systems in power plants.

• Manufacturing: Operating machinery and equipment in automated production lines.

• Water Treatment: Controlling pumps and valves in water and wastewater facilities.

Product Advantages

• Fail-Safe Operation: Ensures safe shutdown in case of system failures.

• High Reliability: Designed for continuous operation in harsh industrial environments.

• Compact Design: Saves space in control panels.

• Easy Integration: Compatible with Honeywell DCS platforms and standard industrial protocols.

• Current Limiting: Protects connected devices from overcurrent conditions.

• Robust Construction: Withstands temperature extremes and high humidity.

FAQ

1. What is the primary function of the FC-TSDOL-0424C module?

   It provides four channels of safe digital output at 24 VDC, with current limiting for controlling field devices.

2. Is the module compatible with Honeywell’s Experion PKS system?

   Yes, it is designed for seamless integration with Experion PKS and other Honeywell DCS platforms.

3. Can the module be mounted on a DIN rail?

   Yes, it supports both DIN rail and panel mounting options.

4. What is the maximum current output per channel?

   Each channel can handle up to 1.5 A with current limiting to protect connected devices.

5. Is the module suitable for use in high-temperature environments?

   Yes, it operates reliably in temperatures ranging from -40°C to +70°C.

6. Does the module have any certifications?

   It is certified for CE, UL, and RoHS compliance.

7. What is the weight of the module?

   The module weighs 0.56 kg.

8. Can the module be used in safety-critical applications?

   Yes, it is designed for fail-safe operations, making it suitable for safety-critical systems.

9. Is the module available with a warranty?

   We provide one year warranty.

10. Where is the module manufactured?

    The FC-TSDOL-0424C is manufactured in the USA.
