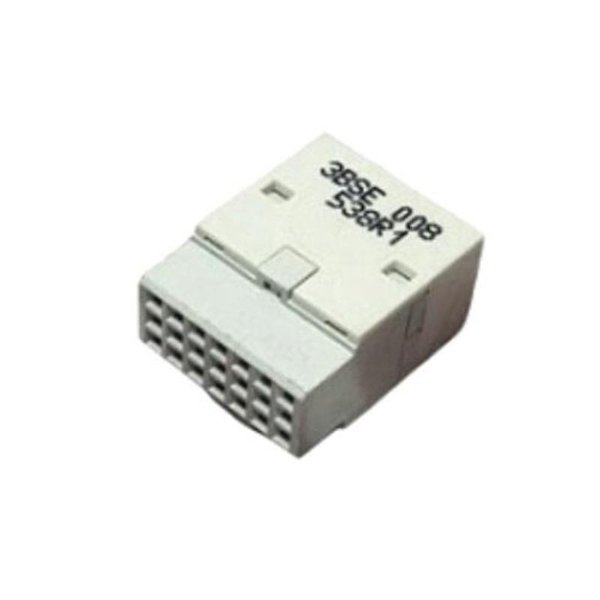

ABB TB807 3BSE008538R1 Modular bus terminator
Manufacturer:ABB
Product Number:TB807 3BSE008538R1
Condition:Modular bus terminator
Origin:Sweden
Dimensions:13 x 19 x 17 mm
Weight:0.01 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB TB807 3BSE008538R1 is a high-performance terminal unit designed for industrial automation and control systems. It is part of ABB’s renowned series of terminal blocks, known for reliability, durability, and ease of installation. This product is widely used in process control, power distribution, and modular system integrations, offering a secure and efficient connection solution for electrical and signal wiring.
Product Specifications
The table below outlines the key technical parameters of the ABB TB807 3BSE008538R1:
| Parameter | Value |
|---|---|
| Model Number | TB807 3BSE008538R1 |
| Type | Terminal Block |
| Rated Voltage | 300V AC/DC |
| Rated Current | 10A |
| Wire Size | 0.2–4 mm² (AWG 24–12) |
| Contact Material | High-conductivity Copper Alloy |
| Insulation Material | Flame-retardant Polyamide (UL94 V0) |
| Operating Temperature | -40°C to +100°C |
| Mounting Type | DIN Rail Mounting |
| Dimensions | 13 x 19 x 17 mm |
| Weight | 0.01 kg |
| Certifications | UL, CE, IEC |
Applications
The ABB TB807 3BSE008538R1 is suitable for a wide range of industrial and commercial applications, including:
-
Process Automation: Used in PLCs, DCS, and SCADA systems for secure signal and power transmission.
-
Power Distribution: Ensures reliable connections in electrical panels and switchgear.
-
Machinery & Equipment: Provides robust wiring solutions for heavy machinery and control cabinets.
-
Building Automation: Facilitates structured cabling in HVAC, lighting, and security systems.
Product Advantages
-
High Reliability: Engineered for long-term performance in harsh environments.
-
Easy Installation: Tool-less or screw-type clamping for quick wiring.
-
Compact Design: Space-saving form factor ideal for dense control panels.
-
Safety Compliance: Meets international standards (UL, CE, IEC) for electrical safety.
-
Versatility: Compatible with a wide range of wire sizes and conductor types.
-
Durability: Resistant to vibration, heat, and chemical exposure.
Frequently Asked Questions (FAQ)
-
What is the maximum current rating of the TB807 3BSE008538R1?
The terminal block supports up to 10A continuous current.
-
Can this terminal block be used for both AC and DC applications?
Yes, it is rated for 300V AC/DC.
-
What wire sizes are compatible?
It accepts 0.2–4 mm² (AWG 24–12) wires.
-
Is the TB807 flame-retardant?
Yes, it uses UL94 V0-rated polyamide for fire resistance.
-
Does it require special tools for installation?
No, it supports tool-less or screw-type clamping for easy wiring.
-
What is the operating temperature range?
It functions reliably between -40°C to +100°C.
-
Is DIN rail mounting mandatory?
Yes, it is designed for DIN rail mounting (35mm standard).
-
Are these terminals reusable?
Yes, the clamping mechanism allows for multiple wire insertions.
-
Does ABB provide warranty coverage?
Standard warranty applies; check with ABB or authorized distributors.
-
Can the TB807 be used in outdoor environments?
Only with additional IP-rated enclosures, as it is not inherently waterproof.
