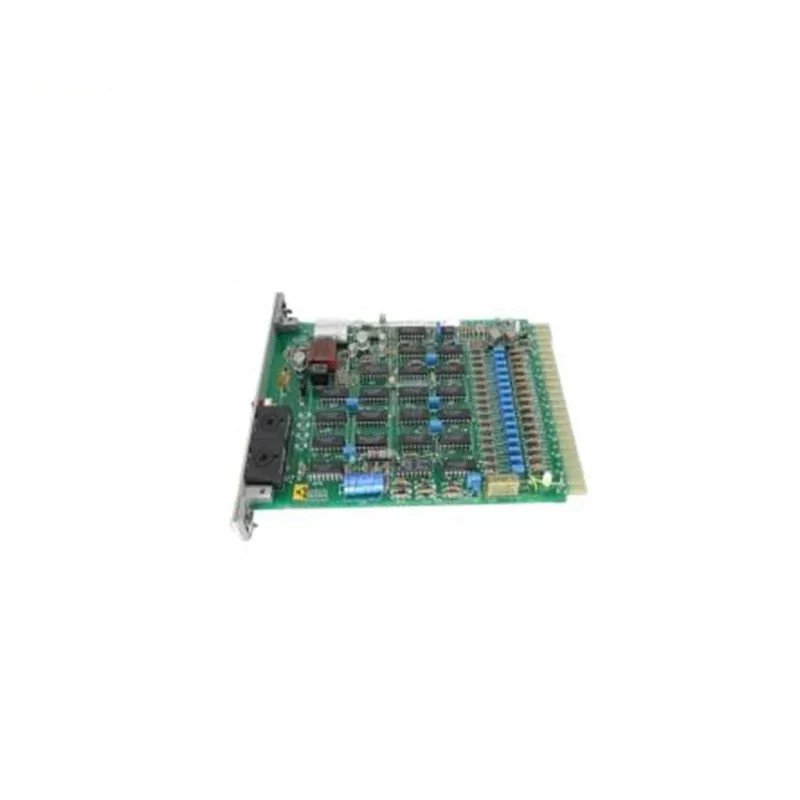

ABB DSPU-41-950 Digital Signal Processor

The ABB DSPU-41-950 is indeed a robust industrial control product, featuring advanced DSP technology tailored for demanding applications. Here’s a structured overview based on your description:

Features

• High-speed processing: Equipped with a 200 MHz 32-bit fixed-point DSP core for rapid computational capabilities.
• Flexible architecture: Designed with a flexible architecture to accommodate a wide range of industrial control and signal processing tasks.
• Powerful instruction set: Supports a powerful instruction set suitable for handling various data types and operations effectively.
• On-chip memory: Includes 256 KB of on-chip SRAM for code and data storage, along with 1 MB of off-chip SRAM and 2 MB of flash memory, reducing system latency and enhancing performance.
• Extensive peripherals: Offers comprehensive peripherals such as timers, counters, serial interfaces, and A/D converters to support diverse industrial applications.
• Software support: Backed by a suite of software tools including compilers, assemblers, and debuggers, facilitating efficient development and debugging processes.

Applications

1. Motion control: Ideal for precise control in servo drives and stepper motors.
2. Robotics: Capable of managing complex robotic systems efficiently.
3. Numerical control: Well-suited for CNC machine tools and other numerical control applications.
4. Image processing: Used in tasks like edge detection and pattern recognition within image processing applications.
5. Signal processing: Enables various signal processing tasks such as filtering, modulation, and demodulation.

Technical Specifications

• Processor: 32-bit fixed-point DSP core
• Clock speed: 200 MHz
• Memory:
  • On-chip SRAM: 256 KB
  • Off-chip SRAM: 1 MB
  • Flash memory: 2 MB
• Peripherals: Timers, counters, serial interfaces, A/D converters
