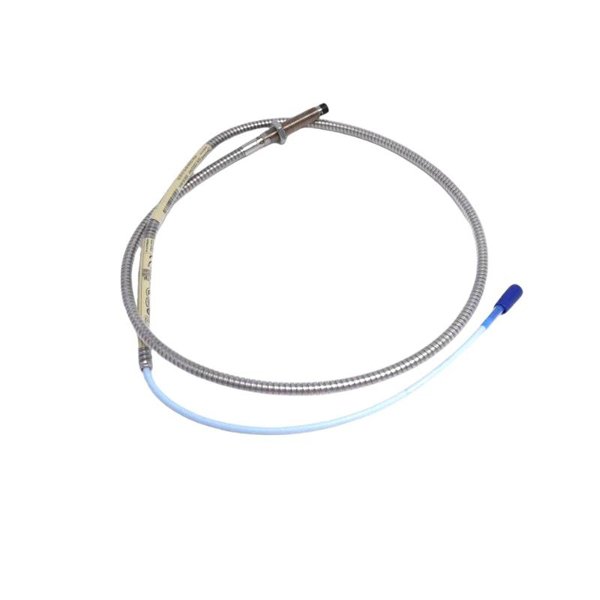

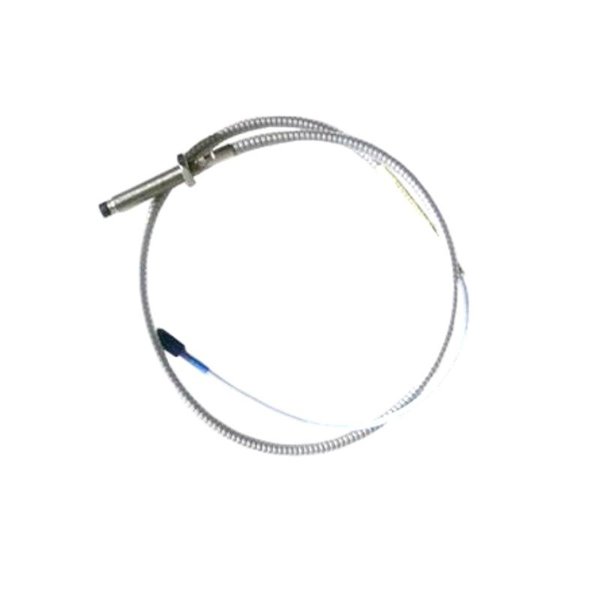

Bentley Nevada 330190-070-00-00 3300 XL ETR Extension Cable

The Bentley Nevada 330190-070-00-00 3300 XL ETR Extension Cable is a key component for extending the reach between Bentley Nevada’s 3300 XL vibration sensors and their corresponding monitoring systems. This extension cable is ideal for situations where the sensor needs to be positioned further away from the monitoring unit, enabling more flexible sensor placement in industrial environments.

The 330190-070-00-00 model features robust construction, offering high levels of durability and reliability. It supports high-quality signal transmission across long distances, ensuring accurate and uninterrupted data flow. This cable is designed for environments where minimizing signal interference and ensuring long-term performance is crucial. Compatible with Bentley Nevada’s 3300 XL vibration monitoring systems, the cable offers ease of integration and is suitable for various industrial applications.

Product Specifications

Product Applications

The 3300 XL ETR Extension Cable is widely used in industries that require machinery health monitoring over longer distances. Its key applications include:

• Power Generation: Facilitates sensor installation on rotating equipment, such as turbines and generators, located at a distance from the monitoring station.

• Oil & Gas: Allows sensors to be installed in hard-to-reach areas of oil rigs or refineries while maintaining reliable data transmission.

• Manufacturing: Enables efficient monitoring of large machines, conveyors, and other critical equipment by extending the reach between sensors and the monitoring unit.

• Mining: Ideal for machinery monitoring in large-scale mining operations, where sensors are often placed far from control stations.

• Pulp & Paper: Extends the monitoring capabilities of vibration sensors in large paper mills, ensuring the health of critical machinery.

Product Advantages

• Longer Reach: The 7.0-meter cable length ensures that sensors can be placed at more convenient or strategic locations without signal loss.

• Enhanced Durability: Built with durable materials and dual-layer shielding, the cable is designed to withstand the toughest industrial environments.

• Reliable Signal Integrity: Dual-layer shielding ensures that vibration data is transmitted with minimal interference, maintaining high data accuracy.

• High Voltage Capacity: Rated for up to 1000V, making it suitable for high-voltage applications in industrial settings.

• Temperature Resistance: With a broad operating temperature range of -40°C to +85°C, the cable performs well in both extreme cold and heat environments.

• Ease of Integration: Fully compatible with the 3300 XL series, making it easy to integrate into existing monitoring systems without additional setup or configuration.

FAQ

1. What type of connector does the 3300 XL ETR Extension Cable use?

   • The extension cable uses a bayonet-type connector, providing a secure and reliable connection between the sensor and monitoring equipment.

2. Is the 3300 XL ETR Extension Cable compatible with other Bentley Nevada products?

   • Yes, it is compatible with the 3300 XL series of vibration sensors, but compatibility with other Bentley Nevada models should be confirmed based on connector specifications.

3. What type of shielding is used in the 3300 XL ETR Extension Cable?

   • The cable features dual-layer shielding, which helps to reduce electromagnetic interference and ensures the integrity of the data being transmitted.

4. What is the maximum voltage rating for the extension cable?

   • The 3300 XL ETR Extension Cable is rated for a maximum voltage of 1000V, making it suitable for high-voltage industrial applications.

5. Can the cable be used in extreme temperatures?

   • Yes, the cable is rated for temperatures ranging from -40°C to +85°C, making it suitable for use in both cold and hot industrial environments.

6. How does the extension cable ensure minimal signal loss?

   • The coaxial construction and dual-layer shielding minimize signal loss and electromagnetic interference, ensuring that vibration data remains accurate over long distances.

7. Can this cable be used in hazardous environments?

   • While the cable is designed for robust environments, always confirm the suitability of the cable for hazardous locations by consulting the  safety guidelines.

8. How do I install the 3300 XL ETR Extension Cable?

   • The cable uses a bayonet-type connector, which makes installation straightforward. Simply attach the cable to the sensor and the monitoring unit, ensuring a secure connection.

9. Is the cable resistant to chemical exposure?

   • The cable is built to resist typical industrial environmental conditions, but for environments with specific chemical exposure, it is advised to check compatibility before use.

10. What maintenance is required for the extension cable?

    • Regularly check the connectors for corrosion or wear, and ensure the cable is not physically damaged. Keeping the cable away from high-stress areas helps maintain its integrity.
