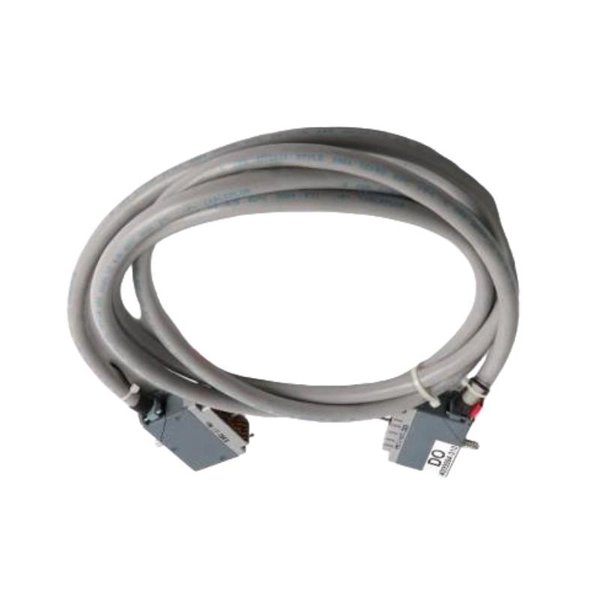

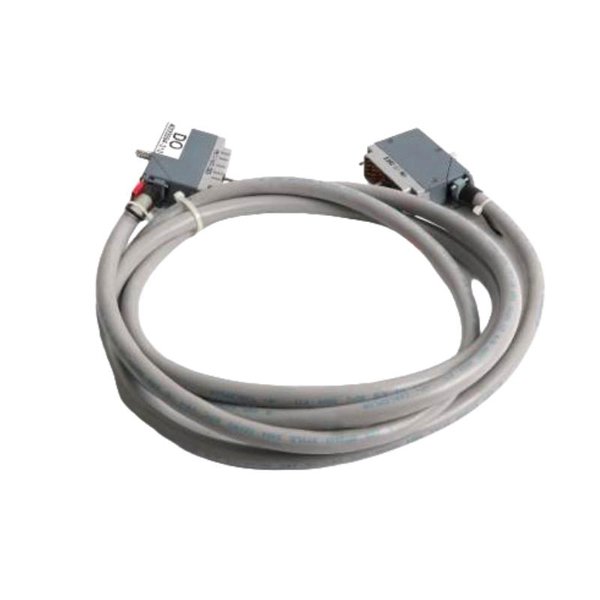

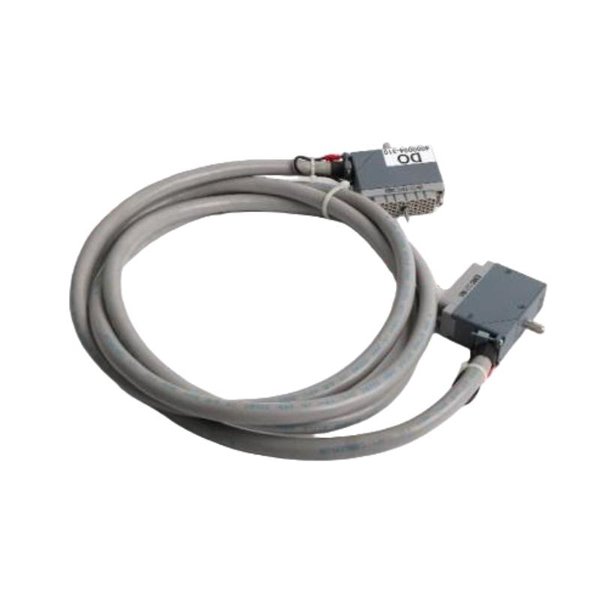

Triconex 4000094-310 External Output Cable Aassembly

The Triconex 4000094-310 External Output Cable Assembly is a high-reliability industrial cable designed to connect Triconex output modules to field devices in safety and control systems. Featuring robust shielding and high-quality connectors, it ensures accurate and noise-free signal transmission even in electrically noisy environments. Its pre-terminated design simplifies installation, reduces wiring errors, and ensures long-term stability in demanding industrial applications such as oil & gas, power generation, petrochemical, and manufacturing automation.

Product Parameters

Product Applications

• Safety Instrumented Systems (SIS) – Transfers emergency shutdown or trip signals.

• Process Automation – Connects control modules to actuators, alarms, and process indicators.

• Power Generation – Interfaces with turbine controls, breakers, and protection relays.

• Oil & Gas – Links control cabinets to emergency valves and monitoring systems.

• Manufacturing – Integrates with PLC-controlled machinery for automated control.

Product Advantages

• High Signal Integrity – Advanced EMI/RFI shielding ensures stable data transmission.

• Industrial Durability – Resistant to vibration, heat, and corrosive environments.

• Fast Installation – Pre-terminated connectors reduce setup time and minimize errors.

• Full Compatibility – Designed specifically for Triconex output modules.

• Low Maintenance – Long-lasting performance with minimal servicing required.

• Standards Compliance – Meets IEC, UL, and CE industrial safety requirements.

FAQ

1. Can the cable handle both analog and digital output signals?

   Yes, the 4000094-310 is engineered to support both analog and digital output signals without performance loss.

2. Does it support hot-swapping of connected modules?

   No, module hot-swapping is not recommended while the cable is active to avoid signal disruption.

3. What type of shielding does it use?

   It uses a high-density braided copper EMI/RFI shield for maximum interference protection.

4. Is it suitable for hazardous area installations?

   Yes, when used with appropriate certified equipment, it can be installed in hazardous zones.

5. What is the maximum safe operating temperature?

   It can safely operate between -20°C and +80°C.

6. Is it compatible with all Triconex output modules?

   It is compatible with most standard Triconex output modules, but verification with the specific module type is advised.

7. Does the cable require special grounding?

   Yes, the shield should be grounded at one end to reduce interference and avoid ground loops.

8. What is the maximum supported voltage?

   The cable is rated for up to 300V in industrial environments.

9. Can it be ordered in custom lengths?

   Yes, custom lengths are available based on project requirements.

10. Does it require regular signal integrity checks?

    While it is low-maintenance, periodic checks are recommended in high-interference environments.
