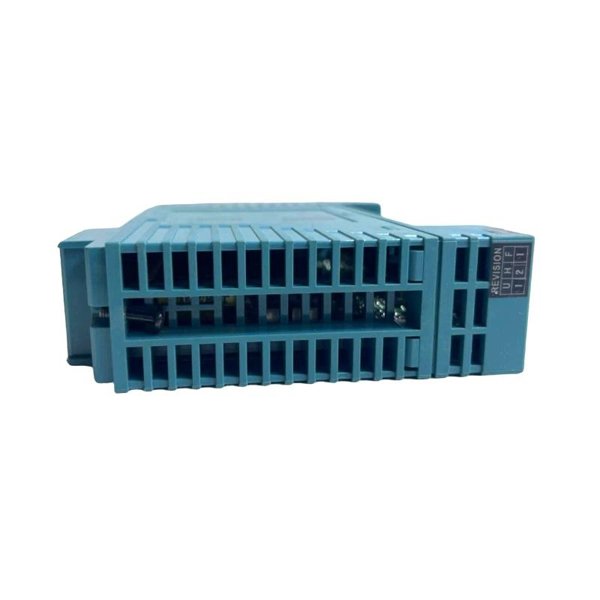

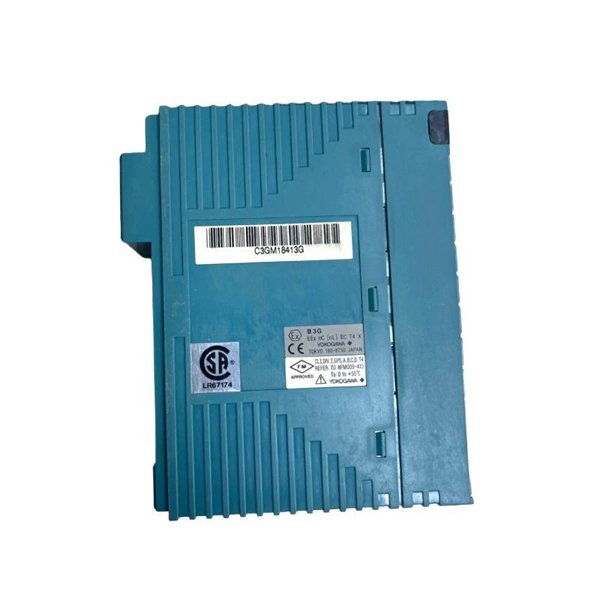

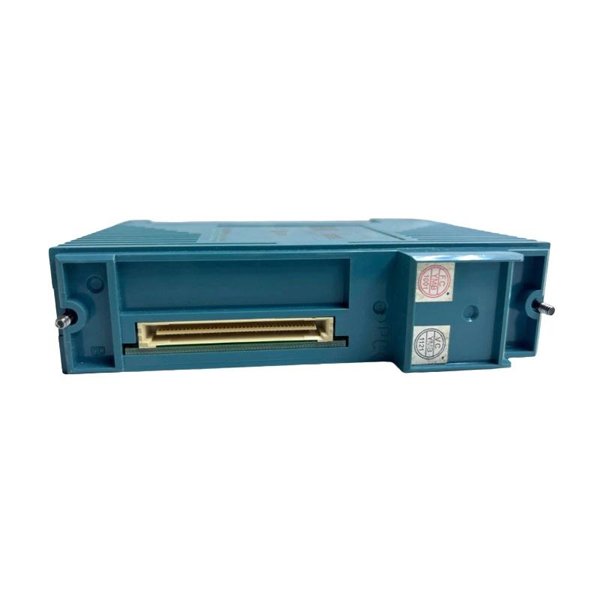

Yokogawa NFAI141-S00 Analog Input Module

The Yokogawa NFAI141-S00 Analog Input Module is an advanced industrial-grade component designed to deliver high-precision analog signal acquisition in process automation systems. Engineered for integration into Yokogawa’s high-reliability control platforms, this module provides accurate, stable, and noise-resistant measurement for a wide range of industrial applications. Its superior design ensures seamless operation even in harsh environments, making it an essential component in critical control systems across energy, chemical, oil & gas, and manufacturing industries.

The NFAI141-S00 module supports multiple signal types, enabling flexibility for different process requirements. Its robust isolation design minimizes interference, while its self-diagnostic capabilities enhance operational safety and reliability. This module is ideally suited for tasks requiring fast, accurate, and continuous data acquisition in real-time process control.

Product Parameters

Product Applications

The NFAI141-S00 module plays a critical role in process control and monitoring, providing accurate analog signal input for various industries. Its primary application areas include:

• Process Automation: Captures continuous measurements from sensors to ensure precise control of industrial processes.

• Oil & Gas: Monitors flow rates, pressures, and temperatures in pipelines and refineries for safe operation.

• Power Generation: Collects analog signals from turbines and generators to optimize energy output and efficiency.

• Chemical Processing: Maintains strict process control by monitoring temperature, pressure, and chemical reaction rates.

• Water Treatment: Gathers data from sensors for quality monitoring and automated control systems.

• Pharmaceutical Manufacturing: Supports compliance with stringent quality standards through precise environmental monitoring.

Product Advantages

• High Accuracy and Stability: Ensures precise measurement with 16-bit resolution, minimizing process errors.

• Comprehensive Signal Support: Compatible with voltage and current signals, allowing flexibility for diverse applications.

• Robust Electrical Isolation: Provides channel-to-channel isolation to reduce noise and prevent signal interference.

• Enhanced Reliability: Designed for industrial environments with strong resistance to electromagnetic interference (EMI).

• Integrated Diagnostics: Features built-in self-check mechanisms to detect faults quickly and improve system uptime.

• Easy Integration: Seamlessly integrates with Yokogawa control platforms, reducing engineering and setup time.

• Compact Design: Space-efficient module that fits into tight control panel configurations.

FAQ

1. What type of signals can the NFAI141-S00 module process?

   It supports both voltage and current signals, such as ±10 V for voltage input and 4–20 mA for current input.

2. How does the module maintain measurement accuracy under temperature variations?

   The module uses temperature-compensated circuitry to ensure accuracy even under fluctuating environmental conditions.

3. Does the module support simultaneous input signal acquisition?

   Yes, the module uses high-speed multiplexing and sampling to achieve near-simultaneous acquisition across multiple channels.

4. What isolation method does the NFAI141-S00 use?

   It utilizes opto-isolation for each channel to protect against electrical surges and reduce signal interference.

5. What is the default sampling rate of the analog input channels?

   The default sampling rate is approximately 5 milliseconds per channel, suitable for real-time control applications.

6. Can the module detect wiring errors or sensor failures?

   Yes, it includes diagnostic features to identify open circuits, short circuits, and abnormal input conditions.

7. What filtering techniques are implemented to minimize signal noise?

   The module uses digital filtering and low-pass filtering to reduce high-frequency noise and provide clean analog data.

8. How does the module handle redundant configurations?

   It supports redundant system architecture, allowing primary and backup modules for critical process reliability.

9. Is calibration required for the module, and how is it performed?

   Periodic calibration is recommended and can be performed via Yokogawa’s engineering tools without removing the module from the system.

10. What communication protocol does the module use to interface with the control system?

    It communicates via Yokogawa’s proprietary system bus, ensuring high-speed, secure, and stable data transmission.
