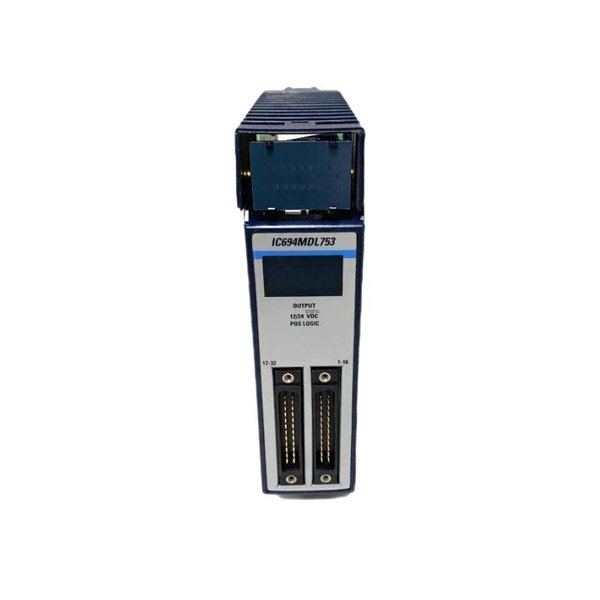

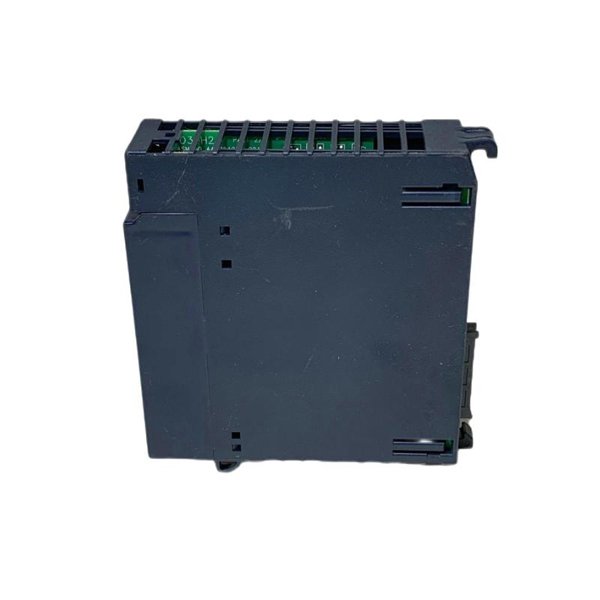

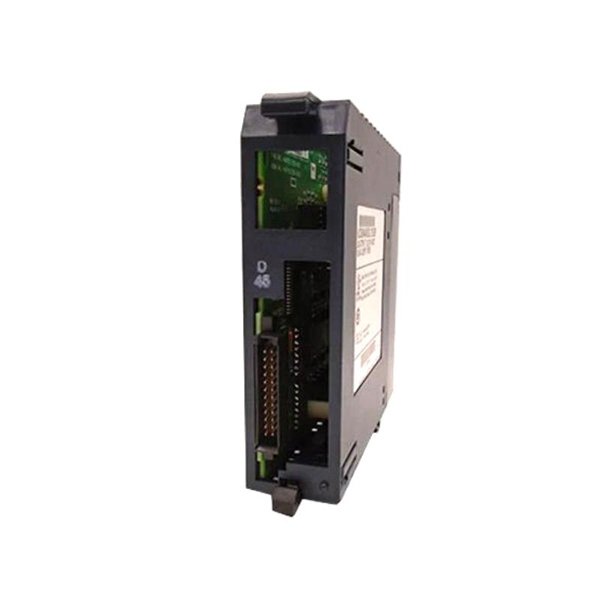

General Electric IC694MDL753A DC Voltage Output Module

The GE IC694MDL753A is a 32-point DC voltage output module designed for the PACSystems RX3i series. It delivers 12/24V DC positive logic outputs, organized into four isolated groups of eight points each. This configuration enhances flexibility and isolation in complex control systems, making it suitable for applications requiring reliable and efficient digital output control.​

Technical Specifications

Applications

The IC694MDL753A module is versatile and can be employed in various industrial scenarios, including:​

• Manufacturing automation systems​

• Process control applications​

• Material handling equipment​

• Packaging machinery​

• Energy management systems​

Advantages

The IC694MDL753A offers several benefits that enhance its suitability for industrial applications:​

• High Output Density: Provides 32 discrete outputs, reducing the need for multiple modules.​

• Isolated Output Groups: Four isolated groups of eight outputs each enhance system flexibility and safety.​

• Fast Response Time: Quick on/off response times (0.5 ms) ensure timely control actions.​

• Robust Design: Built to withstand industrial environments with appropriate certifications.​

• Ease of Integration: Compatible with PACSystems RX3i series, facilitating seamless integration into existing systems.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC694MDL753A module?

   It provides 32 discrete DC voltage output points for controlling various industrial devices.

2. How are the outputs organized in the module?

   The 32 outputs are arranged in four isolated groups of eight, each with its own common.

3. What type of logic does the module use?

   It utilizes positive logic (sourcing) for output control.

4. What is the maximum current per output point?

   Each point can handle up to 0.5 A, with a maximum of 4 A per group.

5. Does the module offer short circuit protection?

   Yes, it includes electronic short circuit protection to safeguard against overcurrent conditions.

6. Can the module be mounted on a DIN rail?

   Yes, it supports both panel and DIN rail mounting options.

7. What are the dimensions and weight of the module?

   It measures 34 x 145 x 140 mm and weighs 0.249 kg.

8. Is the module compatible with other GE Fanuc PLCs?

   It is specifically designed for the PACSystems RX3i series.

9. What certifications does the module have?

   It holds certifications including UL, UL HAZLOC, CE, ATEX Zone 2, ABS, BV, DNV, GL, KRS, and LR.

10. What happens to the outputs when the CPU is stopped?

    All 32 outputs are forced OFF when the CPU is stopped.
