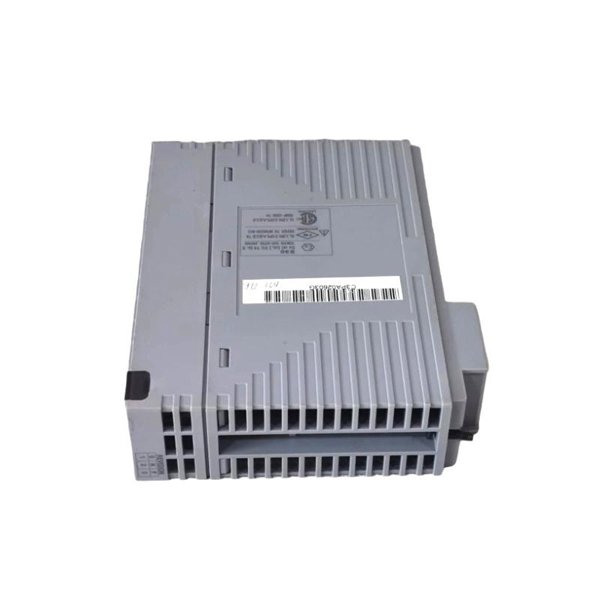

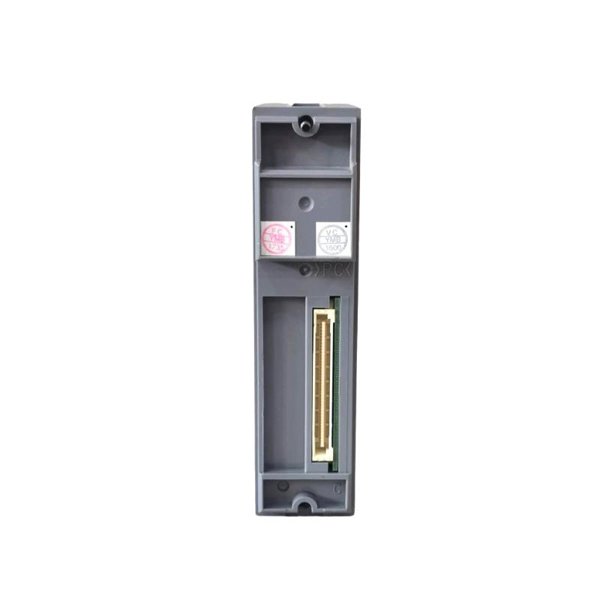

Yokogawa ASD533-S00 Digital Output Module

The Yokogawa ASD533-S00 Digital Output Module is a high-performance I/O module designed for Yokogawa DCS (Distributed Control System) platforms. It provides precise and reliable digital output signals to control field devices such as relays, valves, actuators, and indicator lights. By converting system commands into robust digital signals, this module ensures seamless operation of automation processes, enabling operators to maintain precise control over industrial machinery and process systems.

Engineered for industrial-grade reliability, the ASD533-S00 is widely used in chemical plants, power generation, oil and gas installations, and manufacturing facilities. Its design supports fast response times, secure electrical isolation, and easy integration with other Yokogawa modules, allowing for high-performance and safe control in complex industrial applications.

Product Specifications

Applications

The ASD533-S00 Digital Output Module is commonly applied in:

• Process Control Systems: Controlling valves, solenoids, and actuators in chemical and petrochemical plants.

• Power Generation Facilities: Operating breakers, alarms, and turbine auxiliary equipment.

• Oil & Gas Industry: Activating pumps, compressors, and field indicators.

• Water and Wastewater Treatment: Managing motor starters, pump sequences, and alarm indicators.

• Manufacturing Automation: Controlling conveyor belts, robotic actuators, and production equipment.

• Process Safety Systems: Driving critical alarms, interlocks, and emergency shutdown outputs.

Advantages

• High Channel Density: 16 output channels in a compact module for efficient rack use.

• Fast and Reliable Response: Response time ≤10 ms for real-time control of field devices.

• Electrical Isolation: Channel-to-channel and channel-to-system isolation enhances safety.

• LED Status Indicators: Each output channel has a dedicated LED for instant diagnostics.

• Seamless DCS Integration: Plug-and-play compatibility with Yokogawa DCS backplane systems.

• Robust Industrial Design: Reliable operation under high humidity and variable temperature conditions.

• Flexible Output Control: Supports both relay and DC switching outputs.

• Enhanced Safety: Suitable for use in control systems requiring strict safety protocols.

FAQ

1. How many output channels does the ASD533-S00 module support?

   It supports 16 independent digital output channels.

2. What types of devices can the module control?

   It can drive relays, solenoids, actuators, and indicator lights.

3. What is the nominal output voltage?

   The module provides 24 VDC nominal output per channel.

4. What is the maximum output current per channel?

   Each channel can deliver up to 0.5 A.

5. Does the module provide electrical isolation?

   Yes, it provides both channel-to-channel and channel-to-system isolation.

6. What is the response time of the module?

   The response time is ≤ 10 ms, suitable for real-time control.

7. Is the module compatible with other Yokogawa I/O modules?

   Yes, it integrates seamlessly into Yokogawa DCS backplane systems.

8. Does the module have visual indicators for troubleshooting?

   Yes, each output channel has a dedicated LED indicator.

9. What is the operating temperature range?

   The module operates from 0°C to +55°C.

10. Can this module be used for safety-critical applications?

    Yes, it can drive outputs for alarm, interlock, and emergency shutdown systems.
