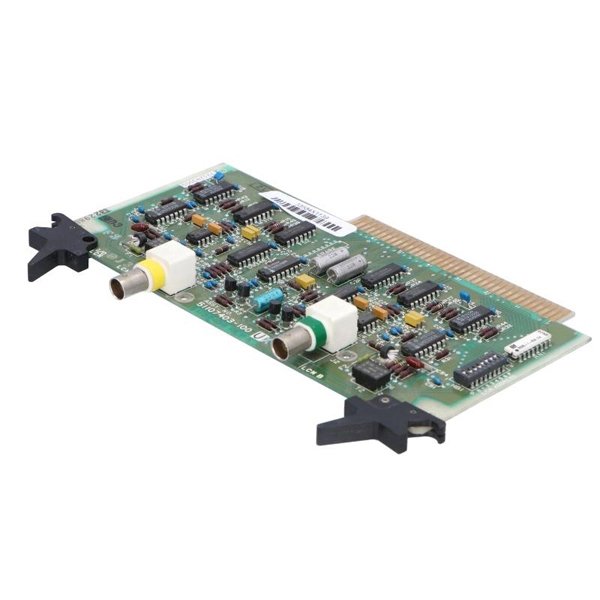

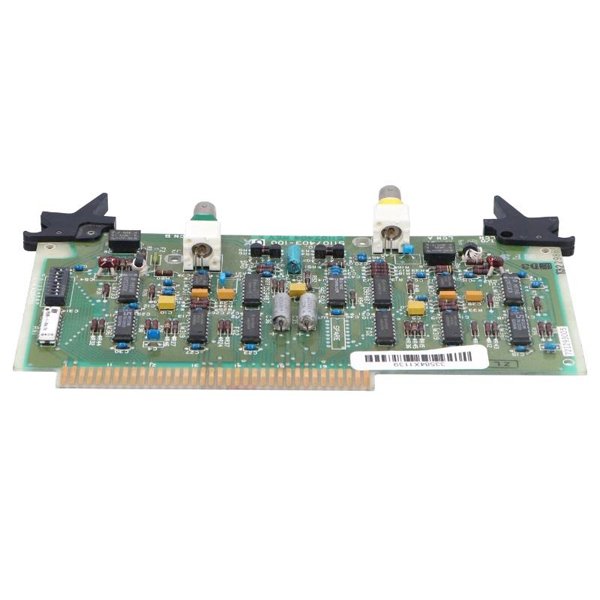

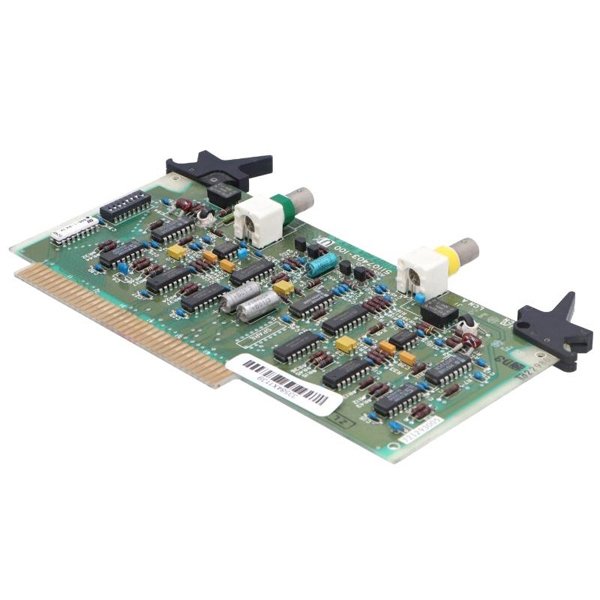

Honeywell 51107403-100 LCN I/O Control Board

The Honeywell 51107403-100 LCN I/O Control Board is a critical component designed for integration within Honeywell’s Local Control Network (LCN) systems. This control board serves as a reliable interface for input and output signals, enabling efficient communication and control across various industrial automation environments. It supports a wide range of field devices and ensures seamless data exchange between sensors, actuators, and the central control unit.

Built to meet the stringent demands of industrial applications, this I/O Control Board emphasizes robust performance, high reliability, and flexible configuration. It plays a vital role in the overall control system architecture, facilitating monitoring and operational commands essential for process automation, safety, and control optimization.

Product Specifications

Product Applications

• Process Automation: Integration in manufacturing plants for controlling and monitoring valves, motors, and sensors.

• Building Management Systems (BMS): Handling inputs and outputs for HVAC systems, lighting controls, and security systems.

• Energy Management: Used in power plants and energy distribution networks to automate control signals.

• Safety Systems: Interface for safety interlocks and alarm systems requiring reliable input/output management.

• Water and Wastewater Treatment: Control and monitoring of pumps, valves, and sensors to ensure smooth operation.

• Industrial Machinery: Embedded in machinery control panels for status monitoring and actuation commands.

Product Advantages

• High Compatibility: Fully compatible with Honeywell’s Local Control Network, allowing easy integration into existing systems.

• Robust Construction: Designed to withstand harsh industrial environments with wide temperature and humidity tolerance.

• Flexible I/O Support: Supports a combination of digital and analog signals as well as relay outputs, enabling diverse control strategies.

• Compact Design: Space-saving form factor with easy DIN rail or panel mounting options simplifies installation.

• Reliable Communication: Utilizes Honeywell’s proven LCN protocol ensuring secure and stable data transmission.

• Low Power Consumption: Optimized power usage suitable for extended operation in critical systems.

• Easy Maintenance: Modular design allows quick replacement and servicing with minimal downtime.

• Certified Quality: Complies with international safety and quality standards such as CE and UL.

Frequently Asked Questions (FAQ)

1. What types of input signals does the 51107403-100 support?

   It supports both digital and analog input signals, allowing integration with a wide variety of sensors.

2. Can this control board interface with third-party devices?

   While primarily designed for Honeywell LCN systems, it supports standard digital and analog signals that may allow limited third-party device compatibility.

3. What is the maximum current rating for the output relays?

   The relay outputs are typically rated for up to 5A at 30 V DC or 250 V AC depending on the specific configuration.

4. Does the board support communication redundancy?

   The standard model does not provide built-in redundancy but can be integrated into a redundant control system architecture at the network level.

5. How is the board powered and what happens during a power failure?

   It operates on a 24 V DC supply. In case of power failure, the outputs go to a predefined safe state as configured by the control system.

6. What diagnostic features are available on the board?

   It supports basic diagnostics such as input/output status monitoring and fault indication via the LCN network.

7. Is the firmware on the control board upgradable?

   Firmware updates can be performed through Honeywell’s proprietary tools connected to the LCN network.

8. How many input/output points are available on this board?

   The board typically supports up to 8 digital inputs and 4 relay outputs, but configuration may vary.

9. Can the control board handle analog signals with different ranges?

   Yes, it supports configurable analog input ranges such as 0-10 V or 4-20 mA.

10. What environmental conditions can the board withstand?

    It is designed to operate reliably in temperatures ranging from -20°C to +70°C and humidity up to 95% non-condensing.
