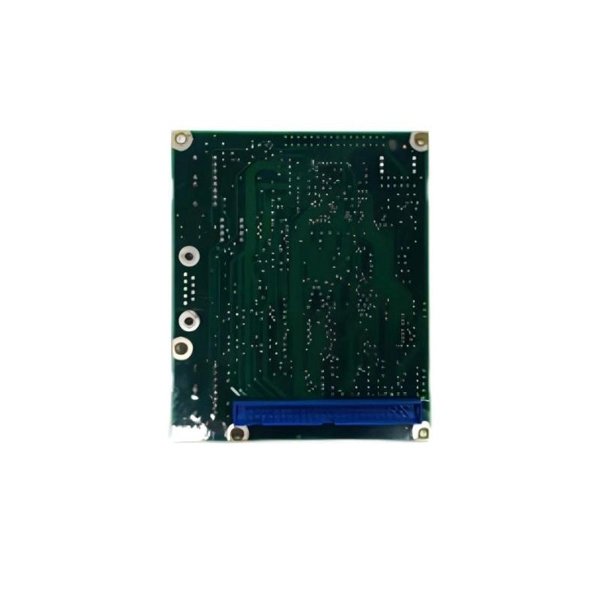

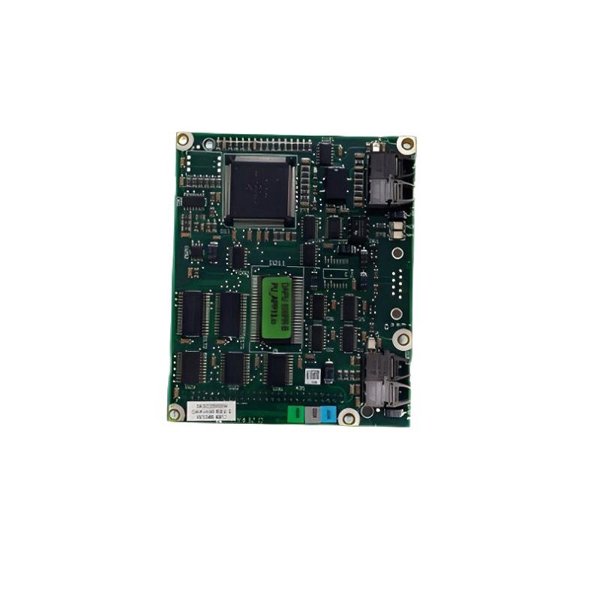

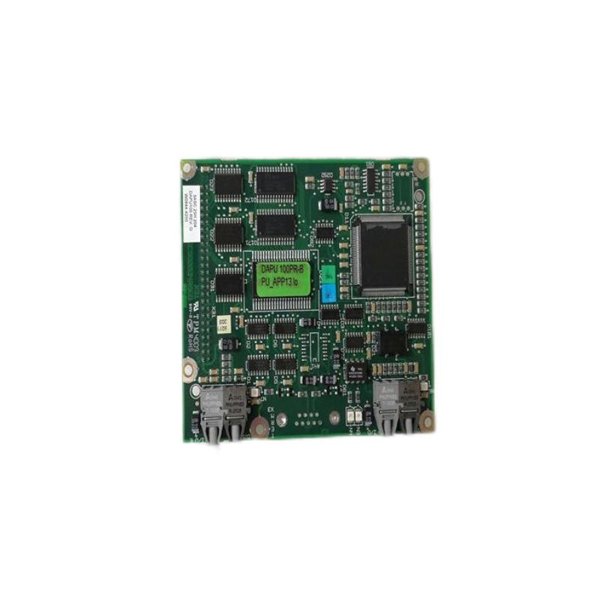

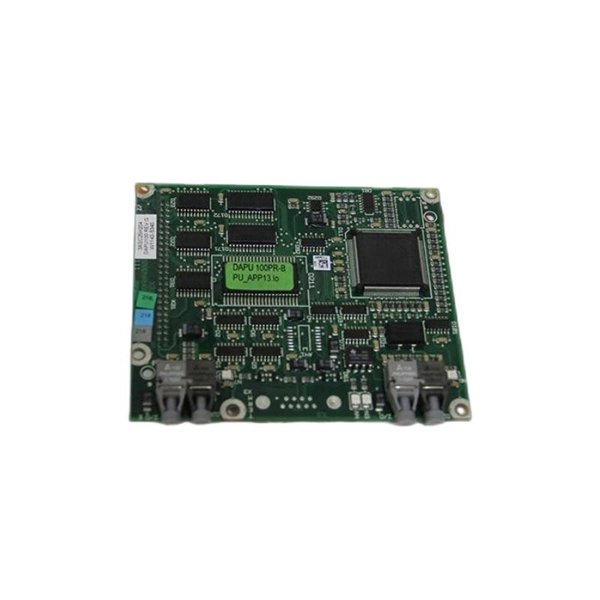

ABB DAPU100 3ASC25H204 I/O Control Board

The ABB DAPU100 3ASC25H204 is a reliable and high-performance I/O control board designed for industrial automation systems. It is used to facilitate communication between the central controller and field devices by converting signals from analog or digital inputs/outputs into a form that can be understood by the control system. The DAPU100 board serves as an essential component in automation systems that require precise control and reliable operation in demanding industrial environments.

This I/O control board is part of ABB’s larger portfolio of advanced automation solutions, ensuring smooth operation, optimal data transmission, and integration with other ABB automation components. It features excellent flexibility, with support for various types of inputs and outputs to accommodate a wide range of industrial processes.

Designed for ease of installation and maintenance, the DAPU100 provides a simple interface for operators and technicians to integrate the system into existing equipment, making it an ideal choice for upgrading or expanding automation setups. Its compact size and lightweight design further enhance its usability, making it adaptable to a wide variety of applications.

Product Specifications

Product Applications

The ABB DAPU100 3ASC25H204 I/O control board is highly versatile and suitable for a wide range of applications in industrial automation. Some of its key uses include:

• Industrial Automation Systems: The DAPU100 can be used to interface with a variety of industrial processes, such as controlling machinery, sensors, and actuators in factory automation systems.

• Process Control: The board plays a key role in controlling and monitoring industrial processes by facilitating the transfer of data between the control system and physical equipment like pumps, motors, and conveyors.

• Energy Management: The DAPU100 is ideal for monitoring and controlling energy usage in large systems such as power plants, manufacturing facilities, and utilities, helping optimize resource use and increase operational efficiency.

• Building Automation: It can also be used in building management systems to monitor and control HVAC, lighting, and security systems, ensuring optimal operation while minimizing energy consumption.

• Robotics and Motion Control: The DAPU100 is commonly used in robotics and motion control applications to provide accurate feedback and control to robotic arms, linear actuators, and other automated systems.

• Water and Wastewater Treatment: The board can be employed in managing water treatment plants, controlling pumps, valves, and other equipment critical to maintaining water quality and supply.

Product Advantages

• Flexibility in Input/Output: The DAPU100 I/O control board supports both digital and analog inputs/outputs, making it adaptable to a wide variety of industrial applications and processes.

• Compact and Lightweight: With a dimension of 165 x 100 x 20 mm and a weight of only 0.35 kg, the DAPU100 is designed for easy integration into existing control panels or systems without taking up excessive space.

• Wide Operating Temperature Range: The device operates effectively in extreme conditions, with a temperature range of -20°C to 70°C, ensuring reliable performance even in harsh industrial environments.

• Reliable Power Consumption: With a low power consumption of just 3 W, the DAPU100 is designed to be energy-efficient while providing high levels of performance.

• Robust and Durable: The IP20 protection class ensures that the I/O control board is protected against dust ingress, making it durable and reliable in environments where contamination is a concern.

• Seamless Communication: Featuring Modbus and EtherCAT communication protocols, the DAPU100 offers fast and reliable data transfer to ensure smooth integration into any automation system.

• Easy Mounting: The DIN rail mount design provides simple and flexible installation, enabling quick integration into existing setups and reducing downtime during system upgrades or replacements.

• Global Certifications: The product is CE, UL, and RoHS certified, meeting international standards for safety, environmental compliance, and quality assurance.

FAQ

1. What is the input and output type of the ABB DAPU100 3ASC25H204 I/O control board?

   • The DAPU100 supports both digital and analog inputs and outputs, offering flexibility for a wide range of industrial applications.

2. What is the power consumption of the DAPU100 I/O control board?

   • The power consumption is 3 W, making it energy-efficient for industrial use.

3. What are the dimensions of the DAPU100 board?

   • The dimensions of the board are 165 x 100 x 20 mm, ensuring it is compact and easy to integrate into existing control panels.

4. What is the weight of the DAPU100 I/O control board?

   • The board weighs 0.35 kg, making it lightweight and easy to handle during installation.

5. What is the operating temperature range of the DAPU100 I/O control board?

   • The operating temperature range is from -20°C to 70°C, which makes it suitable for use in a wide variety of industrial environments.

6. What types of communication interfaces are supported by the DAPU100?

   • The board supports Modbus and EtherCAT communication protocols, allowing seamless integration with other industrial automation systems.

7. Is the DAPU100 I/O control board suitable for use in outdoor environments?

   • While the DAPU100 is designed for use in industrial environments, it is recommended to house it in a protective enclosure when used outdoors to prevent exposure to harsh weather conditions.

8. What is the mounting method for the DAPU100 I/O control board?

   • The board features a DIN rail mount, making installation easy and secure in a variety of industrial settings.

9. What certifications does the DAPU100 I/O control board have?

   • The product is certified with CE, UL, and RoHS, ensuring compliance with international safety and environmental standards.

10. Can the DAPU100 be used in robotic control systems?

    • Yes, the DAPU100 can be used in robotics and motion control applications, providing accurate feedback and control for robotic arms, actuators, and other automated systems.
