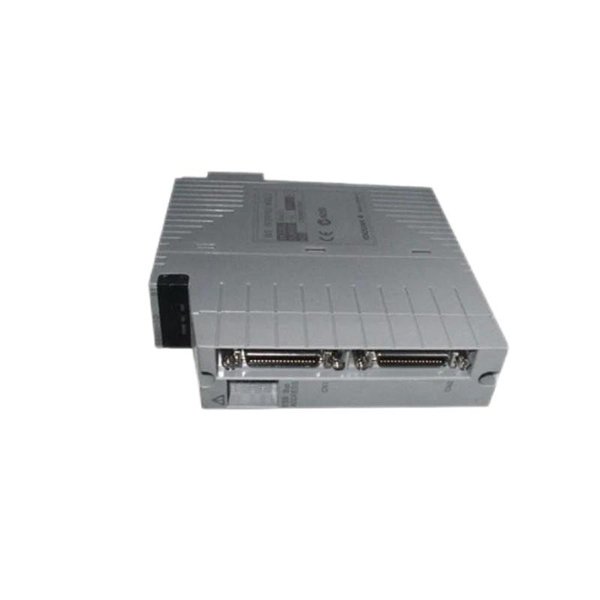

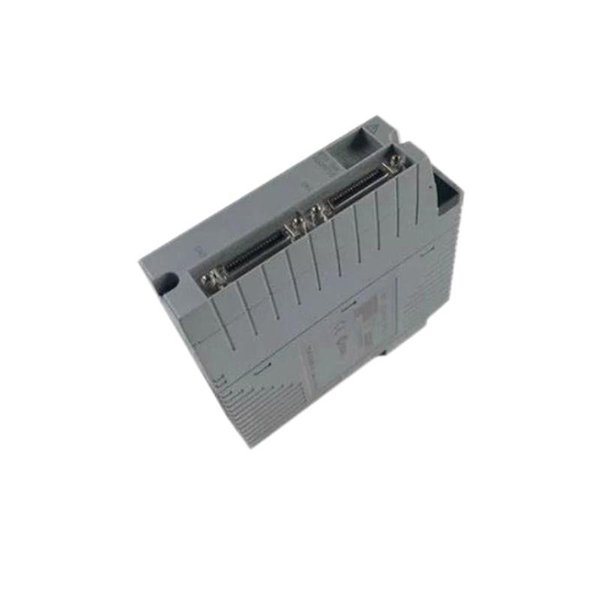

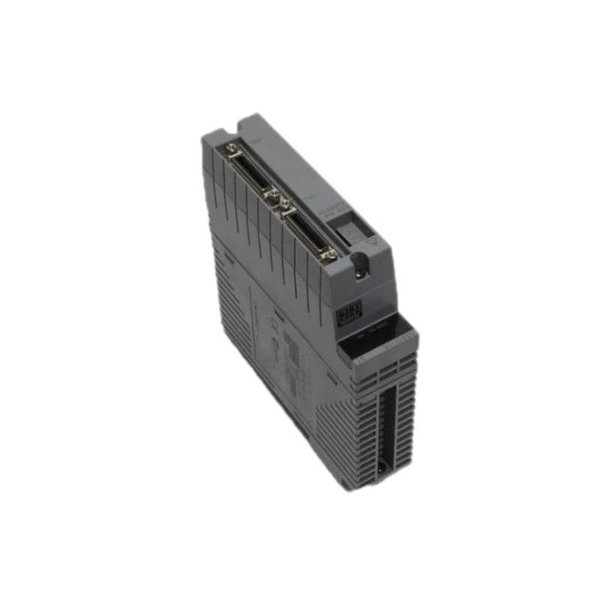

Yokogawa ANT401-5E Fiber Optical Bus Repeater Main Module

The Yokogawa ANT401-5E is a high-performance optical bus repeater main module designed to facilitate long-distance and noise-immune data transmission in industrial control networks. Developed by Yokogawa Electric Corporation, a global leader in industrial automation, the ANT401-5E acts as the central node in a fiber optic repeater system, extending communication distances and ensuring stable signal integrity in distributed control systems (DCS).

By converting electrical signals into optical signals and vice versa, this module plays a critical role in reducing electromagnetic interference (EMI) and enhancing the reliability of plant-wide automation networks. It is typically deployed in CENTUM VP and STARDOM systems, supporting real-time data exchange over optical fiber in hazardous and high-noise environments.

Product Parameters

Applications

• Long-distance optical data transmission in process control networks

• EMI-resistant communication in heavy industrial and power environments

• Integration in DCS architectures such as CENTUM VP for plant-wide control

• Field data acquisition over fiber in oil & gas, petrochemical, and water treatment sectors

• Interconnection of remote I/O nodes in large-scale automation systems

• High-integrity communication loops in safety instrumented systems (SIS)

Advantages

• Extended Communication Distance: Enables fiber-based signal relay over long ranges without signal loss

• Noise Immunity: Resistant to EMI and RFI, making it ideal for industrial use

• Compact Design: Slim form factor allows efficient space utilization in control panels

• Seamless Integration: Compatible with Yokogawa’s CENTUM and STARDOM systems

• Industrial Durability: Built to withstand harsh environmental conditions

• Minimal Maintenance: Stable performance with low lifecycle cost

• Redundancy Support: Suitable for redundant architectures to increase network reliability

• Secure Transmission: Optical fiber minimizes the risk of signal tapping and interference

Frequently Asked Questions (FAQ)

Q1: What is the primary role of the ANT401-5E?

A1: It functions as a main repeater module to relay and regenerate optical signals in Yokogawa control networks.

Q2: Which Yokogawa systems is the ANT401-5E compatible with?

A2: It is primarily used with CENTUM VP and STARDOM DCS systems.

Q3: Can this module be used in high EMI environments?

A3: Yes, its fiber optic transmission ensures immunity to electromagnetic interference.

Q4: Is the ANT401-5E hot-swappable?

A4: No, the module should be installed or replaced during system downtime.

Q5: Does the module support redundancy?

A5: Yes, it can be configured in redundant topologies for critical applications.

Q6: How is it mounted?

A6: It supports DIN rail or panel mounting configurations.

Q7: What is the power source for the ANT401-5E?

A7: Power is supplied from the corresponding base or system backplane.

Q8: Is special configuration software required?

A8: Configuration may be managed via the control system engineering tools integrated in CENTUM VP.

Q9: What are the typical use industries?

A9: Oil & gas, petrochemicals, water treatment, and power generation sectors.

Q10: How often does it require maintenance?

A10: Very low maintenance; designed for reliable, continuous operation.
