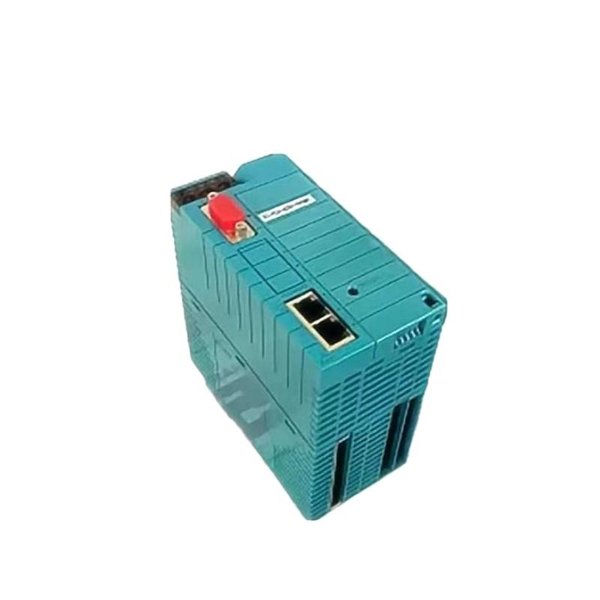

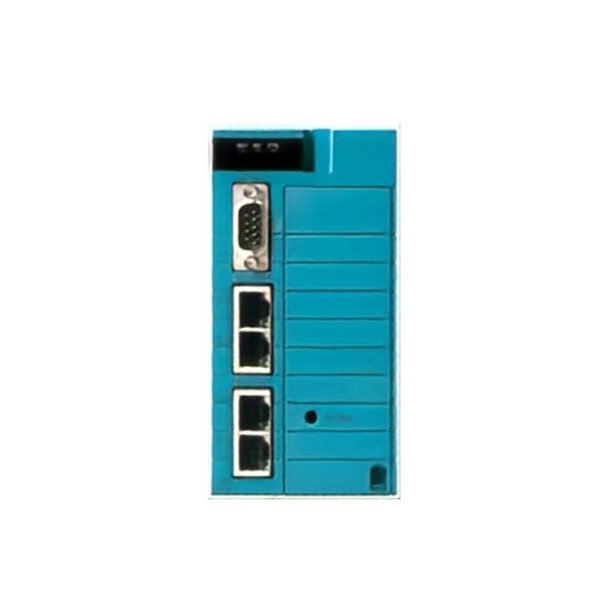

Yokogawa NFCP501-S00 Autonomous Controller CPU Module

The Yokogawa NFCP501-S00 Autonomous Controller CPU Module is a high-performance processing unit designed for the CENTUM VP and CENTUM CS 3000 series distributed control systems. This module acts as the central brain of the control system, handling complex control strategies, data acquisition, and system communication to deliver reliable and continuous process automation.

Built with industrial-grade components, the NFCP501-S00 ensures exceptional reliability and robustness in demanding environments. It supports multi-core processing capabilities that enhance system throughput and responsiveness, making it suitable for large-scale, mission-critical industrial applications. The module’s modular design enables seamless scalability and easy maintenance, helping plants improve operational efficiency and reduce downtime.

Product Specifications

Applications

The NFCP501-S00 CPU Module is widely used across various industries for mission-critical control and monitoring tasks, including:

• Power Generation: Controls and monitors turbines, boilers, and power distribution systems.

• Petrochemical and Refining: Provides precise process control for refining operations and safety monitoring.

• Chemical Manufacturing: Maintains exact conditions in chemical reactions and batch processing.

• Pharmaceutical Production: Enables stringent process control for compliant, high-quality production.

• Water and Wastewater Treatment: Automates filtration, chemical dosing, and water distribution systems.

• Metallurgical Industry: Controls smelting, casting, and rolling processes with precision.

• Food and Beverage: Ensures consistent product quality through precise temperature and flow control.

Advantages

• Robust Performance: Multi-core CPU delivers fast and reliable control, supporting complex control algorithms.

• High Reliability: Designed for continuous 24/7 operation with robust fault tolerance.

• Scalable Architecture: Modular design allows easy expansion and system upgrades.

• Redundancy Capability: Supports redundant CPU configurations for enhanced system uptime.

• Wide Compatibility: Fully integrates with Yokogawa’s CENTUM VP and CS 3000 systems.

• Compact Design: Fits standard control racks, optimizing space usage.

• Advanced Communication: Supports multiple communication protocols including Ethernet and redundant buses.

• Energy Efficient: Designed to minimize power consumption without sacrificing performance.

• User-Friendly Maintenance: Facilitates quick module replacement and system diagnostics.

• Comprehensive Diagnostics: Built-in monitoring alerts operators to potential issues before failures occur.

Frequently Asked Questions (FAQ)

1. What is the NFCP501-S00 used for?

   It serves as the autonomous CPU controller in Yokogawa’s CENTUM systems, handling control logic and system communication.

2. What are the physical dimensions of this module?

   65.8 x 130 x 149.3 mm.

3. How much does the module weigh?

   It weighs 0.9 kg.

4. What temperature range can it operate within?

   The operating temperature range is 0 °C to 55 °C.

5. Is the NFCP501-S00 compatible with CENTUM VP?

   Yes, it is designed for both CENTUM VP and CENTUM CS 3000 systems.

6. Does this module support redundancy?

   Yes, it supports CPU redundancy configurations to ensure system reliability.

7. Can it be hot-swapped without shutting down the system?

   Depending on system configuration, hot-swapping can be performed to reduce downtime.

8. What communication interfaces are available?

   It supports internal bus communication, Ethernet, and optional redundant communication channels.

9. How is the module powered?

   Power is supplied from the host control rack; no external power source is needed.

10. Is this module suitable for hazardous locations?

    It is intended for control room environments; additional certification and protective measures are required for hazardous areas.
