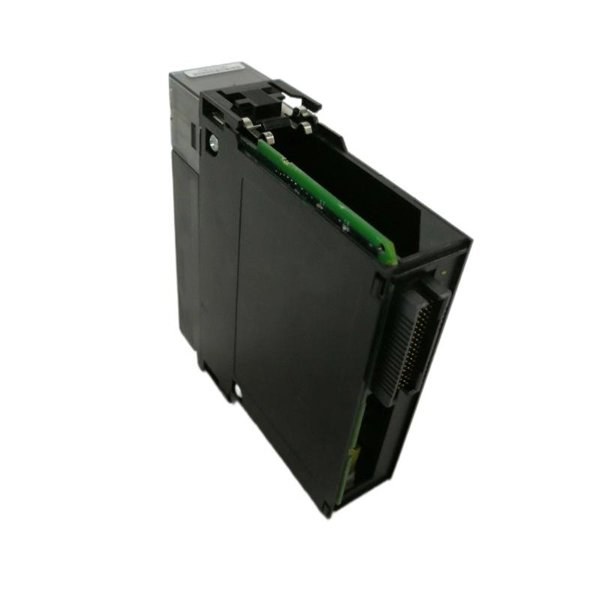

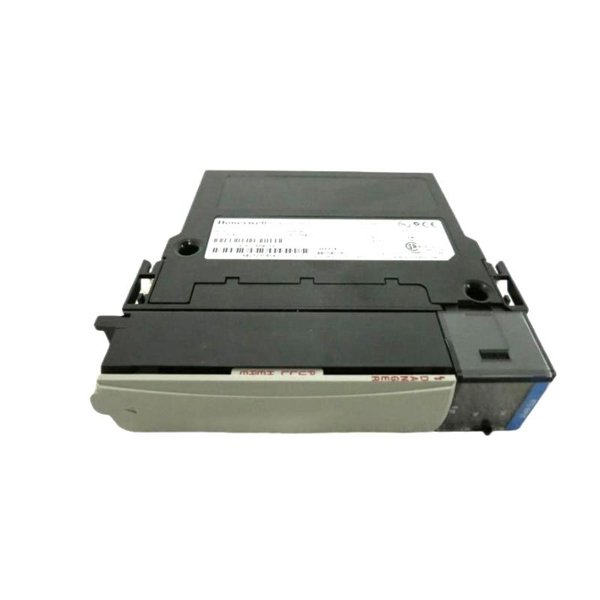

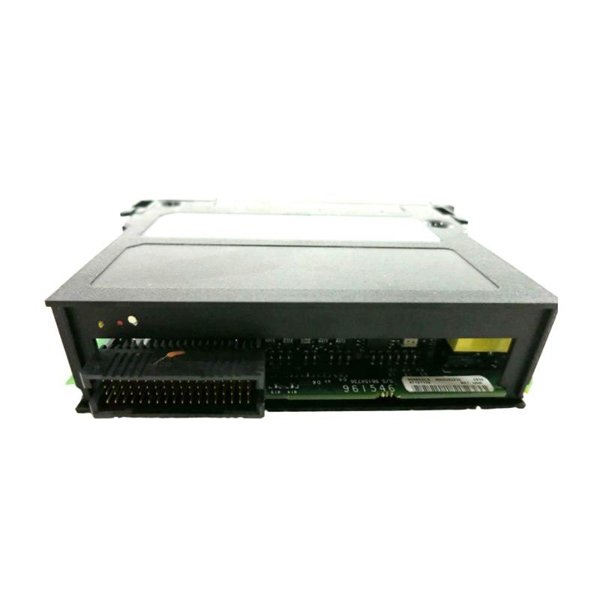

Honeywell TK-IXR061 RTD Input Module

The Honeywell TK-IXR061 is a 6-channel RTD (Resistance Temperature Detector) input module designed for high-performance industrial temperature measurement. It supports various RTD types and provides precise, reliable data acquisition in harsh industrial environments. This module is part of the ControlEdge or C300 platform I/O family.

Technical Specifications

Applications

• Power plants for turbine temperature monitoring

• Petrochemical plants for precise process control

• Pharmaceutical environments requiring accurate thermal regulation

• Food and beverage industries with strict temperature compliance

• Water treatment systems

• Steel manufacturing and industrial ovens

Product Advantages

• High accuracy temperature measurements using RTDs

• Channel-to-channel isolation improves safety and signal integrity

• Integrated diagnostics for real-time fault detection

• Compact design for space-constrained panels

• Compatible with Honeywell’s C300 and ControlEdge systems

• Easy integration with Experion PKS platform

Frequently Asked Questions (FAQ)

Q1: What types of RTDs are supported by the TK-IXR061?

A1: It supports Pt100, Pt200, Pt500, and Pt1000 RTDs compliant with IEC 751.

Q2: How many channels does the TK-IXR061 provide?

A2: It offers 6 independent RTD input channels.

Q3: What is the isolation level for the channels?

A3: Each channel is isolated from others and from the system bus for improved signal integrity and safety.

Q4: Can this module detect wire breakage or sensor faults?

A4: Yes, it features open wire detection and diagnostic functions.

Q5: What is the resolution of the input signal conversion?

A5: The module uses a 16-bit resolution A/D converter for precise measurements.

Q6: What system platforms are compatible with TK-IXR061?

A6: It is compatible with Honeywell ControlEdge and C300 I/O systems.

Q7: What wiring configuration is supported for RTDs?

A7: The module supports 3-wire RTD configurations for better accuracy.

Q8: What is the typical use of this module in industrial applications?

A8: It is typically used in process industries for accurate temperature monitoring and control.

Q9: Does the module support hot swapping?

A9: It depends on the chassis and system configuration, but generally supported with proper hardware.

Q10: What are the environmental specifications?

A10: It operates reliably in ambient temperatures from 0°C to 60°C.
