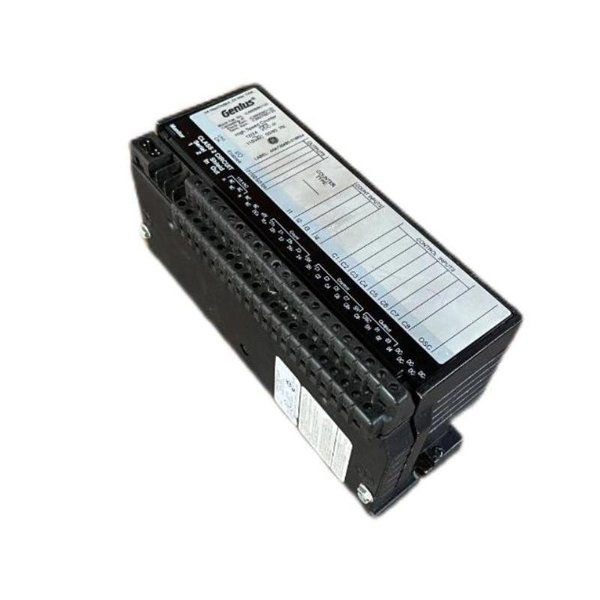

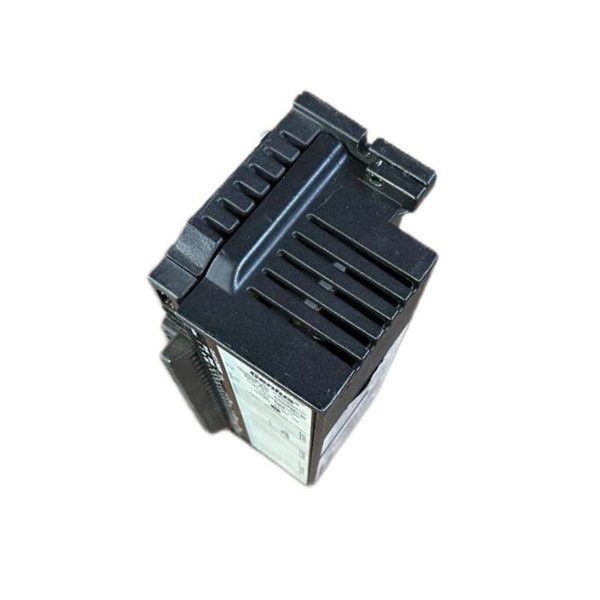

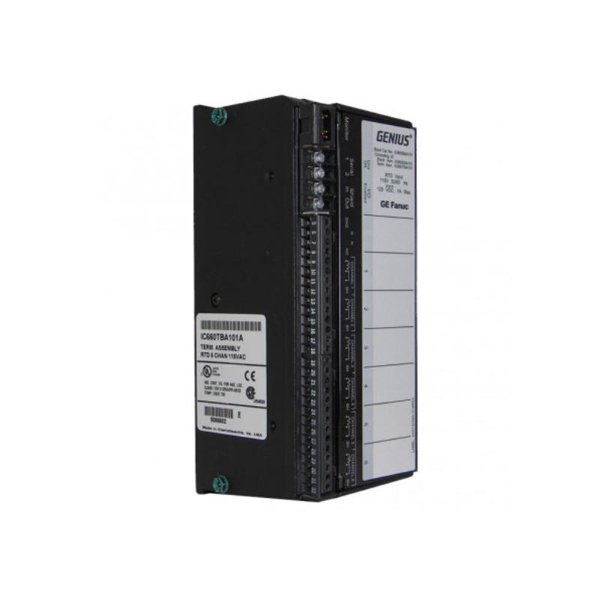

The GE Fanuc IC660BBA101 is a rugged and high-performance RTD (Resistance Temperature Detector) Input Module, designed for use in Genius I/O blocks and compatible with GE Fanuc Series 90-70, RX3i, and other PLC systems. This module allows for precise temperature measurements from RTD sensors, making it ideal for temperature-critical industrial environments such as chemical processing, power generation, food and beverage, and pharmaceutical manufacturing.

The IC660BBA101 supports up to six RTD input channels, offering reliable and isolated temperature readings over a wide range. With advanced diagnostics and fault detection capabilities, the module ensures safe, efficient, and accurate temperature monitoring in both centralized and distributed control architectures.

Key Features

• 6 RTD Input Channels: Supports multiple simultaneous RTD readings, increasing system versatility.

• RTD Compatibility: Works with common RTD types (100 Ohm platinum, 120 Ohm nickel, 10 Ohm copper).

• High Accuracy: Designed for precise temperature measurement with minimal signal drift.

• Channel-to-Channel Isolation: Ensures each input is electrically isolated for better reliability and safety.

• Advanced Diagnostics: Built-in diagnostics for wire breaks, open circuits, and signal integrity monitoring.

• Flexible Configuration: Supports 2-wire, 3-wire, and 4-wire RTD configurations.

• Rugged Design: Suitable for harsh industrial environments with wide temperature and humidity tolerances.

• Hot Swappable: Can be replaced without shutting down the entire system, improving uptime.

• LED Indicators: Status LEDs for module power and channel diagnostics.

Technical Specifications

Industry Applications

• Power Generation: For precise boiler and turbine temperature monitoring.

• Oil & Gas: Used in refining and pipeline systems to measure process temperatures.

• Chemical Processing: Ensures accurate temperature control in reaction vessels and distillation columns.

• Pharmaceutical: Maintains environmental and product temperatures to strict regulatory standards.

• Food & Beverage: Ensures consistency in temperature-sensitive production stages like pasteurization and fermentation.

• Water Treatment: Measures temperature in reservoirs, pipelines, and filtration systems for process optimization.

Product Advantages

• Multi-Channel Efficiency: Six RTD inputs in a single module reduce space and installation complexity.

• Flexible RTD Support: Compatible with different RTD types and wiring configurations, maximizing versatility.

• Fast and Accurate: Rapid 10 ms update rate per channel ensures near real-time data for process control.

• High Reliability: Channel isolation and built-in fault diagnostics enhance safety and system uptime.

• Ease of Integration: Seamless connection to Genius I/O networks and GE Fanuc PLC systems.

• Reduced Downtime: Hot-swappable capability allows maintenance without interrupting production.

• Rugged Construction: Built for harsh industrial environments with high EMC immunity and extended temperature support.

• Status Feedback: Real-time LED indicators simplify troubleshooting and system monitoring.

Frequently Asked Questions (FAQ)

1. What types of RTDs are supported by the IC660BBA101?

   The module supports 100 Ohm Platinum, 120 Ohm Nickel, and 10 Ohm Copper RTDs.

2. How many RTD inputs does this module have?

   It provides 6 independent RTD input channels.

3. Can this module detect sensor failures?

   Yes, it includes diagnostics for open circuits, shorts, and out-of-range values.

4. Does the module offer channel-to-channel isolation?

   Yes, each channel is isolated from others for improved signal integrity.

5. What is the input resolution of the IC660BBA101?

   The resolution is 0.1°C for precise temperature readings.

6. Is the IC660BBA101 hot-swappable?

   Yes, it can be replaced without shutting down the system.

7. What wiring configurations are supported?

   It supports 2-wire, 3-wire, and 4-wire RTD configurations.

8. Which control systems is this module compatible with?

   It is compatible with GE Fanuc Series 90-70, RX3i, and Genius I/O networks.

9. What are the operating temperature limits of the module?

   The operating range is from -20°C to +60°C.

10. How is the module mounted?

    The module is designed for panel mounting.
