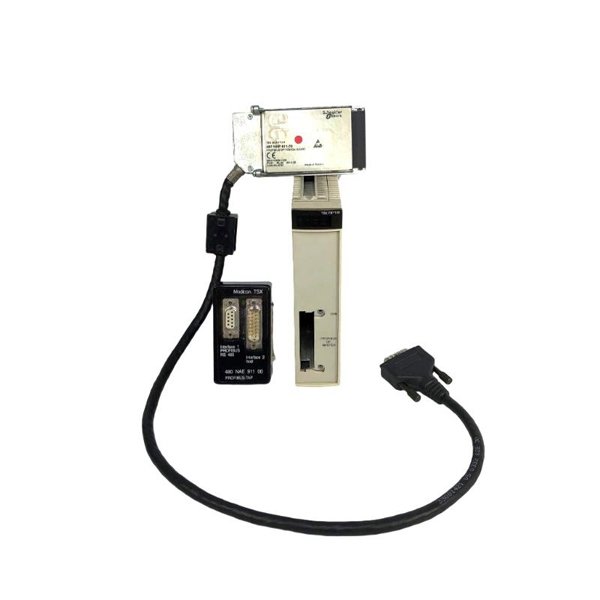

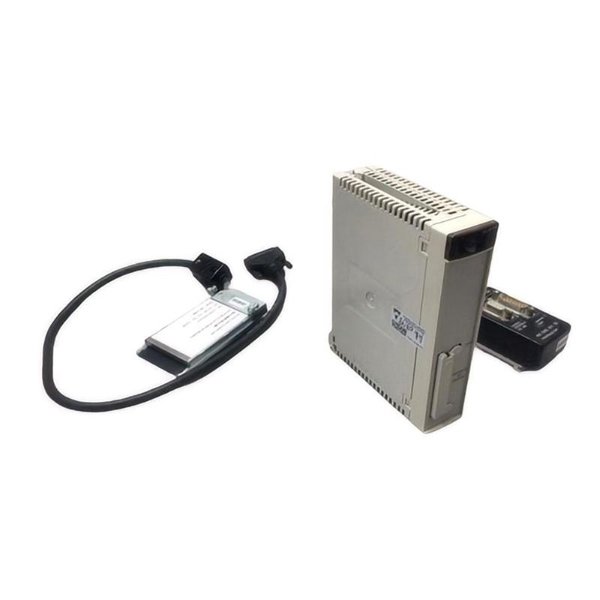

Schneider TSXPBY100 Profibus DP V0 Module Kit

The Schneider TSXPBY100 Profibus DP V0 Module Kit is a dedicated communication module designed for Modicon Premium PLCs. It enables these PLCs to connect seamlessly to PROFIBUS DP networks, adhering to the V0 standard, which focuses on cyclic data exchange between a master and its slaves. The module serves as a PROFIBUS DP Master, managing communication with up to 32 PROFIBUS DP slave devices without repeaters (or 126 with repeaters and proper configuration).

This module is ideal for distributed I/O communication, where real-time deterministic performance and high reliability are essential. The TSXPBY100 integrates tightly with Unity Pro (now EcoStruxure Control Expert), ensuring fast configuration and diagnostics. It is widely used in manufacturing, energy, infrastructure, and process industries.

Technical Specifications

Applications

The TSXPBY100 is widely applied across various industrial sectors due to its flexibility and robust performance. Common application scenarios include:

• Manufacturing Automation: Integration with distributed I/O and actuators via PROFIBUS DP.

• Energy Management: Communication with meters, relays, and smart devices.

• Water Treatment Facilities: Reliable data transfer between sensors, valves, and control stations.

• Chemical & Process Industries: Linking PLCs with intelligent field devices and analyzers.

• Material Handling Systems: Coordinated control of motors, drives, and position sensors.

• Infrastructure Systems: Used in HVAC, building automation, and utility systems.

Key Advantages

1. Easy Integration: Seamlessly integrates with Modicon Premium PLC systems using Unity Pro/EcoStruxure.

2. Reliable Communication: Supports up to 126 PROFIBUS DP devices ensuring large-scale connectivity.

3. Fast Configuration: User-friendly tools reduce engineering time and allow quick deployment.

4. Real-Time Performance: Ensures deterministic and timely data exchange across devices.

5. LED Diagnostics: Local LEDs provide immediate insight into communication and fault states.

6. Compact Design: Saves panel space with its slim 15 mm width.

7. Standards Compliance: Fully PROFIBUS-certified and meets global electrical safety standards.

8. Robust Build: Industrial-grade reliability, vibration resistance, and wide temperature tolerance.

9. Backward Compatibility: Can be integrated into existing Profibus V0 systems.

10. Reduced Downtime: Simplified diagnostics and modularity allow for quick maintenance.

Frequently Asked Questions (FAQ)

1. What type of devices can the TSXPBY100 communicate with?

   It communicates with PROFIBUS DP V0 slave devices such as remote I/O stations, sensors, meters, and drives.

2. Does this module act as a master or a slave?

   It functions as a Class 1 Master on the PROFIBUS DP network.

3. Can the TSXPBY100 be used with Modicon M340 PLCs?

   No, it is specifically designed for Modicon Premium PLCs.

4. How is the module configured?

   Using Unity Pro or EcoStruxure Control Expert software, configuration is done via GSD files.

5. Is it hot-swappable?

   No, it is not hot-swappable. The system should be powered down during installation or removal.

6. What is the maximum communication distance?

   Depends on baud rate and cable type, e.g., up to 1,200 meters at 93.75 kbps with standard PROFIBUS cable.

7. How many modules can be used in a single Premium PLC rack?

   Typically, one per rack, depending on the power budget and application requirements.

8. Does it support diagnostics?

   Yes, diagnostics are available via LED indicators and Unity Pro software.

9. What certifications does the TSXPBY100 hold?

   CE, UL, cUL, and PROFIBUS International certification.

10. Can this module be used in safety-critical applications?

    It is not safety-rated (e.g., SIL or TUV), so it should not be used for functional safety applications.
