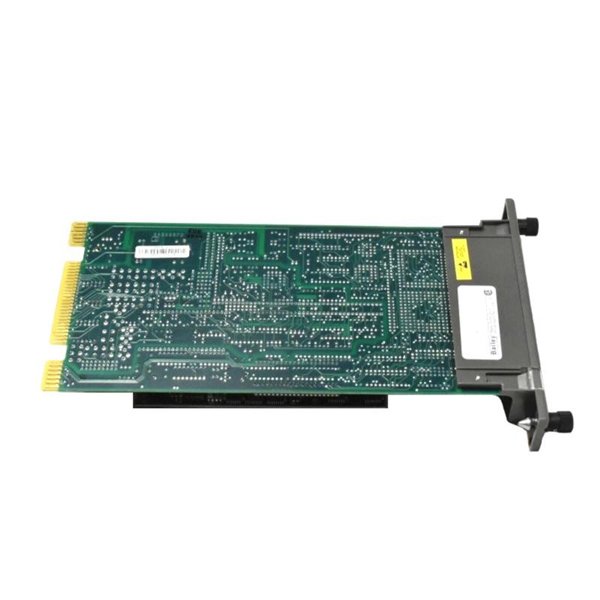

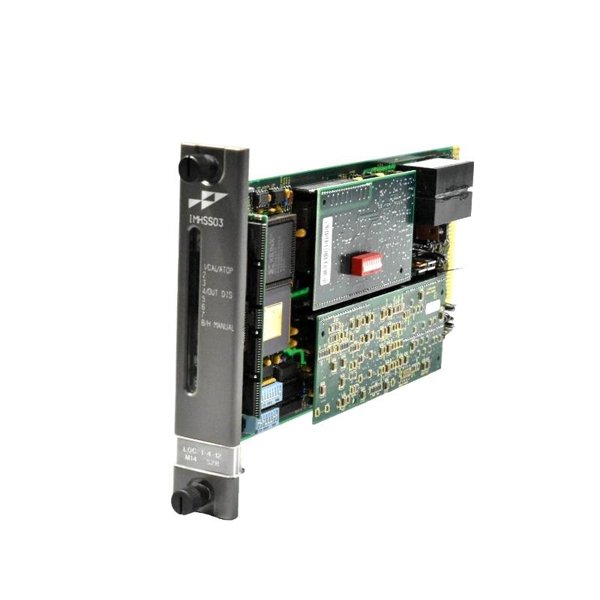

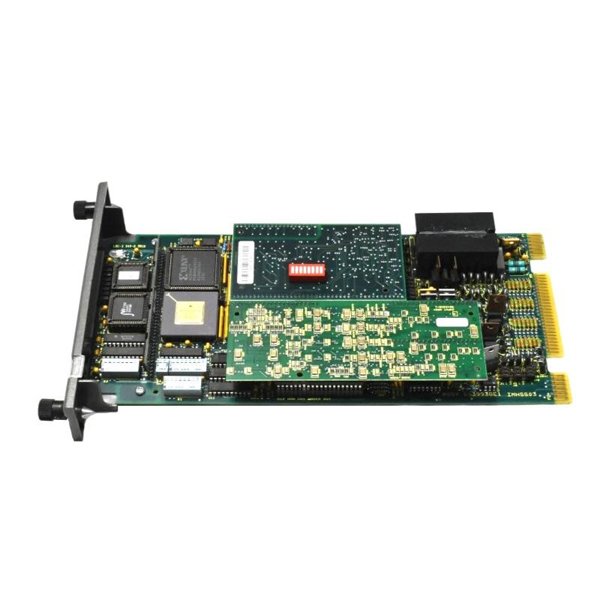

ABB Bailey IMHSS03 Hydraulic Servo Slave Module

The ABB Bailey IMHSS03 Hydraulic Servo Slave Module is a sophisticated, high-performance component designed to interface with hydraulic systems in industrial applications. It plays a key role in the precise control of hydraulic actuators, converting digital control signals into analog signals that can drive hydraulic valves, thereby controlling the flow and pressure within a hydraulic circuit. The IMHSS03 is engineered for high precision, providing fast response times and ensuring system stability in a wide range of demanding environments.

This module is an integral part of ABB’s automation systems, offering seamless integration with the broader control architecture. It is specifically designed to provide consistent, reliable performance in industries like oil and gas, power generation, and manufacturing, where fluid control is crucial for the smooth operation of automated systems.

The IMHSS03 module provides a powerful solution for controlling hydraulic systems, offering a combination of high accuracy, reliability, and versatility. With its robust design and superior performance, this module ensures optimal control in various industrial processes requiring fluid power.

Product Parameters

Product Applications

The ABB Bailey IMHSS03 Hydraulic Servo Slave Module is used in a wide range of industries and applications where hydraulic control and precision are critical. The primary industries and applications where this module is used include:

1. Oil & Gas: The IMHSS03 is employed in upstream and downstream operations to control hydraulic systems used in drilling, production, and transport. It ensures precise control of valves, actuators, and pressure systems.

2. Power Generation: In power plants, hydraulic systems are critical for turbine control, valve regulation, and other mechanical operations. The IMHSS03 provides reliable control to keep these systems functioning smoothly and efficiently.

3. Automated Manufacturing: The module plays a crucial role in controlling hydraulic presses, robotic arms, and other machinery that require fluid-based motion control. It ensures high accuracy and responsiveness in industrial automation applications.

4. Aerospace & Defense: The module is used in highly demanding hydraulic systems where precision control and reliability are essential, such as in aircraft control systems or military equipment.

5. Marine & Shipbuilding: In the marine industry, hydraulic systems control equipment like cranes, steering systems, and ballast controls. The IMHSS03 provides the precision and responsiveness necessary for these critical operations.

6. Heavy Equipment & Machinery: The IMHSS03 is widely used in controlling hydraulic systems in construction, mining, and other heavy-duty machinery, ensuring optimal performance in rugged environments.

Product Advantages

1. High Precision Control: The IMHSS03 is designed for high precision in controlling hydraulic actuators. It converts digital signals into analog signals with an accuracy of ±0.5% of full scale, ensuring exact control of fluid flow and pressure.

2. Fast Response Time: The module boasts a response time of less than 1 ms, ensuring fast and reliable control of hydraulic systems, crucial in applications requiring real-time adjustments.

3. Versatile Communication: Supporting industry-standard communication protocols such as Profibus DP and Modbus RTU, the IMHSS03 easily integrates with other automation systems, providing seamless communication in complex industrial setups.

4. Wide Operating Range: The module is capable of functioning in a wide temperature range from -20°C to +70°C, making it suitable for deployment in both cold and hot environments.

5. Compact Design: With its compact DIN rail mounting design, the IMHSS03 can be easily integrated into existing systems, saving valuable space while maintaining high performance.

6. Reliability: The IP20 protection class ensures that the module is protected against dust and debris, making it reliable even in challenging industrial environments.

7. Energy Efficient: The module consumes only 3 W of power, making it energy-efficient and suitable for operations where power consumption is a concern.

8. Robust Performance: Designed to handle high-stress environments, the IMHSS03 ensures reliable, long-lasting operation even under heavy-duty conditions.

9. Cost-Effective: By offering superior performance in controlling hydraulic systems, the IMHSS03 helps reduce the need for manual adjustments, lowering operational costs over time.

10. Easy Integration: The IMHSS03 integrates seamlessly with ABB’s broader automation and control systems, simplifying the installation and maintenance process.

Frequently Asked Questions (FAQ)

1. What is the IMHSS03 module used for?

   • The IMHSS03 is a Hydraulic Servo Slave Module used to control hydraulic systems in industrial applications by converting digital control signals into analog outputs.

2. How accurate is the control provided by the IMHSS03?

   • The IMHSS03 has a signal accuracy of ±0.5% of full scale, ensuring precise control of hydraulic actuators.

3. What communication protocols does the IMHSS03 support?

   • The module supports Profibus DP and Modbus RTU communication protocols for integration with other control systems.

4. What is the response time of the IMHSS03?

   • The IMHSS03 has a response time of less than 1 ms, providing fast control in time-sensitive applications.

5. What is the power consumption of the IMHSS03?

   • The IMHSS03 consumes 3 W of power, making it an energy-efficient component.

6. What is the operating temperature range for the IMHSS03?

   • The module operates in a temperature range of -20°C to +70°C, ensuring it can function in both cold and hot environments.

7. Can the IMHSS03 be mounted on a DIN rail?

   • Yes, the IMHSS03 is designed for DIN rail mounting, providing easy installation in industrial control panels.

8. What type of output does the IMHSS03 provide?

   • The module provides analog outputs such as 4-20 mA and 0-10 VDC, suitable for controlling hydraulic valves and actuators.

9. What is the weight of the IMHSS03?

   • The IMHSS03 weighs 0.5 kg, making it lightweight and easy to integrate into various systems.

10. What industries can benefit from using the IMHSS03?

• The IMHSS03 is used in industries such as oil and gas, power generation, aerospace, manufacturing, marine, and heavy equipment.
