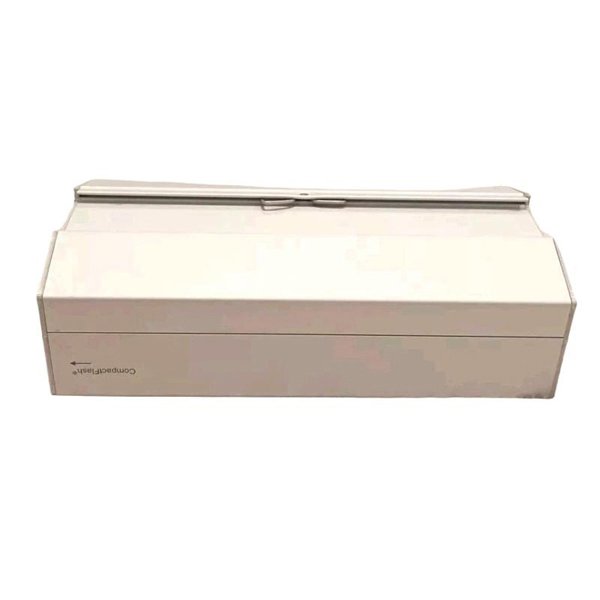

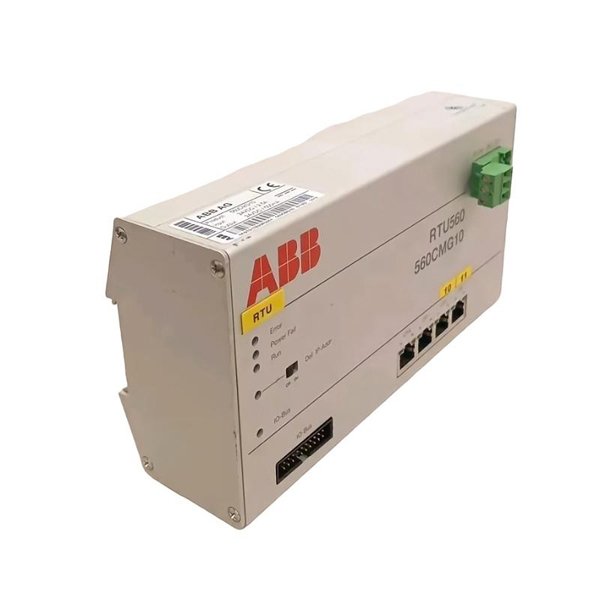

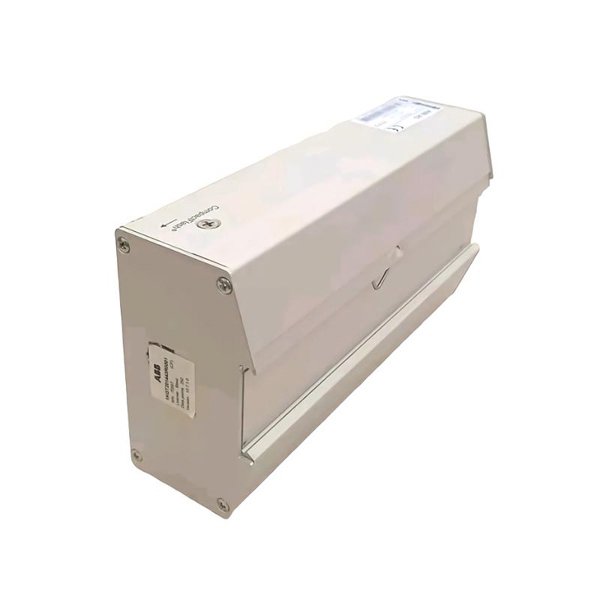

ABB RTU560 560CMG10 1KGT017600R001 Remote Terminal Unit

The ABB RTU560 560CMG10 1KGT017600R001 is a core component of ABB’s RTU560 series, which represents one of the most advanced and scalable remote terminal units for modern power system automation. This particular model is a CMG10 communication gateway module, designed to manage communication between substation automation devices and higher-level SCADA or control centers.

Operating within the RTU560 platform, the 560CMG10 ensures seamless protocol conversion, data concentration, and secure message forwarding. It serves as the central communication brain of a distributed or centralized RTU560 configuration, supporting real-time performance, fault-tolerant redundancy, and secure data exchange in demanding environments such as substations, industrial plants, and smart grid infrastructures.

Product Specifications

Product Applications

The RTU560 560CMG10 is purpose-built for communication-centric roles within critical infrastructure. It is used in:

• High-voltage and medium-voltage substations

• Distribution automation systems (DAS)

• Renewable energy integration sites (e.g., solar farms, wind farms)

• Industrial process automation networks

• Control center to field device communication

• Protocol bridging and gateway functionality in legacy systems

• Smart grid data concentrators

• Utility monitoring and telemetry systems

Product Advantages

• Multi-Protocol Communication Engine

  Supports concurrent operation of multiple industry-standard protocols, simplifying interfacing between modern and legacy equipment.

• Redundant Network Communication

  Dual Ethernet ports and support for hot-standby ensure communication continuity, even under failure conditions.

• Cybersecurity-Ready

  Integrated with access control, encrypted protocols (TLS), firewall functions, and audit trails to comply with modern cybersecurity standards.

• Flexible Topology Integration

  Easily adaptable to star, ring, or mixed communication network topologies, whether in centralized or distributed architectures.

• Future-Proof Architecture

  Firmware upgradable and compatible with IEC 61850, making it suitable for long-term deployment in evolving grid environments.

• Industrial Grade Reliability

  Designed to operate in harsh environmental conditions, with high resistance to electromagnetic disturbances and wide temperature ranges.

• Simplified Engineering

  Commissioning, parameterization, and diagnostics are streamlined via ABB’s RTUtil560 software suite, ensuring quick deployment.

• Power Supply Versatility

  Compatible with a wide range of DC voltages, it can adapt to varied substation and industrial supply scenarios.

FAQ

1. Can the RTU560 560CMG10 handle simultaneous protocol conversions (e.g., IEC 104 to Modbus)?

   Yes, it supports parallel handling of multiple protocols, acting as a multi-channel gateway.

2. Is redundant communication supported between two CMG10 modules?

   Yes, CMG10 modules can be configured in hot-standby redundancy mode for failover protection.

3. How is configuration managed for the CMG10 module?

   Configuration is done through RTUtil560 software, which provides a graphical interface for parameterization.

4. Does the module support secure communication protocols?

   Yes, CMG10 supports secure protocols including TLS, HTTPS, and SSH for secure remote access and communication.

5. Can I update firmware without disconnecting the module from the network?

   Yes, firmware updates can be performed via USB or remotely, with minimal service interruption.

6. How many serial connections can operate simultaneously?

   Up to six serial interfaces (RS-232/RS-485) can operate concurrently, with individual port protocol assignment.

7. Does the module support IEC 61850 GOOSE messaging?

   While it supports IEC 61850 communication, GOOSE messaging support depends on system-level configuration.

8. How is time synchronization achieved in CMG10?

   It supports SNTP, IRIG-B, and PPS-based time synchronization methods for system-wide coordination.

9. Can the CMG10 be integrated into ring topology Ethernet networks?

   Yes, it supports redundant Ethernet networks and can be deployed in ring configurations using RSTP.

10. Is it possible to isolate communication channels for cybersecurity purposes?

    Yes, channel separation and role-based access ensure secure, segregated communication paths.
