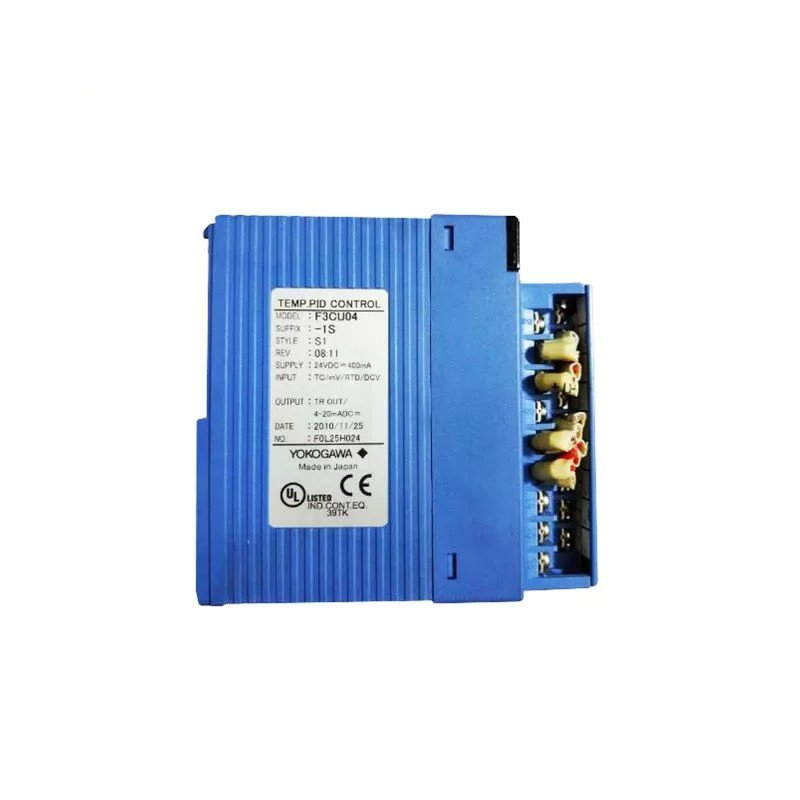

The YOKOGAWA F3CU04-1S is a temperature control and PID module from Yokogawa’s FA-M3 series. Designed for industrial automation, this module offers advanced control capabilities.

Key Features

• Dual-Slot Occupancy: Unlike the single-slot F3CU04-0S, the F3CU04-1S requires two slots for installation.
• Four-Loop Control: Both models control up to four independent loops.
• Heating and Cooling Output: The F3CU04-1S can handle heating and cooling outputs simultaneously without reducing the number of output loops.
• Fahrenheit Display: It offers an optional Fahrenheit display, catering to applications needing temperature readings in this unit.
• PID Control: Implements Proportional-Integral-Derivative (PID) control for precise temperature regulation.
• Flexible Input: Accommodates various temperature sensors, including thermocouples and RTDs.

Technical Specifications

Here are some general parameters:

• Input: Supports thermocouple or RTD.
• Output: Handles both heating and cooling.
• Number of Loops: Four.
• Display: Optional Fahrenheit.
• Detection Current: Maximum 100 nA.
• Input Insulation Resistance: Minimum 1 MΩ.

Applications

The F3CU04-1S is suitable for various industries, including:

• Semiconductor manufacturing
• Chemical processing
• Food and beverage
• Pharmaceuticals
• Power generation
