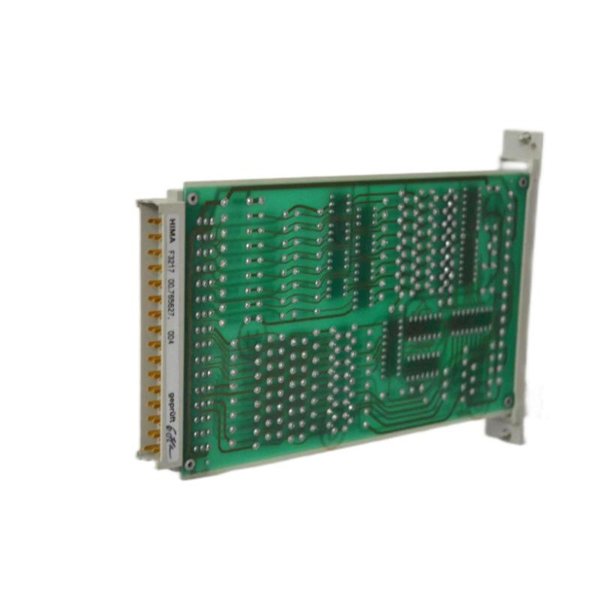

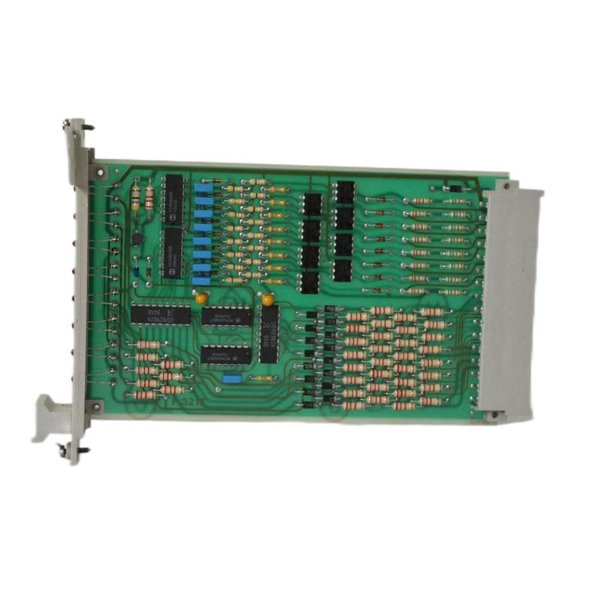

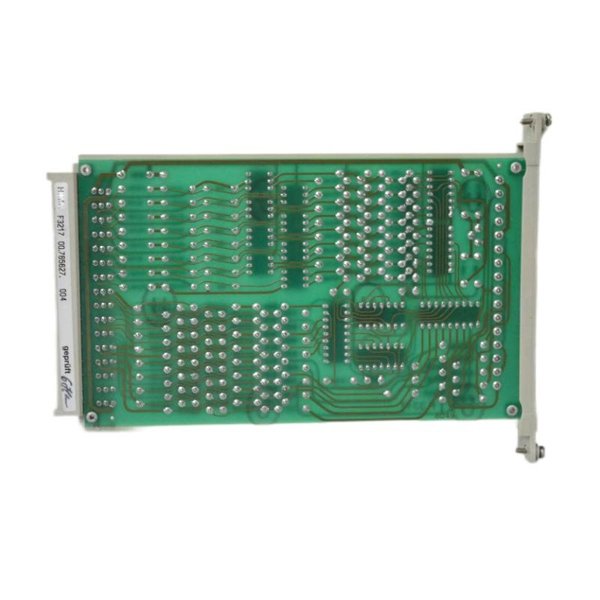

Hima F3217 8 Channel Safety Related Input Module

The HIMA F3217 is an advanced 8-channel safety-related input module designed to provide high-level reliability and safety for industrial control systems. This module is part of HIMA’s extensive family of safety systems, offering robust performance for applications that require SIL 3 (Safety Integrity Level 3) certification. It is used primarily in safety-critical environments, such as process automation, emergency shutdown systems (ESD), and other safety-related tasks. The F3217 module ensures that critical safety functions are consistently maintained while meeting strict international standards for industrial safety.

With 8 input channels, this module allows for the connection of a variety of field devices, ensuring that signals are correctly monitored and processed. Its reliability and fault-tolerant design make it an essential part of any high-integrity system, providing comprehensive safety coverage for both small and large-scale automation systems.

Product Specifications

Product Applications

The HIMA F3217 8 Channel Safety Related Input Module is designed for use in various safety-critical applications, ensuring that safety functions are always operational:

• Process Control: For monitoring and controlling processes in industries like chemical, oil & gas, and pharmaceuticals.

• Emergency Shutdown Systems (ESD): Ensures that emergency shutdown signals are safely processed and executed.

• Fire & Gas Detection: Monitors fire and gas detection systems to initiate appropriate actions if hazardous conditions are detected.

• Machine Safety: Used in safety systems for monitoring emergency stops, protective doors, and safety light curtains in manufacturing environments.

• Safety Instrumented Systems (SIS): A key component in safety instrumented systems for providing fail-safe operation.

• Power Generation: Used for monitoring critical parameters in power plants, ensuring the integrity of safety systems.

Product Advantages

• High Reliability: The module is designed for high fault tolerance, ensuring that safety functions are not compromised even under challenging conditions.

• Safety Integrity Level 3 (SIL 3): The F3217 meets the highest safety integrity standards, making it ideal for critical safety applications.

• Fast Response Time: With a response time of less than 1 ms, the module ensures rapid detection and response to unsafe conditions.

• Flexible Input Options: The module supports dry contact inputs, offering flexibility in connecting various types of field devices.

• Robust Environmental Performance: Designed to operate in extreme temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial environments.

• Easy Installation: The module can be easily mounted on a standard DIN rail, simplifying installation and integration into control panels.

• Comprehensive Monitoring: Redundant monitoring and fault detection ensure that the system operates at peak reliability.

• Long-term Durability: Built to last, with protection against short-circuits and overloads to extend the lifespan of both the module and the connected devices.

Frequently Asked Questions (FAQ)

1. What is the primary function of the HIMA F3217 module?

   • It provides 8 digital input channels for safety-related applications, ensuring high reliability and fault tolerance for critical control systems.

2. What does SIL 3 certification mean?

   • SIL 3 certification indicates that the module meets the highest safety integrity standards, making it suitable for high-risk applications.

3. Can the F3217 module be used in harsh environments?

   • Yes, it operates in a wide temperature range from -40°C to +70°C, making it suitable for a variety of industrial environments.

4. What type of inputs does the F3217 support?

   • The module supports dry contact inputs (dry closure), which are common for digital on/off signals from field devices.

5. How does the F3217 ensure safety in case of a fault?

   • The module uses a 2oo3 (two out of three) voting system to ensure that a single fault does not compromise safety.

6. Is the F3217 easy to integrate into existing systems?

   • Yes, the module can be easily integrated into safety instrumented systems and process control systems, thanks to its standardized DIN rail mounting and simple screw terminal connections.

7. What industries can benefit from the F3217 module?

   • The F3217 is ideal for industries such as oil & gas, chemicals, pharmaceuticals, power generation, and manufacturing.

8. Does the module offer fault indication?

   • Yes, it has built-in LEDs that indicate the status of each channel, including any faults.

9. What certifications does the F3217 module have?

   • It is certified for SIL 3, IEC 61508, IEC 61511, UL, and CE, ensuring compliance with international safety standards.

10. What is the power consumption of the F3217 module?

    • The module consumes a maximum of 0.7 W of power during operation.
