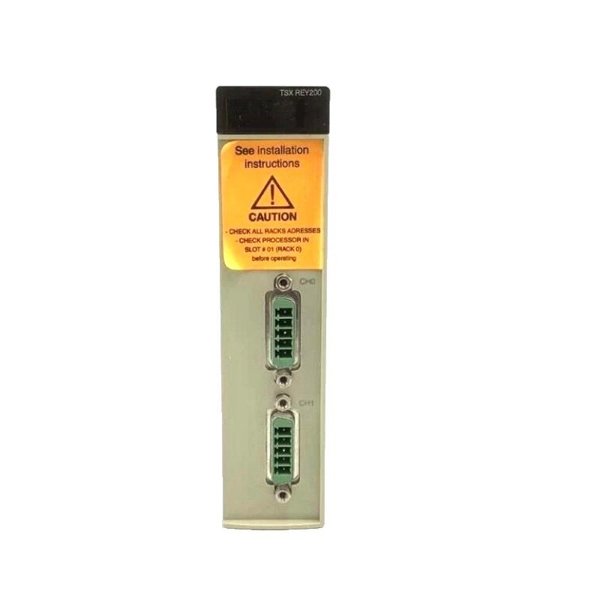

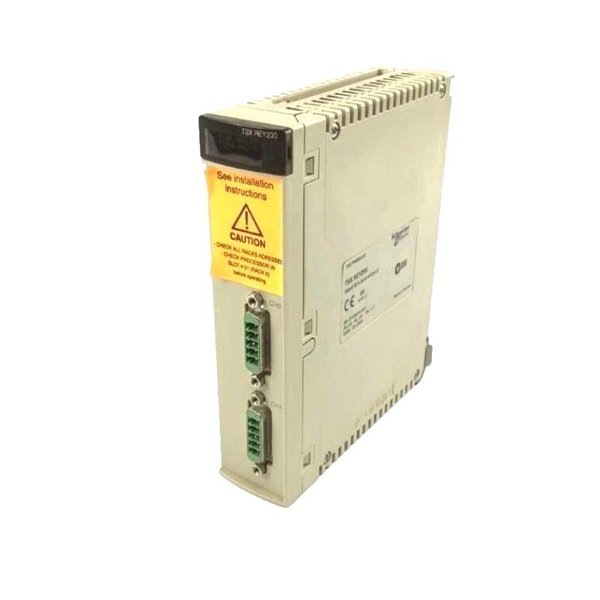

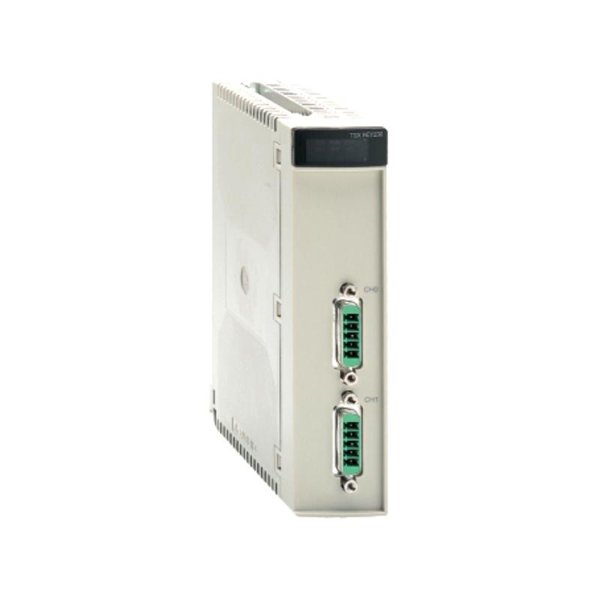

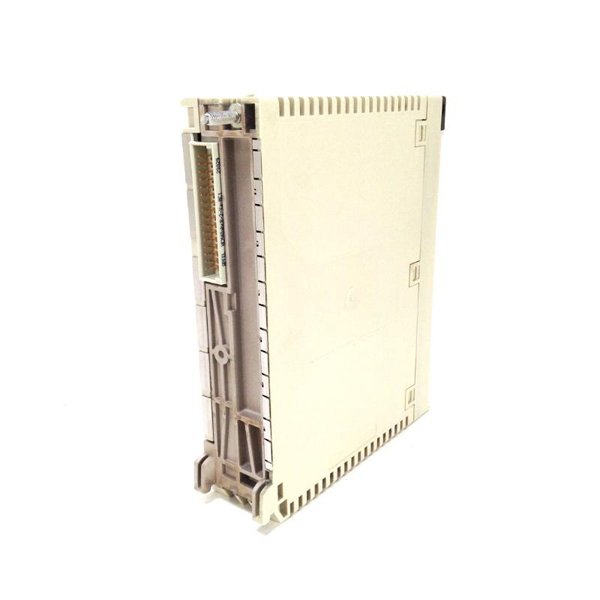

Schneider TSXREY200 Bus X Remote Rackmaster Module

The Schneider TSXREY200 is a Bus X Remote Rackmaster Module designed for use with Modicon TSX Micro PLC systems. It enables communication between the main controller and remote I/O bases via the proprietary Bus X network. The TSXREY200 module allows the extension of automation systems where remote I/O distribution is essential for flexibility, system scalability, and performance.

It serves as the master module in a remote I/O configuration, managing communication with up to seven remote slave racks through a reliable high-speed serial link. Designed for industrial environments, the TSXREY200 ensures consistent data transfer and simplified field wiring.

Technical Specifications

Applications

• Distributed control systems for manufacturing automation

• Remote I/O expansion in conveyor systems

• Automotive production lines requiring decentralized I/O

• Packaging and bottling plants

• Material handling systems with dispersed sensor/actuator arrangements

• Infrastructure management (e.g., water treatment, power distribution)

Advantages

• Simplifies remote I/O architecture through Bus X connectivity

• Reduces wiring complexity and installation time

• Enables scalable and modular automation system design

• Enhances communication reliability between racks

• Space-efficient form factor for compact enclosures

• Integrated diagnostics via LED indicators for quick troubleshooting

Frequently Asked Questions (FAQ)

Q1: What is the function of the TSXREY200 module?

A1: It acts as a master controller for Bus X remote I/O racks in a Modicon TSX Micro system.

Q2: How many remote racks can the TSXREY200 support?

A2: It can manage up to 7 remote slave racks.

Q3: Is the module hot-swappable?

A3: No, the TSXREY200 is not hot-swappable. Power should be removed during installation or replacement.

Q4: What power supply does it require?

A4: It receives 5V DC power from the rack’s backplane.

Q5: Does the module support diagnostics?

A5: Yes, LED indicators are available for link status and communication diagnostics.

Q6: What is the recommended ambient temperature for operation?

A6: The recommended operating range is 0°C to 60°C.

Q7: Can it be used with other PLC platforms outside TSX Micro?

A7: No, it is specifically designed for the Modicon TSX Micro series.

Q8: Is firmware upgrading supported?

A8: The TSXREY200 does not require firmware updates for standard operation.

Q9: What type of communication cable is needed?

A9: A shielded Bus X communication cable, as specified by Schneider, should be used.

Q10: What is the enclosure rating of the module?

A10: It has an IP20 protection rating, suitable for installation within a cabinet.
