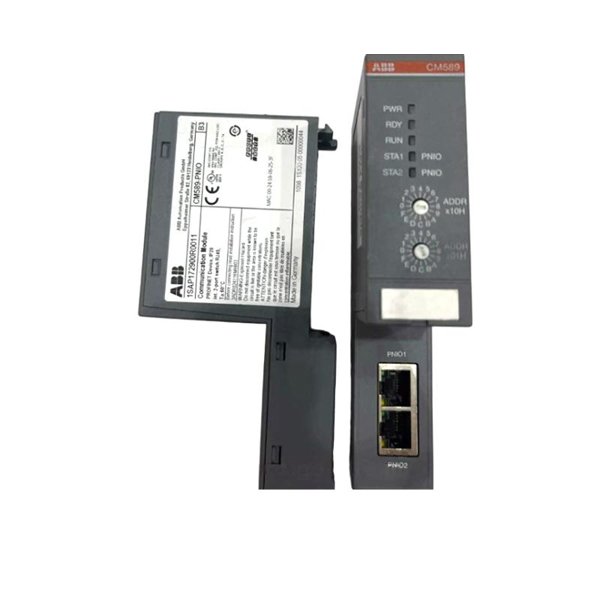

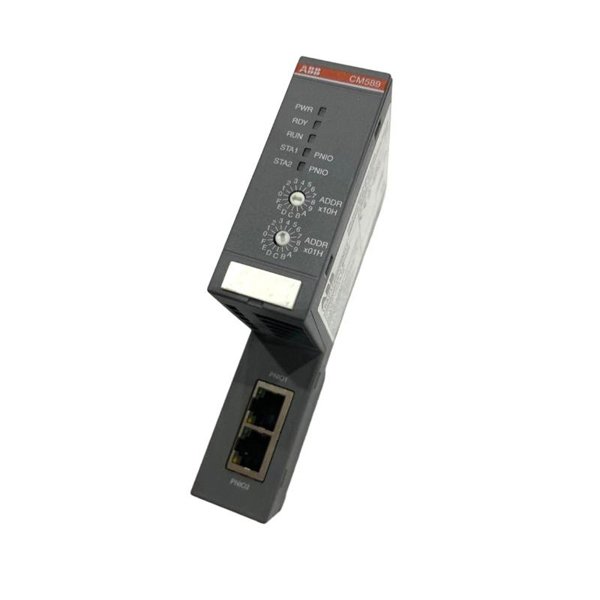

ABB CM589-PNIO-4 1SAP172900R0111 AC500 Communication Module

The ABB CM589-PNIO-4 1SAP172900R0111 is a high-performance communication module designed specifically for the AC500 PLC system. This module integrates PROFINET communication within the AC500 automation system, providing seamless and reliable data transfer between field devices, I/O modules, and the central control unit. It enhances the modularity and scalability of automation systems by supporting the integration of remote I/O devices and various industrial communication protocols.

As an essential component of the ABB AC500 PLC family, the CM589-PNIO-4 facilitates quick and efficient communication over industrial Ethernet networks, enabling real-time data acquisition, diagnostics, and control in various industrial settings. It offers a robust communication interface for both digital and analog signals, providing versatility and flexibility to meet diverse automation needs.

This module is engineered to operate in harsh industrial environments, delivering reliable performance and minimizing downtime, which is crucial for mission-critical applications in industries such as manufacturing, process automation, energy, and infrastructure.

Product Specifications

Product Applications

The CM589-PNIO-4 communication module is ideal for a wide range of industrial applications that require reliable and fast communication between field devices and control systems. Its versatility allows it to be used in a variety of sectors, including manufacturing, energy, infrastructure, and process automation. Key application areas include:

• Manufacturing Automation

  Integrates various production lines and machinery with the AC500 PLC system for seamless control and monitoring.

• Energy and Utilities

  Enables efficient monitoring and control of power generation, distribution, and utility management systems.

• Building Automation

  Provides central control for HVAC, lighting, security systems, and energy management in commercial and residential buildings.

• Water and Wastewater Treatment

  Facilitates real-time data acquisition and communication between field devices such as sensors, actuators, and remote monitoring stations.

• Transportation Systems

  Used in automation for railways, airports, and other transportation infrastructures for control and monitoring tasks.

• Process Control

  Ideal for process industries such as chemical, petrochemical, and food processing, where precision and reliability are critical for continuous operation.

Product Advantages

The CM589-PNIO-4 offers several key advantages, making it a reliable and efficient solution for industrial automation systems:

• Compact and Lightweight

  With dimensions of 62 × 135 × 28 mm and a weight of only 0.1 kg, the module is perfect for installations where space is limited without sacrificing performance.

• Fast and Reliable PROFINET Communication

  Provides high-speed data exchange over PROFINET, making it ideal for real-time industrial applications with minimal delay.

• Wide Temperature Range

  It operates in extreme environmental conditions, with a temperature range of -40°C to +70°C, ensuring reliable performance in various industrial settings.

• Low Power Consumption

  The module consumes less than 3 W of power, making it energy-efficient and reducing overall system operational costs.

• Robust and Durable Design

  The module is built to withstand industrial environments with high levels of EMC protection and vibration resistance, complying with IEC 61000-4-x standards.

• Easy Installation

  It supports DIN rail mounting, which simplifies installation and allows for easy integration into existing control panels and automation cabinets.

• Real-Time Diagnostics

  Integrated LED indicators provide real-time status feedback for power, communication, and I/O, ensuring efficient maintenance and troubleshooting.

• Global Compliance

  The CM589-PNIO-4 is certified for CE, UL, and RoHS, ensuring it meets international safety, environmental, and quality standards.

• Scalable Integration

  The module supports scalable communication systems, allowing users to expand their automation setups as needed while maintaining consistent performance.

• Versatile Communication Protocol

  PROFINET offers seamless integration with other industrial devices, enabling a wide range of use cases in different applications and industries.

Frequently Asked Questions (FAQ)

1. What is the main purpose of the CM589-PNIO-4 communication module?

   The CM589-PNIO-4 is designed to integrate PROFINET communication into ABB’s AC500 PLC system, facilitating fast and reliable data exchange between field devices and control systems.

2. What are the dimensions and weight of the module?

   The module has dimensions of 62 × 135 × 28 mm and weighs 0.1 kg.

3. What communication protocol does the module support?

   It supports the PROFINET protocol, which is widely used in industrial Ethernet networks for real-time communication.

4. How is the CM589-PNIO-4 module mounted?

   The module is designed for DIN rail mounting, which ensures easy and secure installation in industrial control panels.

5. What is the operating voltage of the CM589-PNIO-4?

   The module operates with a 24 VDC power supply.

6. What is the temperature range of the module?

   The module can operate in temperatures ranging from -40°C to +70°C, making it suitable for use in extreme environments.

7. Can this module be used outdoors?

   The CM589-PNIO-4 has an IP20 protection rating, meaning it is designed for indoor use. For outdoor applications, additional protection is required.

8. How does the module help with diagnostics?

   It features built-in LED indicators that provide feedback on the status of power, communication, and I/O, simplifying troubleshooting and maintenance.

9. Which industries typically use this module?

   It is commonly used in manufacturing automation, energy, transportation, building automation, and process control industries.

10. Is any special software required for configuration?

    Basic configuration can be done using ABB’s AC500 engineering tools, or through integration with a PROFINET network.
