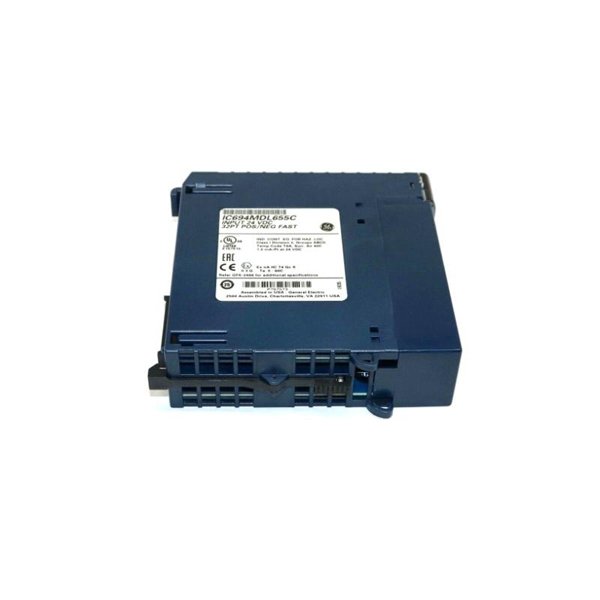

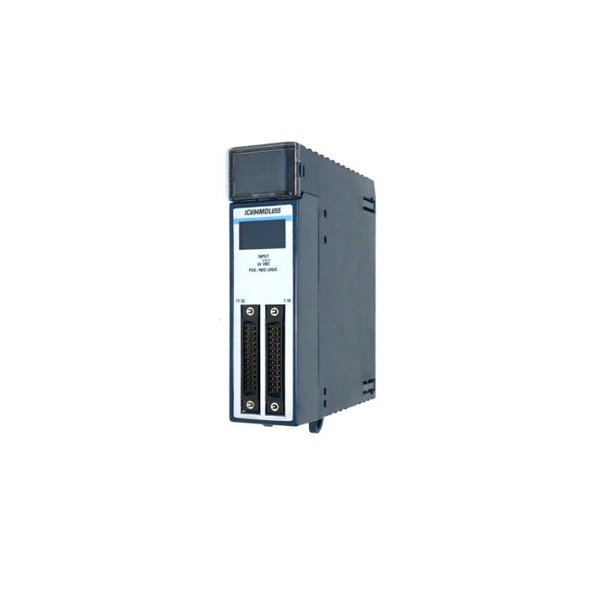

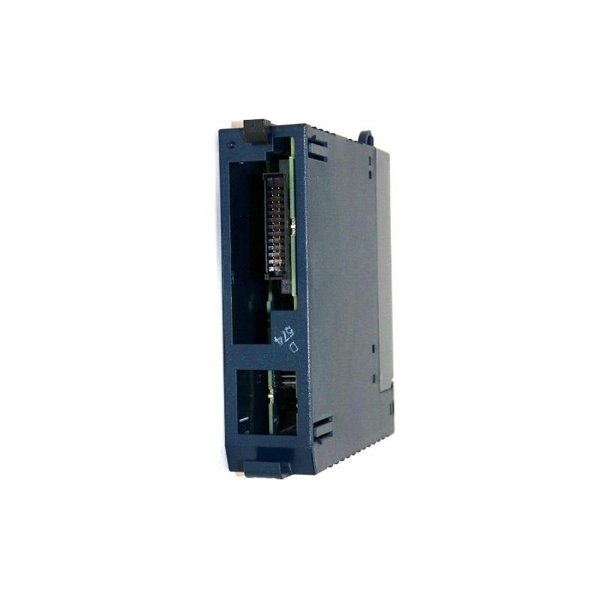

General Electric IC694MDL655C Positive/Negative Logic Input Module

The GE IC694MDL655C is a versatile digital output module designed for use in the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) systems. This module plays an essential role in controlling various industrial processes by providing digital output signals to control external devices such as actuators, relays, and other machinery. With its high reliability, ease of integration, and robust design, the IC694MDL655C is a preferred choice for critical applications in automated industrial environments.

The IC694MDL655C module is designed to function in a variety of operational conditions and provides seamless integration with the PLC. It ensures high-speed control, minimizing downtime and improving overall productivity. This module is suitable for industries ranging from manufacturing, chemical processing, energy, and more.

Product Features and Advantages

• High Speed: Capable of processing multiple digital signals at high speeds, which is essential for time-sensitive industrial applications.

• Versatile Compatibility: Fully compatible with other GE Fanuc PLC systems, enhancing system flexibility.

• High Reliability: Built to last in harsh industrial environments, offering long-term performance without frequent maintenance.

• Space Efficient: Compact design that fits easily into standard PLC racks.

• Wide Range of Applications: Suitable for controlling a variety of industrial equipment, including sensors, actuators, and other devices.

• Safety Features: Comes with built-in fault tolerance and diagnostic capabilities to ensure safety and reliability in critical operations.

Technical Specifications

Applications

The GE IC694MDL655C module is widely used in automated industrial processes for applications that require high-speed digital outputs. Some of its key uses include:

• Automation Systems: Provides digital output signals to control automated machinery, sensors, and actuators.

• Manufacturing: Used in factories for controlling conveyor belts, robotics, and other automated equipment.

• Process Control: Essential for systems where precise control of machinery and devices is critical, such as chemical plants or power stations.

• Safety Systems: Controls emergency shut-off valves, alarms, and other critical safety devices in industrial settings.

• Energy Management: Used for managing energy distribution and controlling electrical systems.

Advantages of the GE IC694MDL655C

• Seamless Integration: Easily integrates with other GE Fanuc systems, simplifying PLC network setup.

• High Efficiency: Enables efficient control of multiple devices with a single module.

• Reliability: Built for long-term performance in harsh industrial environments, reducing downtime.

• Cost-Effective: Offers a low total cost of ownership due to minimal maintenance and long service life.

• User-Friendly: Easy to configure and install, saving time and resources during system setup.

Frequently Asked Questions (FAQ)

1. What is the purpose of the GE IC694MDL655C module?

   • It is used to provide digital outputs in industrial control systems, controlling devices like actuators and relays.

2. Can the IC694MDL655C be used with other PLC systems?

   • No, it is specifically designed for use with the GE Fanuc Series 90-30 PLC system.

3. What is the maximum current per output channel?

   • Each output channel can handle up to 0.5 A.

4. What is the voltage range for this module?

   • The module operates within a voltage range of 5 to 30 V DC.

5. Is the GE IC694MDL655C suitable for outdoor use?

   • No, it should be used in controlled indoor environments with the specified temperature and humidity range.

6. How many output channels does the IC694MDL655C have?

   • The module has 16 output channels.

7. What is the operating temperature range for this module?

   • The operating temperature range is from 0°C to 60°C (32°F to 140°F).

8. Can this module be used in hazardous environments?

   • It is not certified for use in hazardous environments; it is designed for standard industrial environments.

9. How can I install the IC694MDL655C module?

   • It is designed to be rack-mounted in a compatible GE Fanuc PLC system.

10. What are the storage temperature limits for the IC694MDL655C?

    • The storage temperature range is from -40°C to 85°C (-40°F to 185°F).
