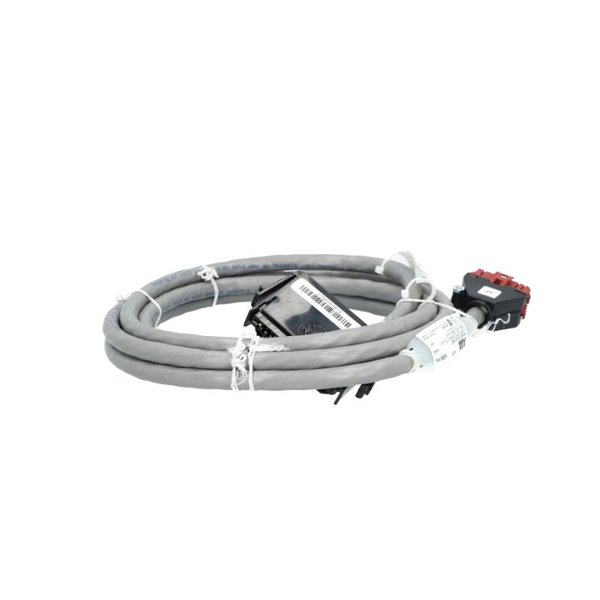

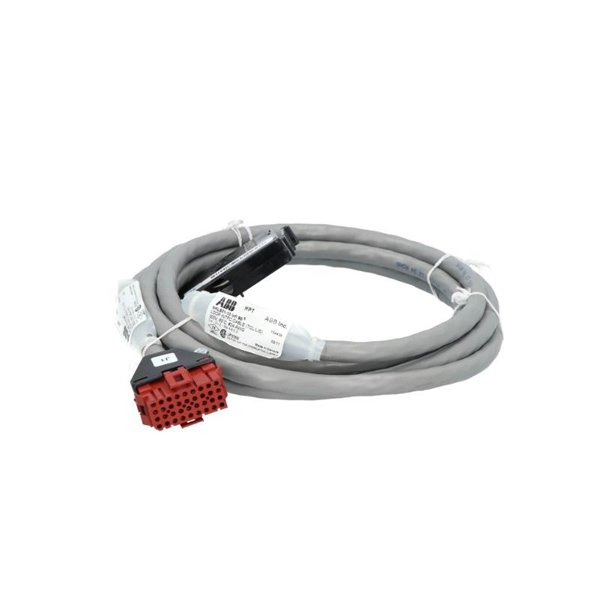

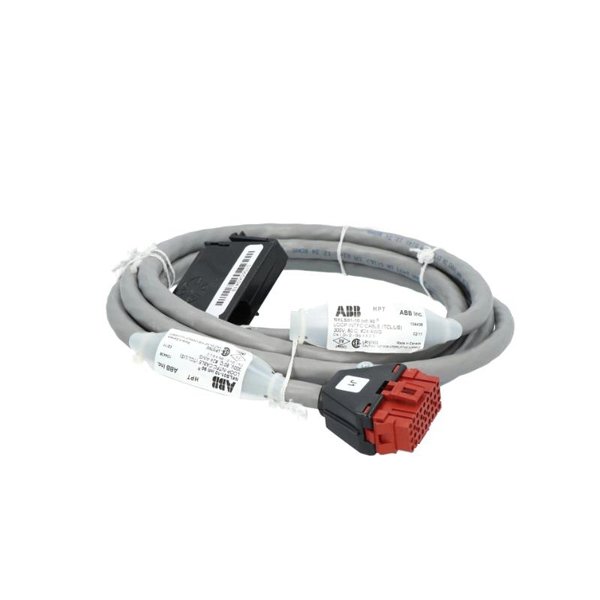

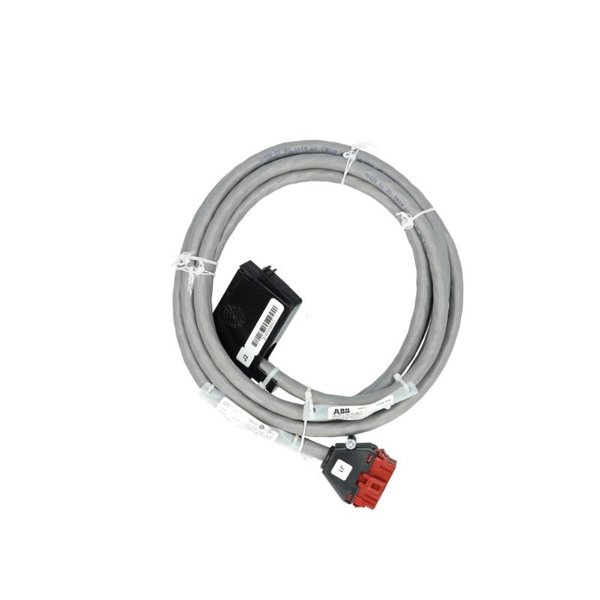

ABB Bailey NKLM01-10 Net Interface Cable

The ABB Bailey NKLM01-10 is a specialized network interface cable engineered for seamless communication within industrial automation systems, particularly for Bailey INFI 90 or Symphony systems. This robust cable ensures the reliable transmission of data between control modules and networked devices, playing a pivotal role in maintaining high-integrity communication in critical process control environments.

This cable is specifically tailored for interfacing network loop modules to communication processors, ensuring tight synchronization and minimal signal degradation. Designed with high-quality materials, the NKLM01-10 offers excellent shielding against electromagnetic interference (EMI), allowing it to operate reliably even in high-noise environments typical of industrial settings.

Product Specifications

Product Applications

The ABB NKLM01-10 network interface cable is typically used in a range of applications within industrial automation, especially where legacy Bailey systems are deployed. Some typical use cases include:

• Interfacing communication processors with control modules

• Integration in distributed control systems (DCS)

• Real-time data transmission in power generation plants

• Communication within chemical processing lines

• Oil and gas industry control system networking

• Pulp and paper manufacturing automation systems

Product Advantages

• High Reliability: Specifically engineered for ABB Bailey control systems, ensuring maximum compatibility and stable operation.

• Superior Signal Integrity: Excellent shielding reduces electromagnetic interference and signal loss.

• Industrial Durability: Rugged build with flame-retardant and chemical-resistant materials, suitable for harsh industrial environments.

• Plug-and-Play Compatibility: Pre-terminated connectors minimize installation errors and time.

• Legacy System Support: Designed to extend the lifespan and maintain the performance of existing INFI 90 infrastructure.

• Minimal Maintenance: Requires no active maintenance once installed, thanks to its robust and passive design.

FAQ

1. What is the primary function of the NKLM01-10 Net Interface Cable?

   The NKLM01-10 cable is used to establish communication between Bailey INFI 90 control modules and other network devices, ensuring reliable data transfer within distributed control systems.

2. Does this cable support hot-swapping during system operation?

   No, the cable is not designed for hot-swapping. All connections should be made with the system powered down to avoid communication errors or damage.

3. How does the shielding in NKLM01-10 improve performance?

   The dual-layer shielding (braid and foil) minimizes electromagnetic interference (EMI), which is essential in industrial environments where high-frequency noise is present.

4. Is the cable susceptible to mechanical wear over time?

   While the NKLM01-10 is built with industrial-grade materials, frequent bending or improper installation can lead to fatigue. It should be routed properly with strain reliefs in place.

5. Can this cable be used in vertical cable trays?

   Yes, provided that proper support is maintained along its length. The cable has sufficient rigidity and mechanical integrity for vertical routing.

6. What happens if the cable is extended using standard RJ or D-sub extension cables?

   Signal degradation and communication errors may occur. The cable is precision-manufactured to support a fixed length with minimal loss; extensions are not recommended.

7. Are both ends of the NKLM01-10 keyed to prevent incorrect connection?

   Yes, the connectors are mechanically keyed to ensure proper orientation and reduce the chance of incorrect insertion.

8. Does the cable require any special grounding procedures?

   The shielding must be grounded properly at one end to avoid ground loops. Standard ABB Bailey grounding practices should be followed.

9. What maintenance is required after installation?

   The cable itself requires no routine maintenance. However, periodic visual inspections for wear, corrosion, or strain at connection points are recommended.

10. Can the NKLM01-10 be co-routed with power cables in the same conduit?

    No, it should be routed separately from high-voltage power cables to prevent induced noise and maintain signal integrity.
