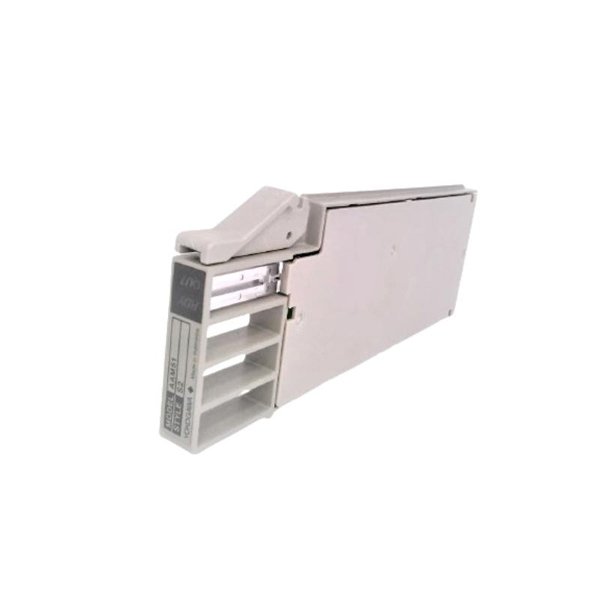

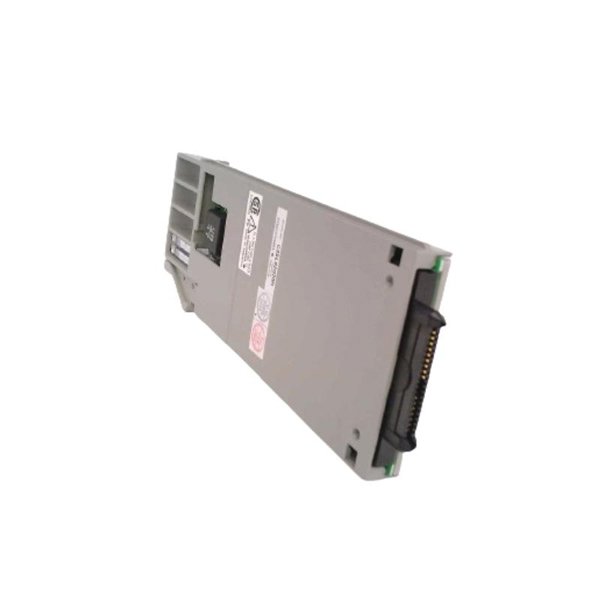

Yokogawa AAM51-S2 Current Voltage Output Module

The Yokogawa AAM51-S2 is a high-precision analog output module designed for integration within Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems (DCS). This module facilitates the transmission of accurate analog signals, both current and voltage, to field devices such as control valves, actuators, and variable frequency drives (VFDs). Its robust design ensures reliable performance in demanding industrial environments, making it an essential component in process automation and control applications.

Technical Specifications

Applications

The AAM51-S2 module is utilized in various industrial sectors for precise analog signal output. Its applications include:

• Control Valve Operation: Providing accurate current signals to position control valves in process systems.

• Variable Frequency Drive (VFD) Control: Delivering voltage signals to regulate motor speeds in HVAC and pumping systems.

• Process Automation: Facilitating analog signal transmission for temperature, pressure, and flow control in chemical and pharmaceutical industries.

• Power Generation: Managing analog outputs for turbine control, boiler management, and auxiliary systems.

• Oil and Gas Industry: Controlling actuators and monitoring equipment in upstream and downstream operations.

• Water and Wastewater Treatment: Regulating dosing pumps and monitoring sensors through analog signal outputs.

Product Advantages

• Dual Signal Output: Supports both current and voltage outputs, offering flexibility in various control scenarios.

• High Precision: 16-bit resolution ensures accurate signal transmission for critical control applications.

• Robust Isolation: Electrical isolation between channels and the control system enhances safety and reduces interference.

• Fast Response Time: Quick data update period facilitates real-time control and monitoring.

• Compact Design: Small footprint allows for efficient use of space within control cabinets.

• Hot Swappable: Enables module replacement without system downtime, ensuring continuous operation.

• Diagnostic Features: Built-in LED indicators provide immediate status information for maintenance and troubleshooting.

• Wide Compatibility: Seamless integration with Yokogawa’s CENTUM CS 3000 and CENTUM VP systems.

• Compliance and Certification: Meets international standards for safety and performance in industrial environments.

Frequently Asked Questions (FAQ)

1. Can the AAM51-S2 module output both current and voltage signals simultaneously?

   No, each channel must be configured for either current or voltage output, not both simultaneously.

2. Is the AAM51-S2 module compatible with other Yokogawa DCS systems?

   Yes, it is designed for use with CENTUM CS 3000 and CENTUM VP systems.

3. What is the maximum load resistance for current output?

   The module supports a load resistance of up to 750 Ω for current output.

4. Does the module support hot swapping?

   Yes, the AAM51-S2 can be replaced without shutting down the system.

5. What are the power supply requirements for the module?

   It requires a 24 V DC system power supply (38 mA or lower) and a 5 V DC internal power supply (10 mA or lower).

6. What is the resolution of the analog outputs?

   The module provides 16-bit resolution for high-precision signal output.

7. Is there electrical isolation between output channels?

   Yes, each output channel is electrically isolated from the control system.

8. What is the operating temperature range of the module?

   The module operates within a temperature range of 0 to 50°C (32 to 122°F).

9. How is the module mounted within the system?

   It is mounted on the I/O adaptor nest (A2BA3D) within the control cabinet.

10. Are there built-in diagnostics for the module?

    Yes, the module features LED indicators for channel status, module health, and power status.
