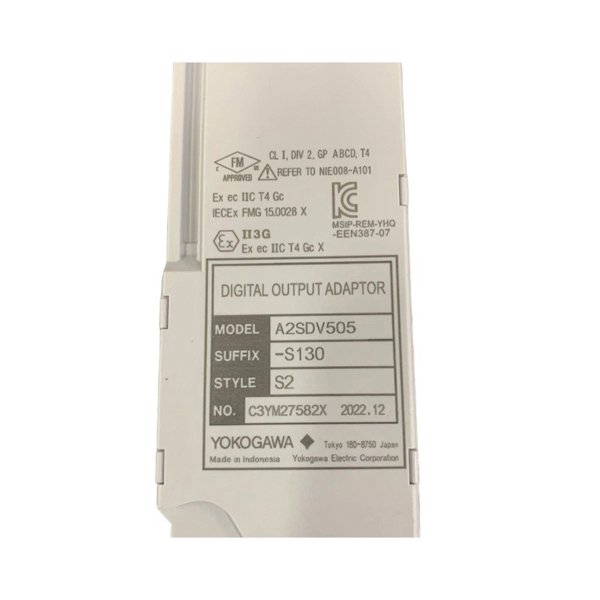

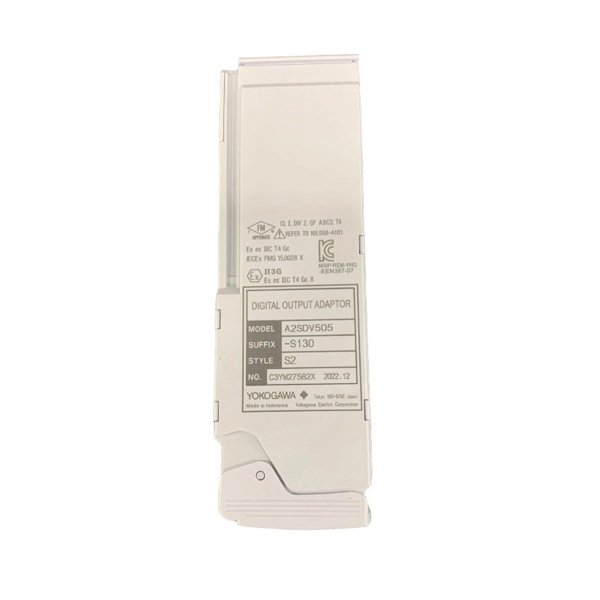

Yokogawa A2SDV505-S000 Digital Output Adapter

The Yokogawa A2SDV505-S000 is a high-performance safety relay module designed for industrial automation and control systems. It ensures reliable safety circuit operation, meeting stringent safety standards such as SIL3 and PLe. This module is widely used in machinery, manufacturing, and process industries to protect personnel and equipment from hazardous conditions.

Product Parameters

The technical specifications of the Yokogawa A2SDV505-S000 are as follows:

Product Applications

The A2SDV505-S000 is suitable for various safety-critical applications, including:

• Emergency Stop Circuits – Ensures immediate shutdown of machinery in hazardous situations.

• Safety Interlocks – Prevents access to dangerous areas during machine operation.

• Press & Welding Machines – Provides reliable safety control in heavy industrial equipment.

• Robotic Systems – Enhances operator safety in automated production lines.

• Conveyor Systems – Monitors and controls safety functions in material handling.

Product Advantages

1. High Safety Integrity – Complies with SIL3 and PLe standards, ensuring maximum safety.

2. Robust Construction – Durable design for harsh industrial environments.

3. Easy Integration – Compatible with standard DIN rail mounting.

4. Dual-Channel Monitoring – Redundancy ensures fail-safe operation.

5. Wide Voltage Range – Supports 24V DC with tolerance for fluctuations.

6. Quick Diagnostics – LED indicators for real-time status monitoring.

Frequently Asked Questions (FAQ)

1. What safety standards does the A2SDV505-S000 comply with?

   • It meets SIL3 (IEC 61508) and PLe (ISO 13849-1) standards.

2. What is the maximum load current of the relay contacts?

   • 5A at 24V DC for resistive loads.

3. Can this module be used in high-temperature environments?

   • Yes, it operates within -20°C to +55°C.

4. Is DIN rail mounting supported?

   • Yes, it is designed for standard DIN rail installation.

5. Does it have both NO and NC contacts?

   • Yes, it includes 2NO and 2NC contacts.

6. What certifications does this product hold?

   • CE, UL, and TÜV certifications.

7. How is the module’s status monitored?

   • Via built-in LED indicators.

8. Can it be used in emergency stop circuits?

   • Yes, it is ideal for emergency stop applications.

9. What is the expected lifespan of the relay?

   • Over 100,000 mechanical operations under rated conditions.

10. Is it compatible with other Yokogawa safety devices?

    • Yes, it integrates seamlessly with Yokogawa’s safety product range.
