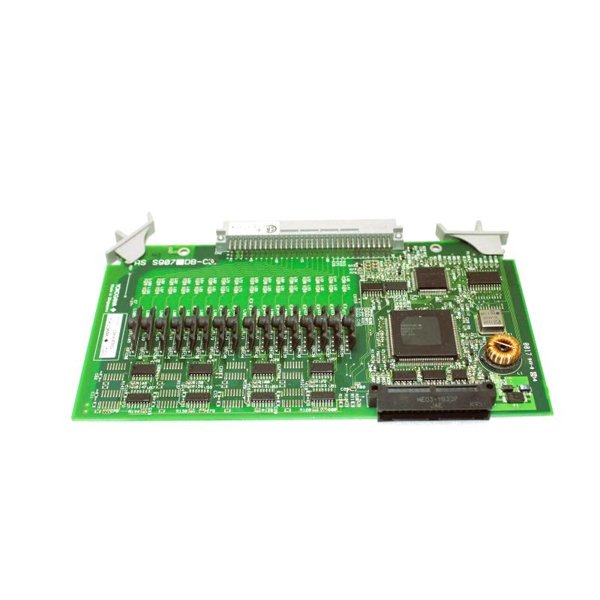

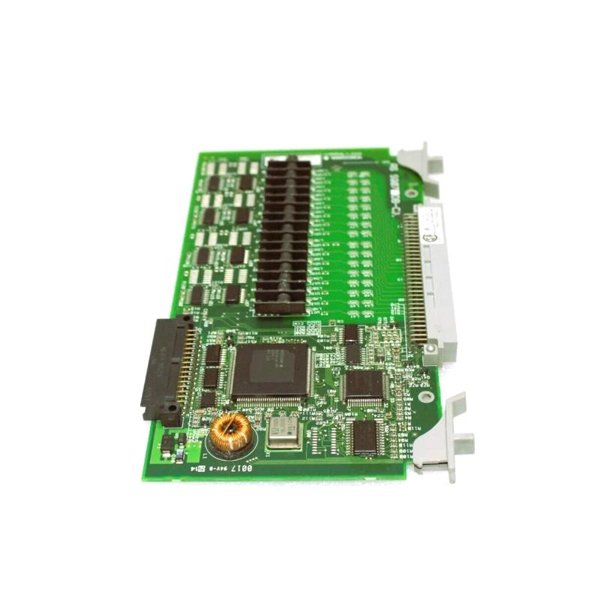

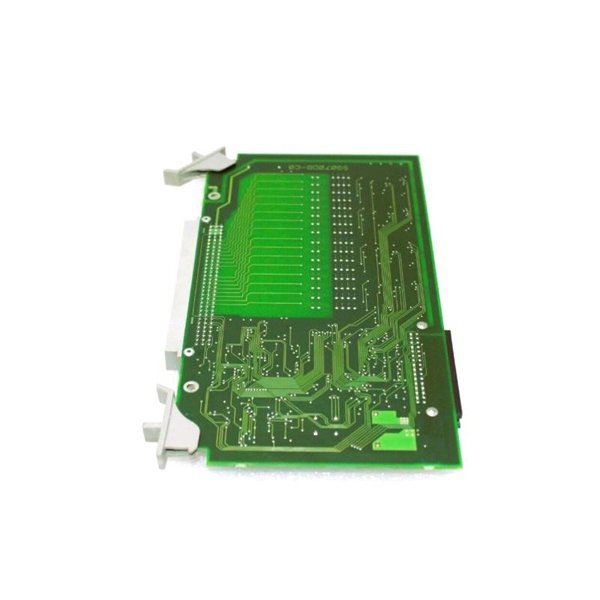

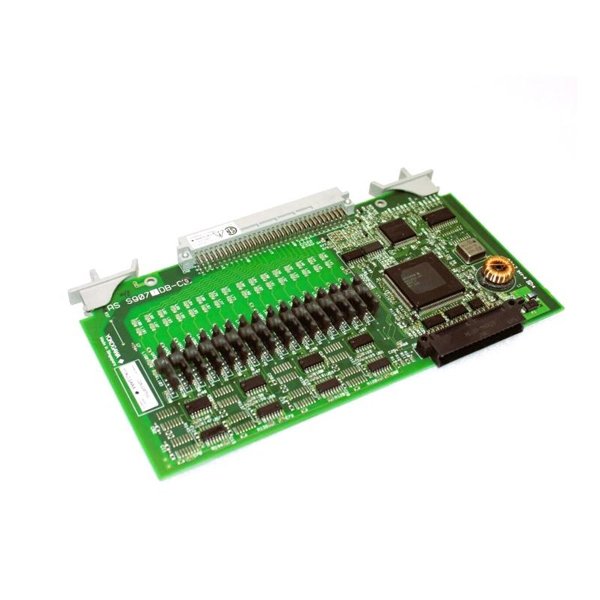

Yokogawa ADM11 Contact Input Module

The Yokogawa ADM11 is a 16-channel contact input module designed for seamless integration into Yokogawa’s CENTUM CS and CENTUM VP distributed control systems (DCS). This module facilitates the monitoring of discrete signals from field devices such as switches, pushbuttons, and relays, ensuring accurate and reliable data acquisition for process control applications.

Technical Specifications

Product Applications

The ADM11 module is engineered for a wide range of industrial applications requiring reliable contact input monitoring:

• Process Automation: Monitoring the on/off status of field equipment such as valves, pumps, and motors.

• Manufacturing Control: Supervising machinery and systems in manufacturing plants to ensure smooth operation.

• Building Automation: Controlling HVAC, lighting, and security systems for optimal building performance.

• Energy Management: Monitoring circuit breakers, switches, and other electrical components in power distribution systems.

• Water Treatment Facilities: Tracking the status of pumps, filters, and other equipment in water and wastewater treatment plants.

• Transportation Systems: Monitoring signals and switches in railway and other transportation control systems.

Product Advantages

• High Channel Density: 16 input channels in a compact module reduce space requirements and simplify wiring.

• Fast Response Time: Quick detection of input signal changes ensures timely system responses.

• Robust Isolation: Galvanic isolation between channels and the system enhances safety and prevents signal interference.

• Wide Voltage Range: Supports a broad input voltage range, accommodating various field devices.

• Energy Efficient: Low power consumption contributes to overall system efficiency.

• Easy Integration: Seamlessly integrates with Yokogawa’s CENTUM CS and CENTUM VP systems.

• Durable Design: Built to withstand harsh industrial environments with a wide operating temperature range.

• Compliance: Meets international standards for safety and environmental compliance.

Frequently Asked Questions (FAQ)

1. What is the input voltage range of the ADM11 module?

   • The module accepts input voltages ranging from 4 to 32 V DC.

2. How many input channels does the ADM11 have?

   • It features 16 discrete input channels.

3. What type of inputs does the ADM11 support?

   • The module is designed for dry contact inputs, suitable for monitoring switches, pushbuttons, and similar devices.

4. Is the ADM11 module isolated?

   • Yes, it provides galvanic isolation between input channels and the system to prevent interference and enhance safety.

5. What is the response time of the ADM11?

   • The module has a fast response time of ≤ 5 milliseconds.

6. Can the ADM11 operate in harsh environments?

   • Yes, it operates within a temperature range of 0°C to 60°C and humidity levels of 5% to 95% RH (non-condensing).

7. What is the power supply requirement for the ADM11?

   • The module requires a 24 V DC power supply.

8. How is the ADM11 mounted?

   • It is designed for DIN rail mounting, facilitating easy installation in control panels.

9. What are the dimensions and weight of the ADM11?

   • Dimensions: 125 x 130 x 248 mm; Weight: 0.14 kg.

10. Is the ADM11 compatible with Yokogawa’s DCS systems?

    • Yes, it is compatible with CENTUM CS and CENTUM VP distributed control systems.
