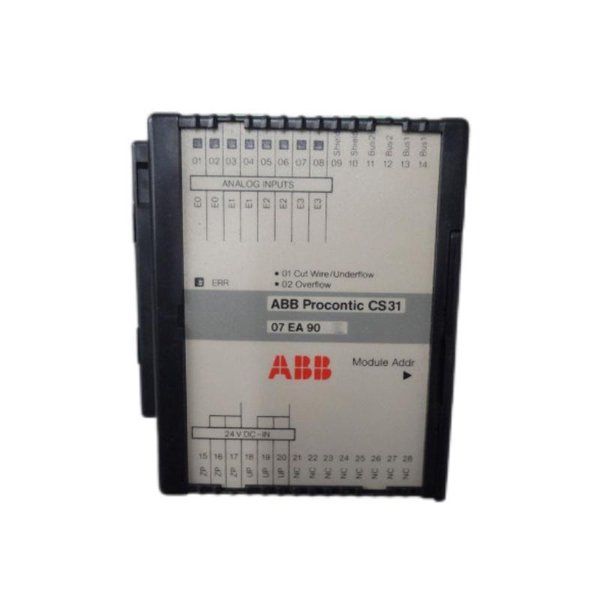

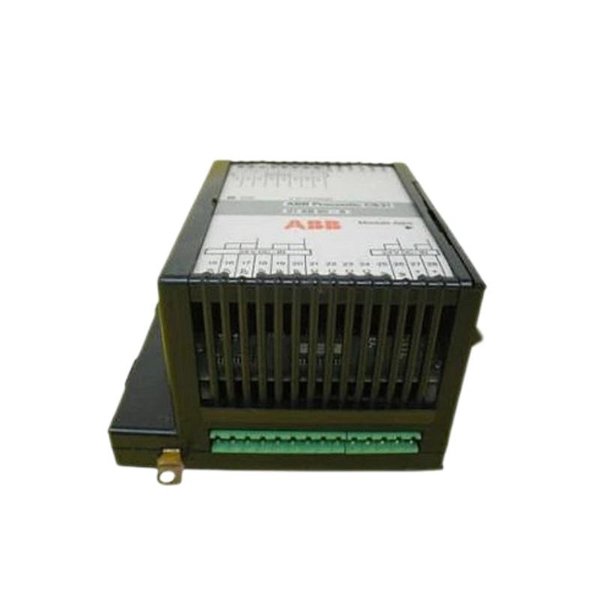

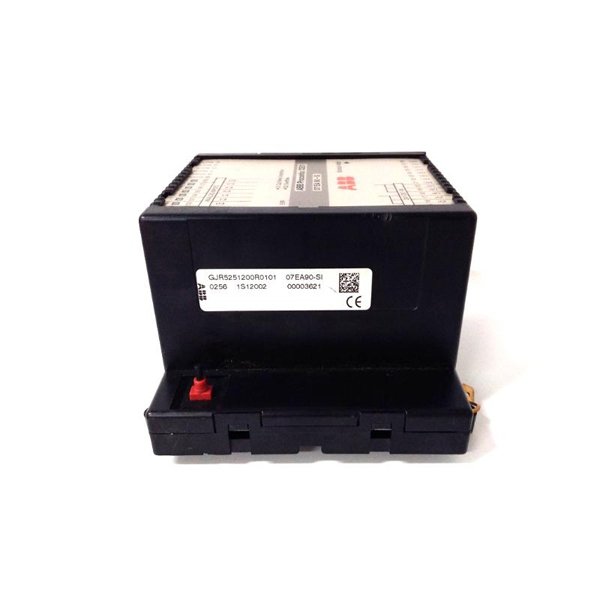

ABB 07EA90 GJR5251200R0101 Analog Input Module

The ABB 07EA90 GJR5251200R0101 Analog Input Module is a reliable and industrial-grade analog acquisition unit designed for use in ABB’s Advant Controller 31 systems. It offers multi-channel analog input capabilities for integrating various sensors that output current or voltage signals. This module plays a crucial role in process monitoring and control systems where analog data accuracy and stability are paramount.

Equipped with 8 analog channels and configurable for multiple input ranges, the 07EA90 provides flexible integration for signals such as 0–10 V, ±10 V, and 4–20 mA. It includes galvanic isolation between inputs and the system, ensuring enhanced protection and signal integrity even in electromagnetically noisy industrial environments. This module is a dependable choice in sectors such as oil and gas, power generation, water treatment, and manufacturing automation.

Technical Specifications

Applications

The ABB 07EA90 module is widely used in the following application domains:

• Chemical and Pharmaceutical Plants

  Captures real-time analog signals for temperature, level, and flow to ensure product consistency and safety.

• Oil & Gas Facilities

  Ideal for pressure and temperature measurement in pipeline systems, separators, and compressors.

• Power Plants

  Used in monitoring boiler performance, turbine parameters, and environmental compliance systems.

• Water Treatment Facilities

  Acquires analog inputs for pH, flow rate, and turbidity monitoring in both clean and wastewater systems.

• Manufacturing and Industrial Automation

  Integration with PLC systems to control and monitor analog process variables in assembly lines.

• Food & Beverage Industry

  Supports process quality through temperature and humidity measurement in production zones.

Key Advantages

• Flexible Signal Compatibility

  Can accommodate both voltage and current inputs, allowing for greater deployment versatility.

• High Measurement Accuracy

  12-bit resolution ensures fine signal resolution and precise data acquisition.

• Robust Electrical Isolation

  Galvanic isolation prevents cross-talk and protects sensitive controller electronics.

• Industrial Durability

  Withstands extreme temperature and humidity ranges, suitable for field and panel installations.

• Integrated Diagnostics

  Fast detection of input faults reduces downtime and supports predictive maintenance.

• Compact Footprint

  Saves cabinet space, making it ideal for retrofit and space-constrained installations.

• Long-Term ABB Ecosystem Support

  Guaranteed compatibility with Advant and MOD 300 systems ensures seamless lifecycle continuity.

Frequently Asked Questions (FAQ)

1. What input signal types does the ABB 07EA90 support?

   It supports both voltage (e.g., 0–10 V, ±10 V) and current (e.g., 0–20 mA, 4–20 mA) input signals.

2. How many channels are available on this module?

   It features 8 analog input channels, each configurable for voltage or current.

3. Does the module include signal isolation?

   Yes, it offers galvanic isolation between input channels and from inputs to the system.

4. Is this module hot-swappable?

   No, it should be installed or replaced during system power-down to avoid circuit damage.

5. What ABB systems are compatible with 07EA90?

   It’s designed primarily for the Advant Controller 31 and can integrate with MOD 300 systems.

6. What is the resolution of signal conversion?

   The module provides 12-bit resolution, which offers good accuracy for most process needs.

7. Can it be used in high-temperature environments?

   It supports operation in temperatures up to +60°C and storage up to +70°C.

8. Is it suitable for outdoor installations?

   It is primarily designed for indoor panels, but with proper enclosure, it can operate in harsh environments.

9. What is the weight and size of the module?

   It weighs 0.25 kg and measures 90 x 60 x 45 mm.

10. Are diagnostics available on this module?

    Yes, it includes onboard diagnostics for power status and channel integrity.
