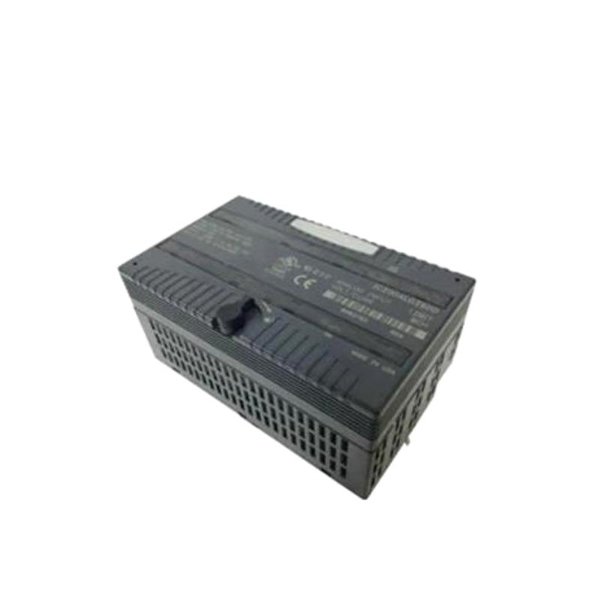

General Electric IC200ALG265 Analog Input Module

The GE IC200ALG265 is an analog input module designed for use with the GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs). This module offers reliable and high-precision analog input for a variety of industrial automation applications. It is equipped with 16 analog input channels that allow for the processing of both voltage and current inputs, making it ideal for systems that require continuous and accurate data acquisition.

This module is designed to provide flexibility and precision for industrial control systems that need to monitor variables such as temperature, pressure, and flow, which are commonly used in process control, manufacturing, and automation environments.

Product Specifications

Below are the key specifications for the GE IC200ALG265 Analog Input Module:

Product Applications

The GE IC200ALG265 Analog Input Module is used in a wide range of applications where accurate and reliable analog signal acquisition is required. Some of the primary use cases include:

• Process Control: The module can be integrated into systems to monitor analog signals like temperature, pressure, flow rate, and level from field sensors.

• Manufacturing Automation: It is widely used in automated manufacturing systems to collect data from sensors and enable precise control and monitoring.

• Building Automation: The module can be used in building control systems for HVAC, lighting, and environmental monitoring.

• Energy Monitoring: The IC200ALG265 can be employed in energy monitoring systems, capturing inputs from energy meters and power quality sensors.

• Industrial Equipment Monitoring: The module is commonly used to acquire data from industrial machinery, ensuring operations are within specified parameters.

• Test Systems: It can be used in test and measurement applications where accurate signal measurement is essential for testing the functionality of various devices.

Product Advantages

The GE IC200ALG265 Analog Input Module comes with several notable advantages:

1. High Precision and Accuracy: With a 12-bit resolution and ±0.1% accuracy, the IC200ALG265 ensures precise and reliable data acquisition, making it suitable for high-performance industrial applications.

2. Wide Input Range: This module supports both voltage (0-10V) and current (4-20mA) input types, providing flexibility in connecting various types of analog sensors.

3. Signal Isolation: The module provides 500V RMS isolation between channels, minimizing the risk of signal interference and ensuring the integrity of data collected.

4. Compact and Efficient Design: With dimensions of just 3.25″ x 6.1″ x 2.0″ and a weight of only 0.6 lbs, the module’s compact design makes it ideal for applications with limited space.

5. Easy Integration: The IC200ALG265 is a plug-in module designed for the GE Fanuc Series 90-30 PLC, allowing for quick and simple installation and integration into existing systems.

6. Wide Operating Temperature Range: The module operates within a temperature range of 0°C to +60°C, which allows it to be used in diverse environmental conditions.

7. Durable and Robust Construction: Built with a metal housing, the IC200ALG265 offers enhanced durability, making it suitable for use in industrial environments.

Frequently Asked Questions (FAQs)

1. What type of input signals does the GE IC200ALG265 support?

   • The module supports both voltage (0-10V) and current (4-20mA) analog input signals.

2. How many channels does the IC200ALG265 have?

   • The module offers 16 input channels for signal acquisition.

3. What is the resolution of the IC200ALG265?

   • The module has a 12-bit resolution, which allows for high precision in analog signal measurements.

4. What is the typical power consumption of the module?

   • The IC200ALG265 typically consumes 200 mA at 5V DC.

5. What is the accuracy of the module?

   • The IC200ALG265 offers an accuracy of ±0.1% of full scale.

6. What is the input impedance for the voltage input channels?

   • The input impedance for the voltage input channels is greater than 10 MΩ.

7. Can the IC200ALG265 be used in harsh environments?

   • Yes, the module is designed to operate in temperatures ranging from 0°C to +60°C, making it suitable for most industrial environments.

8. What kind of mounting does the IC200ALG265 use?

   • The module is designed for plug-in installation into the GE Fanuc Series 90-30 PLC.

9. What is the isolation rating of the IC200ALG265?

   • The module provides 500V RMS isolation between input channels.

10. What is the weight of the IC200ALG265?

    • The module weighs 1.36 kg.
