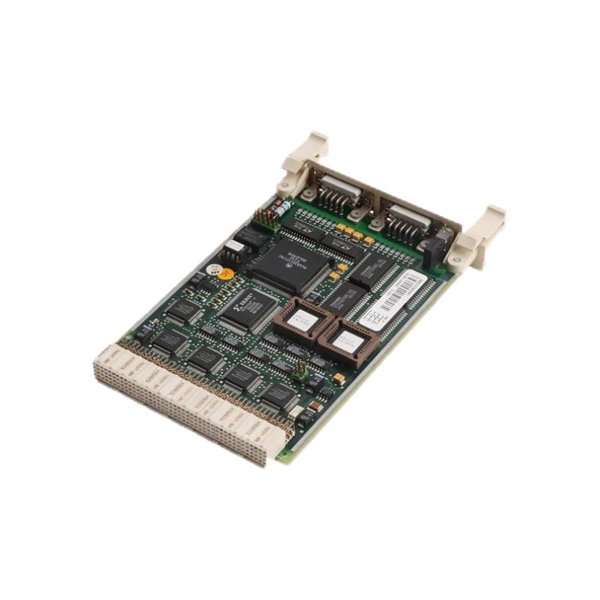

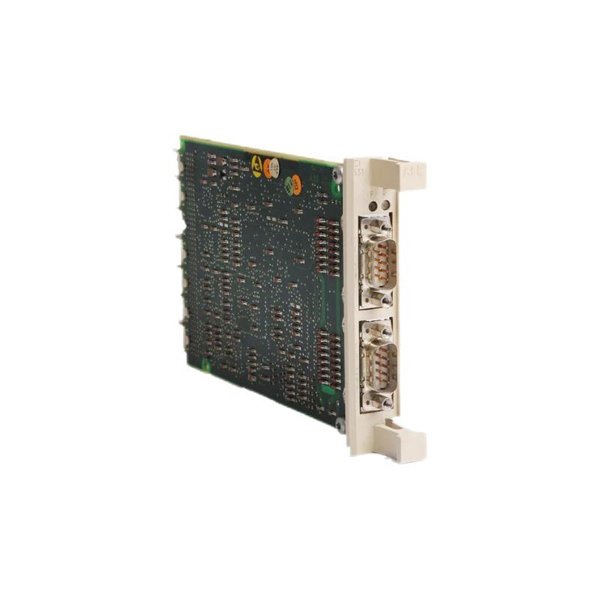

ABB CI531 3BSE003825R1 Interface Module

The ABB CI531 3BSE003825R1 is a versatile communication interface module used in ABB’s AC 800M controller family within the Industrial IT Extended Automation System 800xA. The CI531 is primarily designed to connect the controller to field devices using the PROFIBUS-DP protocol, enabling seamless and efficient data exchange between control and field levels.

This module plays a critical role in integrating process instrumentation, motor control centers, and distributed I/O within ABB’s automation environment. Its robust construction, advanced diagnostics, and real-time communication capabilities make it a reliable solution for modern industrial control systems requiring consistent, high-speed performance and interoperability with various vendor equipment.

Product Specifications

Product Applications

• Process Automation Systems in chemical, pharmaceutical, oil & gas, and food industries

• Industrial Communication Integration between PLCs and field devices using PROFIBUS-DP

• Remote I/O Access for sensors, actuators, and variable frequency drives

• Integration of Third-Party Equipment into ABB’s AC 800M system

• Real-Time Monitoring and Diagnostics in manufacturing and power plants

• Motor and Drive Communication Gateways within control systems

Product Advantages

• Reliable PROFIBUS-DP Connectivity: Ensures consistent and robust communication with field devices.

• Seamless System Integration: Designed specifically for ABB’s AC 800M platform to ensure optimal performance.

• Compact Form Factor: Allows high-density I/O setups without compromising space in control cabinets.

• Diagnostic Support: Built-in LEDs and error indicators aid in rapid fault identification and maintenance.

• Industrial Durability: Operates reliably in harsh environmental conditions with extended temperature and humidity range.

• Standard Compliance: Adheres to international fieldbus standards ensuring compatibility and interoperability.

• Energy Efficient: Low power consumption supports energy-efficient control architectures.

• Easy Replacement: Hot-swappable in supported configurations, minimizing system downtime during maintenance.

• Long Product Life Cycle: Ensures long-term availability and support in industrial environments.

• Backwards Compatibility: Compatible with earlier versions of ABB control systems for smooth upgrades.

Frequently Asked Questions (FAQ)

1. What protocol does the CI531 interface module support?

   The CI531 supports the PROFIBUS-DP protocol for communication with field devices.

2. Is the CI531 compatible with other ABB control systems besides AC 800M?

   It is specifically designed for the AC 800M platform but may be compatible with other 800xA-based configurations.

3. Can the CI531 be used with third-party field devices?

   Yes, as long as the field device supports PROFIBUS-DP standards.

4. What is the maximum baud rate supported by the CI531?

   It supports up to 12 Mbit/s, which covers the full PROFIBUS-DP range.

5. Does the CI531 require external configuration software?

   Yes, configuration is done using ABB’s Control Builder M or System 800xA configuration tools.

6. Can the module be mounted in any orientation?

   It is recommended to mount it vertically on a DIN rail to ensure proper ventilation and operation.

7. How is error detection handled?

   Built-in diagnostic LEDs and system feedback help identify and isolate communication or module faults.

8. What kind of field devices can be connected?

   Any PROFIBUS-DP-compatible device, including I/O modules, drives, sensors, and actuators.

9. What is the life expectancy of the CI531?

   Under normal operating conditions, it is expected to last over 10 years.

10. How do I perform firmware upgrades on CI531?

    Firmware upgrades are performed via the control system software using ABB’s maintenance suite.
