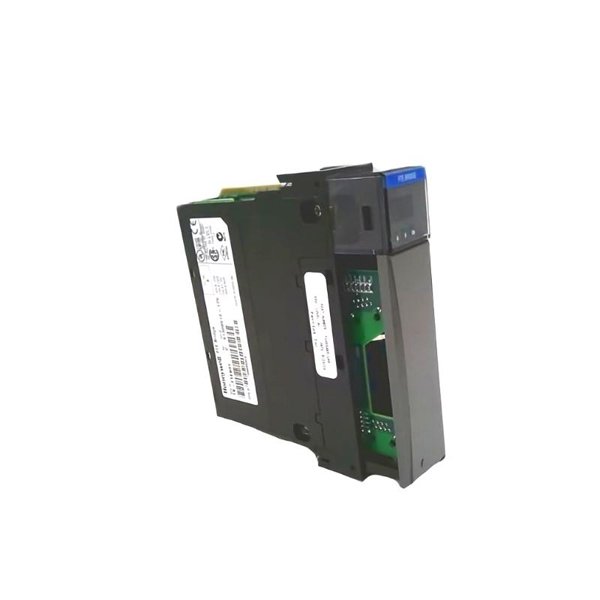

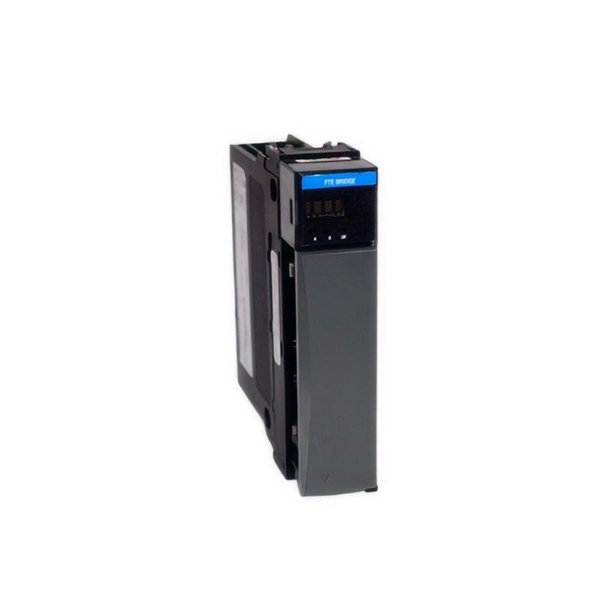

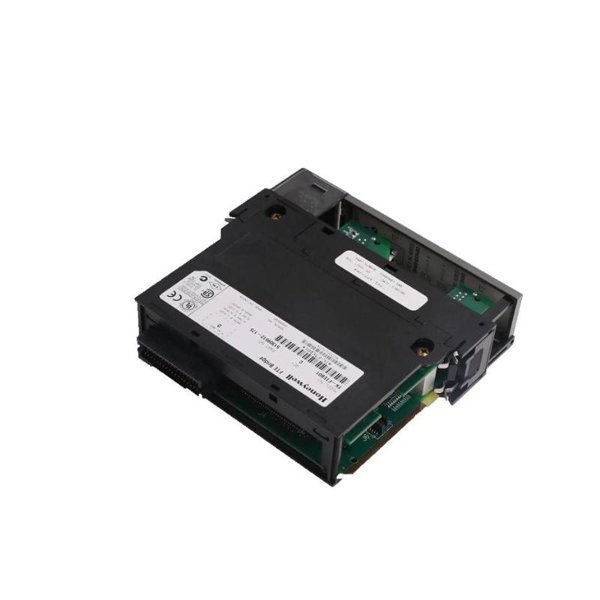

Honeywell TK-FTEB01 51309512-175 Ethernet Module

The Honeywell TK-FTEB01 51309512-175 Ethernet Module is a high-performance communication interface designed to integrate seamlessly within Honeywell’s Experion LS distributed control systems. This module facilitates reliable and efficient Ethernet connectivity, enabling robust data exchange between control systems and field devices in industrial automation environments.

By supporting Fast Ethernet (FTE) protocols, the TK-FTEB01 ensures high-speed data transmission, enhancing system responsiveness and operational efficiency. Its compact design and compatibility with Chassis Series-A make it a versatile solution for various industrial applications requiring dependable network communication.

Product Specifications

Product Applications

• Industrial Automation and Control Systems:

  Facilitates Ethernet communication between control systems and field devices, ensuring real-time data exchange and system coordination.

• Process Control and Monitoring:

  Enables precise monitoring and control of industrial processes by providing reliable network connectivity.

• Manufacturing and Assembly Lines:

  Supports high-speed data transfer for synchronized operations in manufacturing environments.

• Power Generation and Distribution Systems:

  Ensures dependable communication in energy sector applications, enhancing system stability and efficiency.

• System Upgrades and Expansions:

  Provides scalability for existing control systems, allowing for seamless integration of additional Ethernet-enabled devices.

• Remote Monitoring and Diagnostics:

  Enables remote access to system data, facilitating proactive maintenance and troubleshooting.

Product Advantages

• High-Speed Communication:

  Supports 10/100 Mbps data transfer rates, ensuring rapid and reliable Ethernet connectivity.

• Robust Protocol Support:

  Compatible with multiple communication protocols, including TCP/IP, UDP, FTP, and HTTP, enhancing integration flexibility.

• Wide Operating Range:

  Operates effectively across a broad temperature range, suitable for various industrial environments.

• Compact and Lightweight Design:

  Space-efficient form factor allows for easy integration into existing systems without significant modifications.

• Industrial-Grade Reliability:

  Built with high-quality components to withstand harsh industrial conditions, ensuring long-term operational stability.

• Ease of Installation:

  DIN rail mounting simplifies installation and maintenance processes.

• Enhanced System Scalability:

  Facilitates the addition of Ethernet-enabled devices, supporting system growth and adaptation to changing operational needs.

• Compliance and Certification:

  Meets international standards, ensuring compatibility and safety in global applications.

• Manufacturer Support:

  Backed by Honeywell’s extensive support network, providing technical assistance and service options.

• Long-Term Availability:

  Honeywell’s commitment to product longevity ensures continued availability for system maintenance and upgrades.

FAQ

1. What is the primary function of the TK-FTEB01 module?

   It provides Ethernet connectivity for Honeywell’s Experion LS I/O modules, facilitating reliable network communication in industrial automation systems.

2. Which communication protocols are supported by the TK-FTEB01?

   The module supports TCP/IP, UDP, FTP, and HTTP protocols, ensuring versatile integration options.

3. Is the TK-FTEB01 compatible with all Honeywell control systems?

   It is specifically designed for use with Honeywell’s Experion LS systems, particularly within Chassis Series-A configurations.

4. What are the power requirements for the TK-FTEB01?

   The module operates within a voltage range of 1.2 to 24 VDC and requires an input current between 7 and 20 mA.

5. Can the TK-FTEB01 be used in outdoor environments?

   With an IP65 protection rating and a wide operating temperature range, the module is suitable for various industrial environments, including those with challenging conditions.

6. Does the module support redundant network configurations?

   While the TK-FTEB01 provides reliable Ethernet connectivity, specific redundancy features depend on the overall system architecture and configuration.

7. What is the typical installation method for the TK-FTEB01?

   The module is designed for DIN rail mounting, facilitating straightforward installation within control panels.

8. Are there any specific maintenance requirements for the TK-FTEB01?

   Routine inspection for dust accumulation and connector integrity is recommended. No mechanical maintenance is required under normal operating conditions.

9. What is the expected operational lifespan of the TK-FTEB01?

   The module is built with industrial-grade components, offering a projected operational life exceeding 10 years under standard industrial conditions.

10. Is firmware upgrading supported for the TK-FTEB01?

    Firmware upgrade capabilities depend on the system configuration and tools used.
