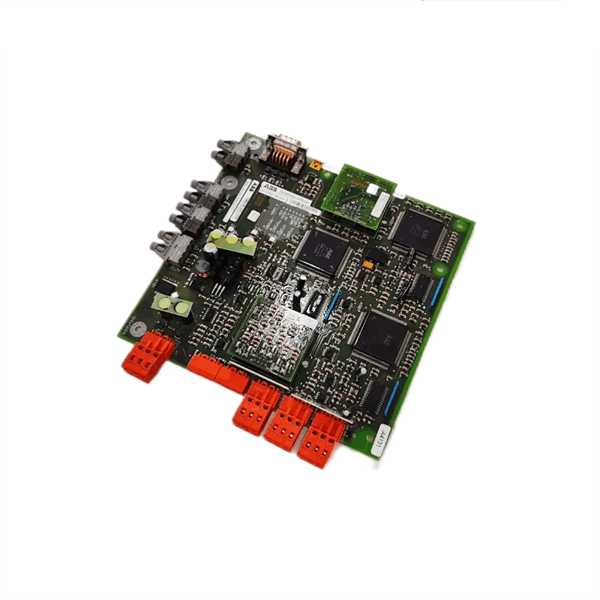

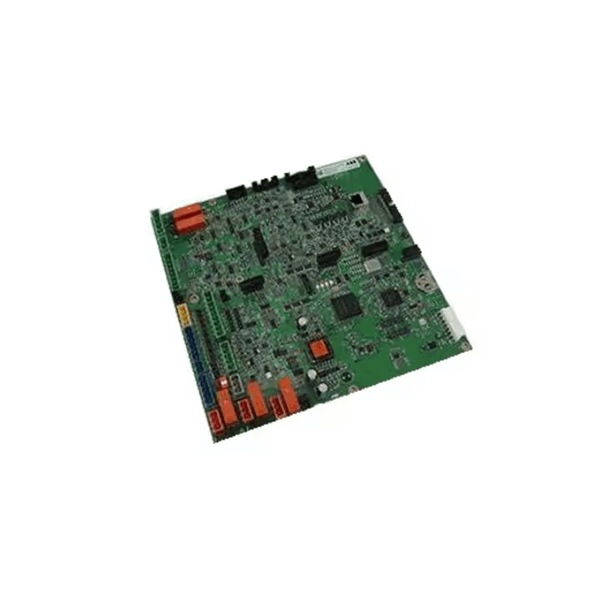

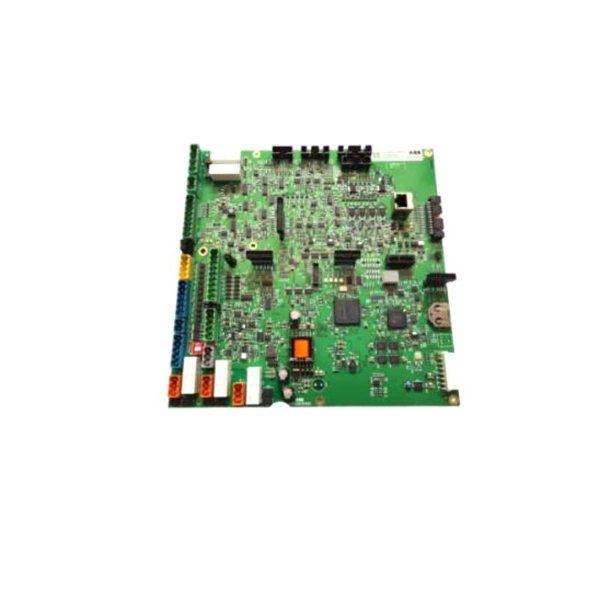

ABB SDCS-PIN-H01 3ADT318800R1501 Power interface board

Its design adheres to ABB’s high standards for safety, signal fidelity, and durability. With robust input/output compatibility, it plays a critical role in managing triggering signals to the thyristor bridge circuits, making it an integral component in drive and motor control applications across a wide range of industries.

Product Advantages

• Reliable Pulse Transmission: Provides high-integrity triggering signals for precise thyristor control.

• Galvanic Isolation: Ensures complete electrical isolation between control and power sections.

• Compact Design: Suitable for integration in tight installation spaces without performance compromise.

• Long Service Life: Designed for continuous operation in harsh industrial conditions with minimal failure rates.

• Seamless Integration: Fully compatible with ABB DCS systems and easy to retrofit.

• EMC Optimized: High resistance to electromagnetic interference for noise-sensitive environments.

• Easy Maintenance: Modular layout and clear diagnostics make replacements and testing straightforward.

Technical Specifications

Product Applications

The ABB SDCS-PIN-H01 is widely used in industrial environments where DC motor drives are essential. Typical application areas include:

• Metallurgical Industries (rolling mills, furnaces)

• Pulp & Paper Plants

• Plastic Extrusion Lines

• Cement Plants

• Textile Manufacturing

• Mining Operations

• Marine Propulsion Systems

• Elevator and Crane Control Systems

Its primary function is to deliver timing-critical pulses that control thyristors within DCS500/DCS600 drives.

Installation Guidelines

1. Power Down the System: Ensure the main drive is completely powered off before handling the module.

2. Observe Anti-static Precautions: Use grounding wrist straps and anti-static mats to avoid electrostatic damage.

3. Insert into Proper Slot: Plug the module into the designated SDCS slot in the control rack of the drive.

4. Secure the Module: Once inserted, ensure it is locked in place using the rack retention clips.

5. Check LED Indicators: Verify status indicators once powered on to confirm successful pulse transmission.

6. Functionality Testing: Perform signal tests before initiating the full drive operation.

Frequently Asked Questions (FAQ)

Q1: What is the main function of the SDCS-PIN-H01 module?

A1: Its primary function is to transmit precise firing pulses to the thyristors in DC drive systems like DCS500/DCS600.

Q2: Can this module be used in non-ABB systems?

A2: It is optimized for ABB systems and may not function properly in non-ABB environments.

Q3: Is it possible to use SDCS-PIN-H01 in both DCS500 and DCS600?

A3: Yes, the module is compatible with both DCS500 and DCS600 series drives.

Q4: Does this module require separate power supply?

A4: No, it draws power directly from the drive’s control supply.

Q5: What happens if the pulse interface fails?

A5: Failure can prevent correct thyristor triggering, leading to motor malfunction or shutdown.

Q6: Are any software configurations needed post-installation?

A6: Typically no, unless your system requires customized logic or pulse adjustments.

Q7: Can this module be hot-swapped?

A7: No, always power down the system before removing or inserting the module.

Q8: How to identify if the module is working correctly?

A8: LED indicators on the module show pulse status and faults.

Q9: What are common signs of a faulty SDCS-PIN-H01?

A9: Symptoms include irregular drive performance, absence of firing pulses, or error codes from the DCS.

Q10: How often should this module be replaced?

A10: Under normal operation, it can last for many years. Replacement is typically only needed upon failure or during system upgrades.
