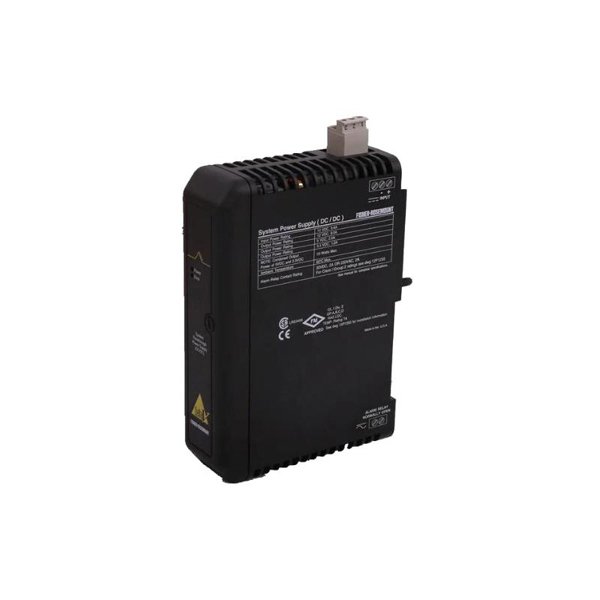

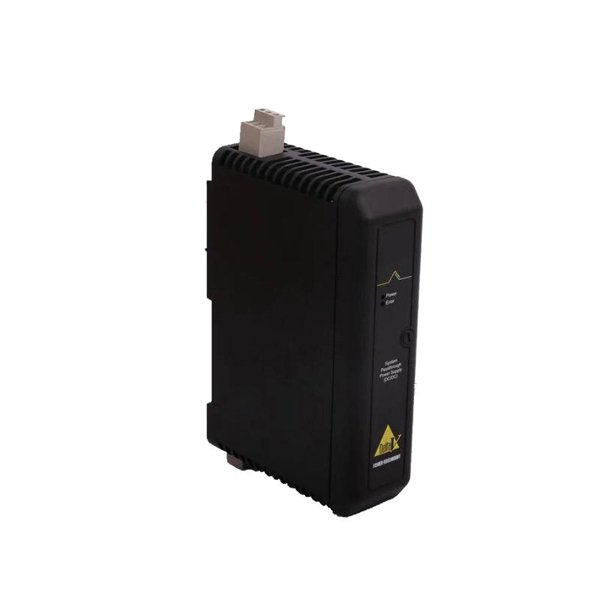

Emerson KJ1501X1-BB1 12P0678X032 Power Supply Module

The Emerson KJ1501X1-BB1 12P0678X032 Power Supply Module is an integral component within Emerson’s DeltaV control system, designed to provide a stable and reliable power source for a wide range of automation equipment. This power supply module plays a crucial role in ensuring continuous operation and optimal performance of the system by delivering consistent DC power to connected modules and devices.

With its robust design, the KJ1501X1-BB1 is engineered for industrial environments where reliability, durability, and uninterrupted power are paramount. This module ensures that systems powered by the DeltaV platform can perform with high efficiency, supporting the complex needs of automation in various industries such as oil & gas, chemical processing, pharmaceuticals, and power generation.

Product Specifications

Product Applications

The Emerson KJ1501X1-BB1 12P0678X032 Power Supply Module is designed for use in a variety of industrial and automation applications. Some of its common uses include:

1. Industrial Automation: Powering the DeltaV control systems in industrial automation setups, ensuring uninterrupted power delivery to critical control and monitoring equipment.
2. Process Control Systems: In chemical, petrochemical, and pharmaceutical plants, where reliable power is required for monitoring and controlling processes.
3. Power Generation Plants: Supplying power to control systems that manage electrical grids, turbines, and other components of power generation facilities.
4. Oil & Gas Industry: Used in offshore and onshore installations, where continuous power supply is necessary to manage operations such as drilling, production, and safety systems.
5. Building Automation: Powers equipment used in managing HVAC, lighting, and other automated building systems to ensure optimal performance.
6. Safety and Alarm Systems: Provides power for safety-critical systems, including fire alarms and emergency response systems.

Advantages

1. High Efficiency: With an efficiency rating of 90% or greater, the KJ1501X1-BB1 module minimizes energy consumption, reducing operational costs and environmental impact.
2. Compact and Robust Design: The module’s compact dimensions (110mm x 160mm x 130mm) ensure easy integration into existing systems while maintaining a rugged design to withstand harsh industrial environments.
3. Wide Operating Temperature Range: With an operating temperature range from -20°C to 60°C, it performs reliably in both extreme heat and cold, making it suitable for use in challenging environments.
4. Reliable Power Delivery: The 24V DC output ensures that the connected equipment receives a steady, consistent supply of power, reducing the risk of malfunctions or system downtime.
5. Advanced Protection Features: The module includes overcurrent, overvoltage, and thermal protection, ensuring long-term reliability and protecting against unexpected power surges.
6. Easy Integration: The KJ1501X1-BB1 module is designed for seamless integration with other DeltaV control system components, making it easy to add or replace in existing setups.
7. LED Indicators: Provides clear operational status via LED indicators, allowing for quick identification of faults or issues.
8. Compliance with Global Standards: Certified for use in a variety of international markets with CE, UL, ATEX, and CSA certifications, ensuring the module meets global safety and regulatory standards.
