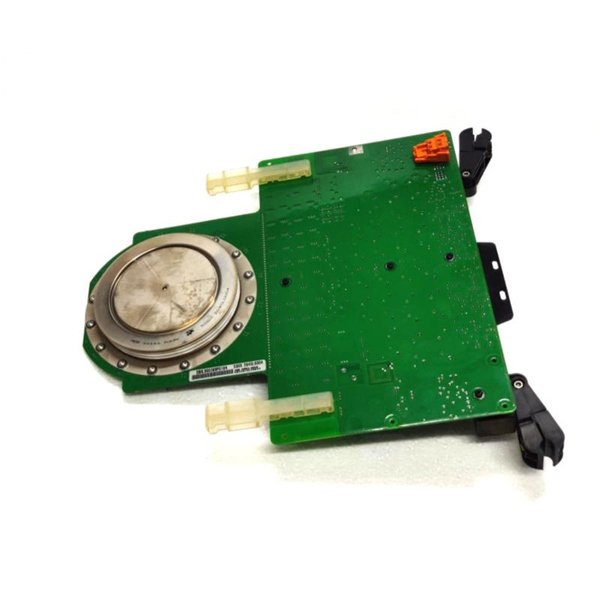

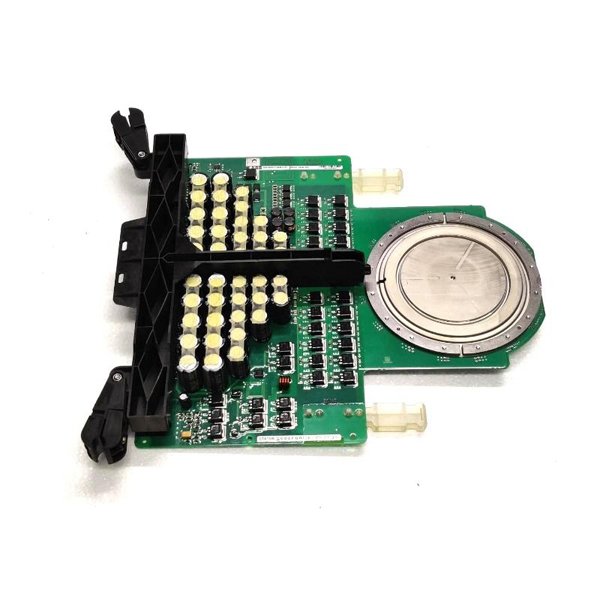

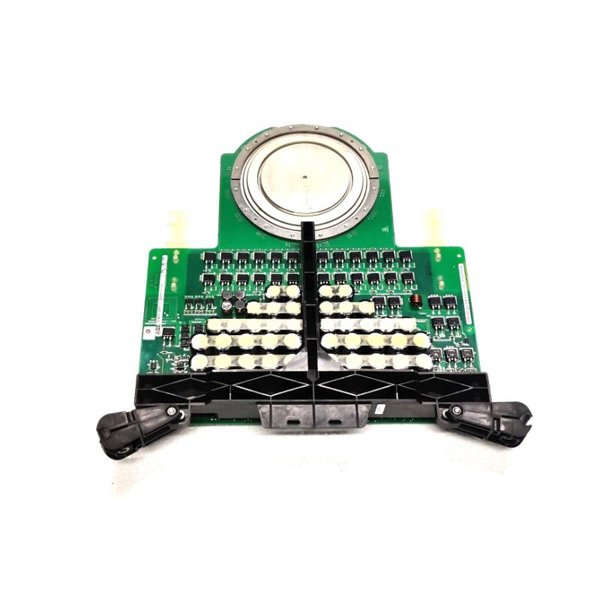

ABB 5SHX2645L0004 3BHL000389R0104 IGCT-RC Module
Manufacturer:ABB
Product Number:5SHX2645L0004 3BHL000389R0104
Product Type:IGCT-RC Module
Origin:Sweden (SE)
Dimensions:140 × 62 × 30 mm
Weight:0.4 kg
Views:47
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 5SHX2645L0004 3BHL000389R0104 is an Integrated Gate-Commutated Thyristor (IGCT) Reverse Conducting (RC) module, designed for high power, high reliability switching applications. It combines robust performance and efficient power control in industrial systems, particularly in traction, drives, and energy conversion.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | IGCT-RC Module |
| Model Number | 5SHX2645L0004 / 3BHL000389R0104 |
| Type | Reverse Conducting IGCT |
| Voltage Rating | 4500 V |
| Current Rating | 4000 A |
| Turn-off Capability | High |
| Commutation Type | Hard switching |
| Mounting Type | Press Pack |
| Application Area | High-power industrial control |
| Cooling Method | Direct liquid or air cooling |
| Dimensions | 140 × 62 × 30 mm |
| Weight | 0.4 kg |
Applications
-
Medium-voltage drives
-
Traction converters
-
Power grid converters
-
Static synchronous compensators (STATCOM)
-
High-voltage DC transmission (HVDC)
-
Energy storage systems
Product Advantages
-
High current and voltage handling
-
Integrated gate and RC snubber structure
-
Efficient thermal design for improved cooling
-
Robust and reliable under high switching stress
-
Reduced system complexity due to compact design
-
Low losses enable high system efficiency
FAQ
Q1: What type of device is the 5SHX2645L0004 module?
A1: It is an Integrated Gate-Commutated Thyristor (IGCT) with reverse conducting capability.
Q2: What is the voltage rating of this IGCT module?
A2: The voltage rating is 4500 volts.
Q3: What is the current carrying capacity of the device?
A3: It can handle up to 4000 amperes of current.
Q4: What cooling methods are suitable for this module?
A4: It supports both air and direct liquid cooling.
Q5: In which industrial sectors is this module commonly used?
A5: It is used in traction systems, grid converters, and industrial drives.
Q6: Does this module include integrated RC-snubber functionality?
A6: Yes, it comes with integrated reverse conducting (RC) functionality.
Q7: What mounting style does this module use?
A7: It uses a press pack mounting configuration.
Q8: Can it operate under high switching frequency conditions?
A8: Yes, the design supports high-frequency switching environments.
Q9: Is the module suitable for HVDC applications?
A9: Yes, it’s well-suited for HVDC power conversion systems.
Q10: What are the physical dimensions and weight of the product?
A10: The module measures 140 × 62 × 30 mm and weighs 0.4 kg.
