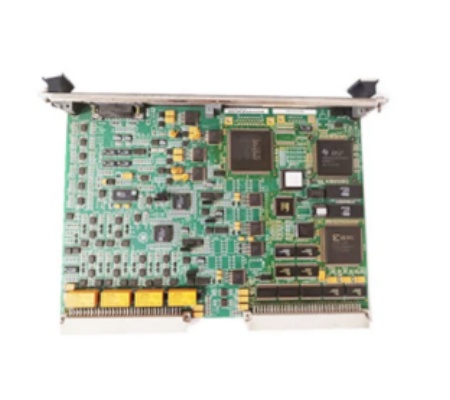

General Electric IS200VSVOH1BDC Servo Control Board

The servo control card IS200VSVOH1BDC is designed for servo valve interface applications with I/O or pulse rate inputs. Another feature of the VSVO card when used with pulse rate inputs is the speed sensor interface. The VSVO card typically uses four servo channels, each of which can use up to three LVDT/LVDR feedback sensors with mid-position, high select or low select functions in software. The servo board is a key component in the complex structure of the control system directly affecting the actuation of the steam and fuel valves. The function revolves around the precise control of four electro-hydraulic servovalves. To ensure efficient control distribution, the four channels managed by the VSVO are intelligently divided between the two TSVO servo terminal boards. Valve Position Sensing To determine the exact position of the valve, the VSVO uses a Linear Variable Differential Transformer.

Frequently asked questions about the product are as follows:

-What is the purpose of the IS200VSVOH1BDC board?

It interfaces with servo valves and actuators in turbine control systems. It provides precise control signals to manage the position and movement of these devices.

-What types of devices does the IS200VSVOH1BDC control?

Servo valves used to regulate fluid flow in hydraulic systems. Actuators for devices that convert control signals into mechanical movement.

-What are the main functions of the IS200VSVOH1BDC?

High-precision control of servo valves and actuators. Multiple output channels for a variety of applications.
