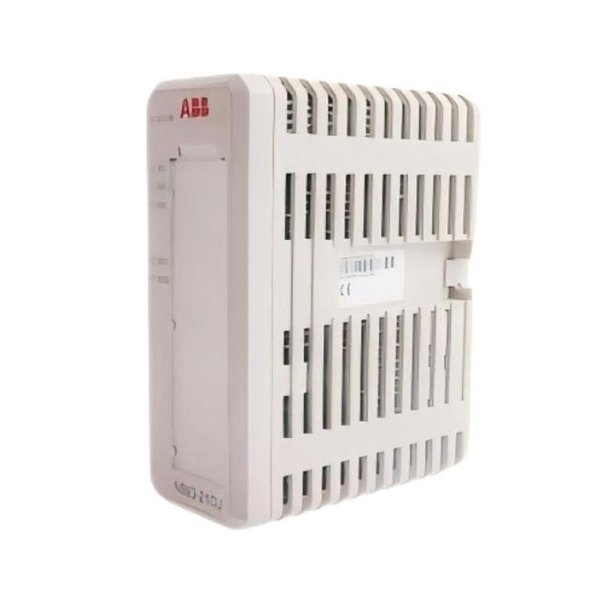

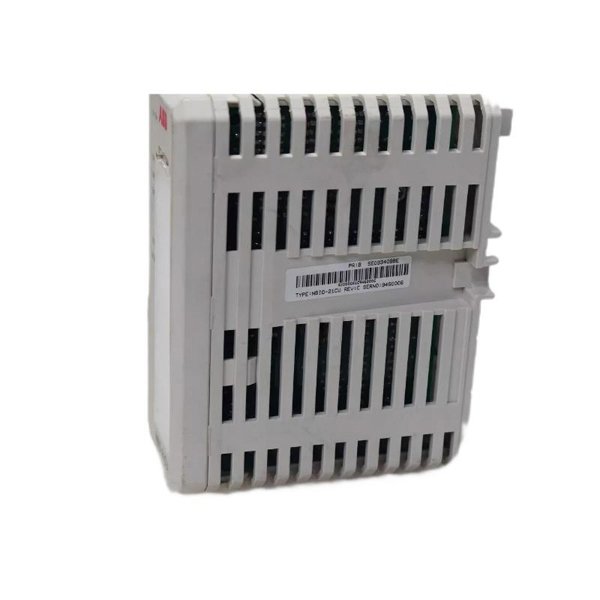

ABB NBIO-21CU 3BHB011947R0121 Fast Basic I/O Unit

The ABB NBIO-21CU (3BHB011947R0121) is a fast basic I/O unit designed to meet the demands of modern industrial automation systems. It offers an efficient and reliable interface between field devices and the central controller, providing rapid digital and analog input/output processing. The unit is engineered to handle high-speed data exchange with minimal latency, ensuring real-time control and monitoring in various industrial environments.

The NBIO-21CU is built for durability and performance, featuring a robust housing suitable for harsh conditions. Its modular design facilitates easy integration into ABB’s broader automation systems, making it a versatile choice for engineers seeking dependable I/O solutions. This unit balances speed, accuracy, and flexibility, making it essential for applications where prompt and precise I/O operations are critical.

Product Parameters

Product Applications

The ABB NBIO-21CU is widely used across diverse industrial sectors that require fast and reliable I/O operations:

• Manufacturing Lines: Enables fast and accurate control of machinery, conveyors, and robotic systems in assembly lines.

• Process Automation: Supports real-time data acquisition and control in chemical, pharmaceutical, and food processing plants.

• Energy Management: Utilized in power plants and renewable energy systems for monitoring and controlling equipment efficiently.

• Water and Wastewater Treatment: Facilitates fast data exchange between sensors and control units, ensuring precise process management.

• Building Automation: Controls HVAC systems, lighting, and security devices in large commercial facilities.

• Material Handling: Ideal for warehouses and logistics centers, providing rapid control of automated storage and retrieval systems.

Product Advantages

• High-Speed Operation

  Designed to handle fast digital and analog I/O signals, ensuring minimal delay in data processing and system response.

• Robust Construction

  With IP54 protection rating, the NBIO-21CU resists dust and splashing water, making it suitable for challenging industrial environments.

• Compact and Modular Design

  Despite its powerful capabilities, the unit maintains a compact footprint (150 × 130 × 75 mm), allowing easy integration into existing panels or racks.

• Versatile Connectivity

  Equipped with both screw terminals and plug connectors, it supports flexible wiring configurations and simplifies installation and maintenance.

• Wide Operating Temperature Range

  Can reliably operate in temperatures ranging from -25°C to +60°C, suitable for various climates and conditions.

• Energy Efficient

  Operates at a low voltage of 24 V DC, reducing power consumption in large automation setups.

• Enhanced Signal Integrity

  Supports noise-resistant communication, which minimizes data errors and increases overall system reliability.

• Easy Integration

  Compatible with a broad range of ABB automation systems, facilitating seamless communication and system scalability.

• Maintenance Friendly

  The design allows quick access for inspection and replacement, reducing downtime during maintenance cycles.

• Compliance and Safety

  Meets international standards including CE, UL, and RoHS, guaranteeing safety and quality in industrial use.

Frequently Asked Questions (FAQ)

1. Q: What is the main function of the NBIO-21CU unit?

   A: It acts as a fast basic input/output interface unit, managing digital and analog signals between field devices and control systems.

2. Q: What are the physical dimensions of the NBIO-21CU?

   A: The unit measures 150 × 130 × 75 mm.

3. Q: How much does the NBIO-21CU weigh?

   A: The weight is 5.443 kg.

4. Q: What is the operating voltage of the unit?

   A: It operates at 24 V DC.

5. Q: Can the NBIO-21CU operate in harsh environments?

   A: Yes, it has an IP54 rating protecting against dust and splashing water, and operates between -25°C and +60°C.

6. Q: What types of input and output signals does it support?

   A: It supports both digital and analog inputs and outputs.

7. Q: How is the unit mounted?

   A: It can be mounted on panels or DIN rails.

8. Q: Is the NBIO-21CU compatible with other ABB automation products?

   A: Yes, it integrates easily with ABB’s automation systems.

9. Q: What connectors does the NBIO-21CU use?

   A: It uses screw terminals and plug-in connectors for flexible wiring.

10. Q: Does the NBIO-21CU comply with industrial standards?

    A: Yes, it complies with CE, UL, and RoHS standards.
