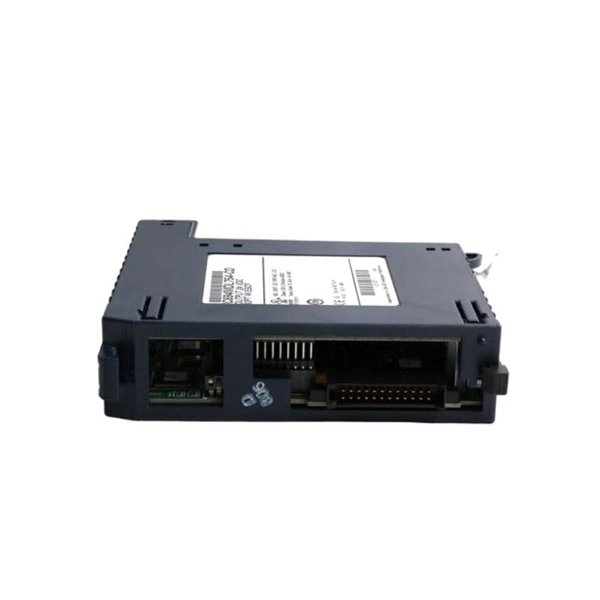

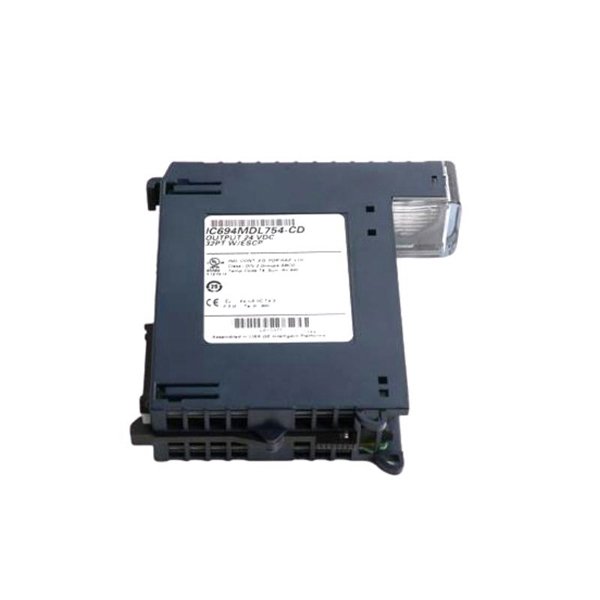

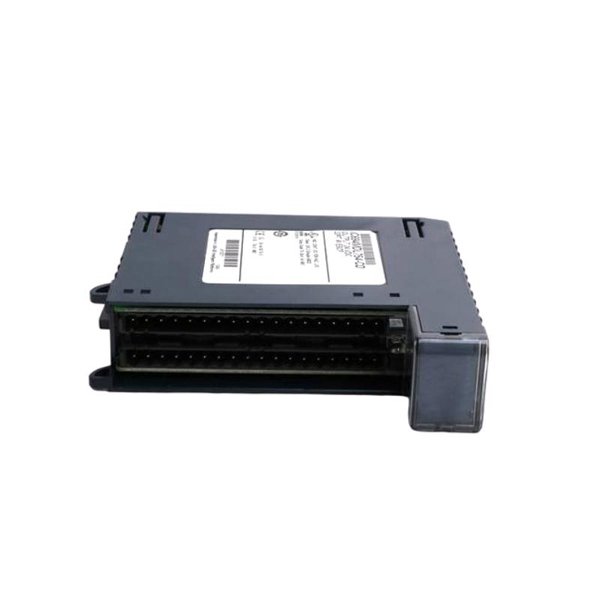

General Electric IC694MDL754-CC DC Voltage Output Module

The GE IC694MDL754-CC is a 32-point, 12/24 VDC Positive Logic Output Module designed for the PACSystems™ RX3i series. It provides two isolated groups of 16 outputs each, enabling flexible and reliable control in industrial automation applications. Each output can source up to 0.75 A, making it suitable for driving a variety of loads. The module features Electronic Short Circuit Protection (ESCP) and is designed to interface seamlessly with RX3i controllers.​

Technical Specifications

Applications

The IC694MDL754-CC module is suitable for a wide range of industrial applications, including:​

• Manufacturing automation systems​

• Process control applications​

• Material handling equipment​

• Packaging machinery​

• Energy management systems​

Advantages

The IC694MDL754-CC offers several benefits that enhance its suitability for industrial applications:​

• High Output Density: Provides 32 discrete outputs, reducing the need for multiple modules.​

• Isolated Output Groups: Two isolated groups of 16 outputs each enhance system flexibility and safety.​

• Fast Response Time: Quick on/off response times (0.5 ms) ensure timely control actions.​

• Robust Design: Built to withstand industrial environments with appropriate certifications.​

• Ease of Integration: Compatible with PACSystems RX3i series, facilitating seamless integration into existing systems.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC694MDL754-CC module?

   It provides 32 discrete DC voltage output points for controlling various industrial devices.

2. How are the outputs organized in the module?

   The 32 outputs are arranged in two isolated groups of 16, each with its own common.

3. What type of logic does the module use?

   It utilizes positive logic (sourcing) for output control.

4. What is the maximum current per output point?

   Each point can handle up to 0.75 A.

5. Does the module offer short circuit protection?

   Yes, it includes Electronic Short Circuit Protection (ESCP) to safeguard against overcurrent conditions.

6. Can the module be mounted on a DIN rail?

   Yes, it supports both panel and DIN rail mounting options.

7. What are the dimensions and weight of the module?

   It measures 34 x 145 x 140 mm mm and weighs 0.381 kg.

8. Is the module compatible with other GE Fanuc PLCs?

   It is specifically designed for the PACSystems RX3i series.

9. What certifications does the module have?

   It holds certifications including UL, UL HAZLOC, CE, ATEX Zone 2, ABS, BV, DNV, GL, KRS, and LR.

10. What happens to the outputs when the CPU is stopped?

    All 32 outputs are forced OFF when the CPU is stopped.
