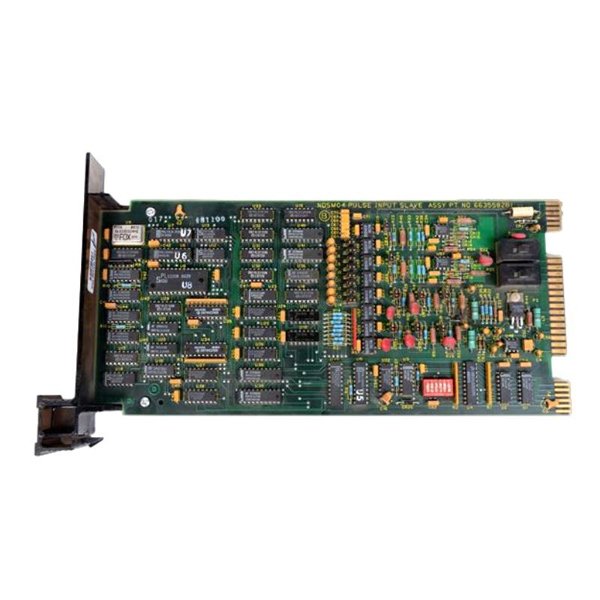

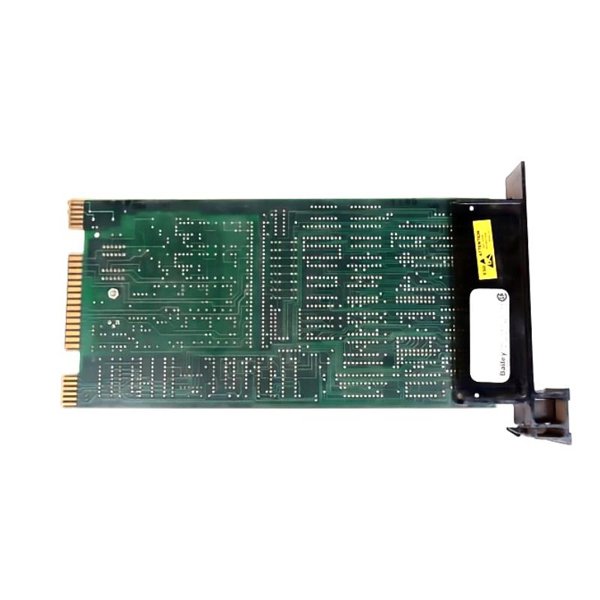

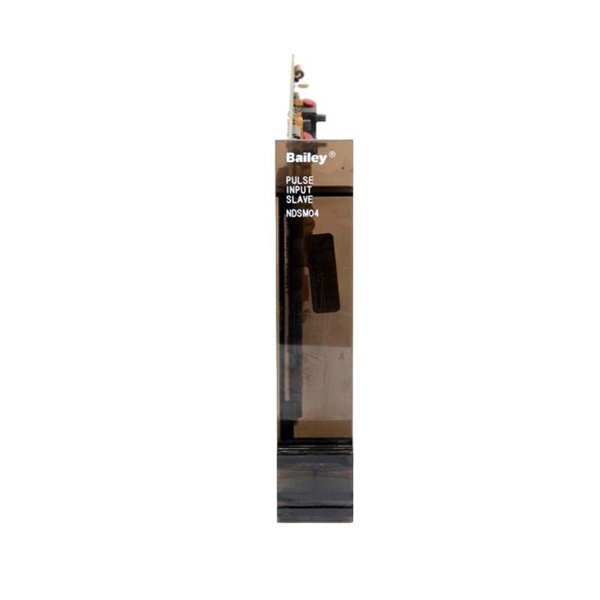

ABB Bailey NDSM04 Digital Slave Input Module

The ABB Bailey NDSM04 is a robust and reliable Digital Slave Input Module designed for integration within ABB Bailey INFI 90 Distributed Control Systems (DCS). Known for its high quality, long life cycle, and stable performance, the NDSM04 enables efficient digital signal acquisition from field devices across various industrial applications.

Equipped with 32 digital input channels, the NDSM04 is capable of monitoring and transmitting discrete input signals to the process controller or DCS system. Each channel is optically isolated to provide superior noise immunity and system protection, making the module well-suited for demanding industrial environments.

It supports a wide range of input voltages, ensures rapid signal processing, and maintains consistent accuracy. The NDSM04 is engineered to work seamlessly with ABB Bailey control systems, preserving system integrity while enhancing operational efficiency.

Product Parameters

Applications

The ABB Bailey NDSM04 Digital Slave Input Module is widely deployed in numerous industrial sectors where reliable digital signal acquisition and processing are required. Key application areas include:

• Power Generation: Monitoring circuit breakers, protection relays, switches.

• Oil & Gas: Supervising pump status, valve position, emergency shutdown signals.

• Petrochemical: Managing process interlocks, safety monitoring.

• Water Treatment: Monitoring pump control, valve operations, alarm inputs.

• Manufacturing: Tracking machine status, safety circuits, conveyor feedback.

• Steel and Metals Processing: Monitoring drives, interlocks, furnace controls.

• Pharmaceutical: Managing clean room doors, alarms, process equipment.

Advantages

• High Channel Density: 32 channels provide compact signal acquisition.

• Excellent Isolation: Optical isolation on all channels protects the system from electrical noise.

• Fast Response Time: Suitable for time-sensitive applications requiring prompt detection of state changes.

• Proven Compatibility: Fully compatible with ABB Bailey INFI 90 and Net 90 systems.

• Industrial Grade: Operates reliably in harsh industrial environments.

• Low Power Consumption: Minimizes heat generation and energy costs.

• Modular Design: Easily integrates into existing system architecture.

• Reliable Long-Term Operation: Designed for long-term stability and minimal maintenance.

• Extensive Certification: Compliant with major international standards.

• Cost-Effective: Delivers excellent performance at a competitive price.

Frequently Asked Questions (FAQ)

1. How many digital inputs does the NDSM04 module support?

   It supports 32 digital input channels.

2. Is the NDSM04 compatible with ABB INFI 90 systems?

   Yes, it is specifically designed for compatibility with ABB Bailey INFI 90 and Net 90 DCS platforms.

3. What is the typical input voltage range for the NDSM04?

   The nominal input voltage is 24 VDC with ±20% tolerance.

4. Does each input channel have optical isolation?

   Yes, each input channel is optically isolated to ensure system protection.

5. What kind of devices can I connect to this input module?

   It can connect to dry contacts, push buttons, switches, limit switches, or voltage-driven inputs.

6. What is the maximum operating temperature for this module?

   The module can operate at temperatures up to +60°C.

7. How is the module mounted within the system?

   The module can be mounted on a DIN rail or directly in the system chassis.

8. Does the NDSM04 require frequent maintenance?

   No, it is designed for long-term stable operation with minimal maintenance requirements.

9. Can I use this module in high-vibration environments?

   Yes, the module is rated to withstand vibration levels of 1.0 g (10-60 Hz).

10. Is this module approved for use in industrial environments?

    Yes, it holds CE, CSA, UL, and RoHS certifications.
