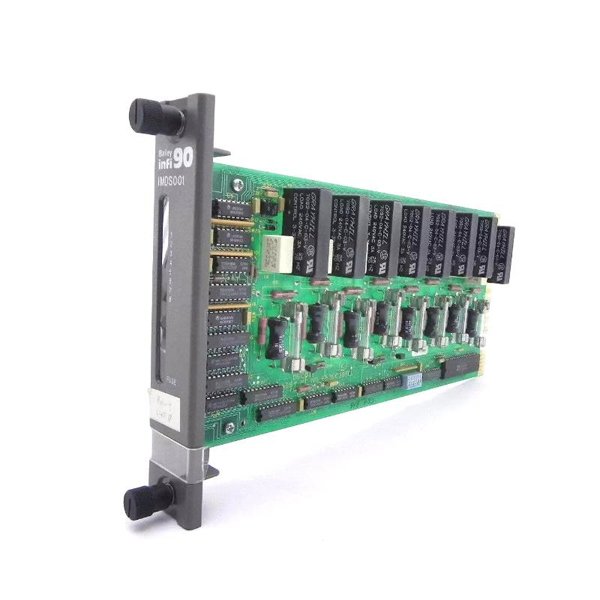

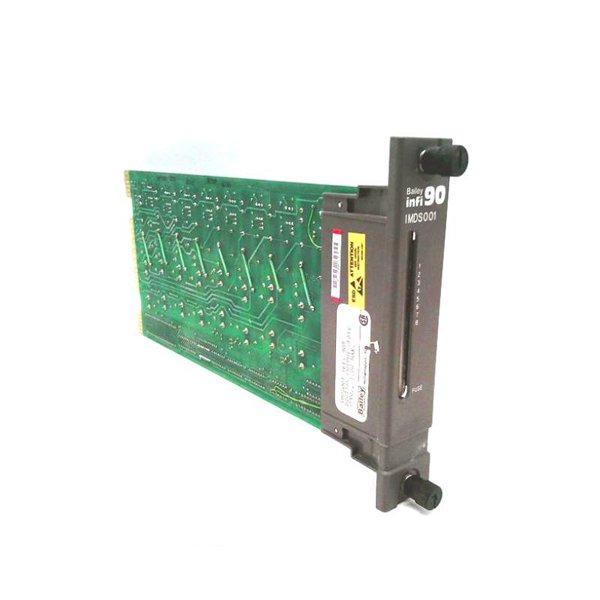

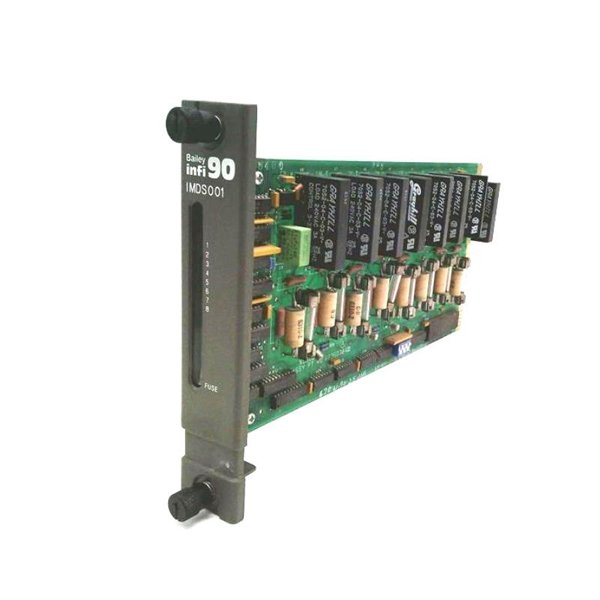

ABB Bailey IMDSO01 6636038E1 Digital Output Slave Module

The ABB Bailey IMDSO01 6636038E1 Digital Output Slave Module is a part of the renowned Bailey Control System, designed to provide high-performance digital output functions in automation and process control systems. The module is an integral component of the distributed control system (DCS) and plays a key role in actuating and controlling external devices like solenoids, relays, and other field devices. It is compatible with various industrial processes requiring precise control over digital signals.

Key Features

• High reliability and real-time performance for digital outputs

• Compatible with ABB’s Bailey DCS, ensuring seamless integration and functionality

• Robust design for industrial environments, capable of handling harsh conditions

• Easy integration into existing automation systems

• Supports various types of digital field devices for a wide range of applications

• Low power consumption and high efficiency

• Simplifies system setup with user-friendly configuration options

Product Specifications

Applications

The IMDSO01 6636038E1 Digital Output Slave Module is widely used in various industrial and automation sectors, including:

1. Manufacturing Plants: To control machinery and equipment, such as valves, actuators, and conveyors.

2. Chemical Processing: For managing digital output signals to control pumps, mixers, and other equipment.

3. Energy and Utilities: To regulate circuit breakers, generators, and other energy distribution systems.

4. Oil and Gas: To control equipment such as solenoids, actuators, and emergency shut-off valves.

5. Water Treatment Plants: For monitoring and controlling digital signals for pumps and filtration systems.

Advantages

• Reliability: The module’s robust design ensures long-term reliability and consistent performance in demanding environments.

• Seamless Integration: Designed to integrate easily with ABB’s Bailey Distributed Control Systems, it provides efficient and reliable control of connected devices.

• High-Quality Output Signals: Provides high-precision digital output signals for controlling external devices.

• Flexible Communication: Supports multiple communication protocols, making it suitable for diverse industrial applications.

• Compact and Lightweight: Its compact size and low weight make it easy to install in tight spaces, contributing to system efficiency and scalability.

• Energy Efficiency: Designed to consume minimal power, reducing operational costs and environmental impact.

FAQ (Frequently Asked Questions)

1. What is the primary function of the ABB Bailey IMDSO01 6636038E1 Digital Output Slave Module?

   • The primary function is to provide digital output signals for controlling external devices in an automation system, such as solenoids, relays, and actuators.

2. What is the maximum current output per channel?

   • Each channel can handle a maximum of 500 mA.

3. How many digital outputs are available on the IMDSO01 module?

   • The module has 16 digital output channels.

4. What is the operating temperature range for this module?

   • The operating temperature range is between -20°C to +70°C.

5. Can the IMDSO01 module be used in hazardous environments?

   • Yes, the IMDSO01 module is designed for industrial environments but should be installed in an enclosure for environments that require additional protection.

6. What communication protocol does the IMDSO01 use?

   • The module uses a Fieldbus interface (RS485) for communication.

7. How is the IMDSO01 module mounted?

   • It is mounted on a DIN rail for easy installation.

8. What is the typical voltage input for the IMDSO01 module?

   • The module typically operates at a nominal input voltage of 24V DC.

9. What is the weight of the IMDSO01 module?

   • The IMDSO01 module weighs 0.454 kg.

10. What is the environmental protection rating of this module?

• The module has an IP20 rating, which protects against solid objects larger than 12 mm but is not waterproof.
