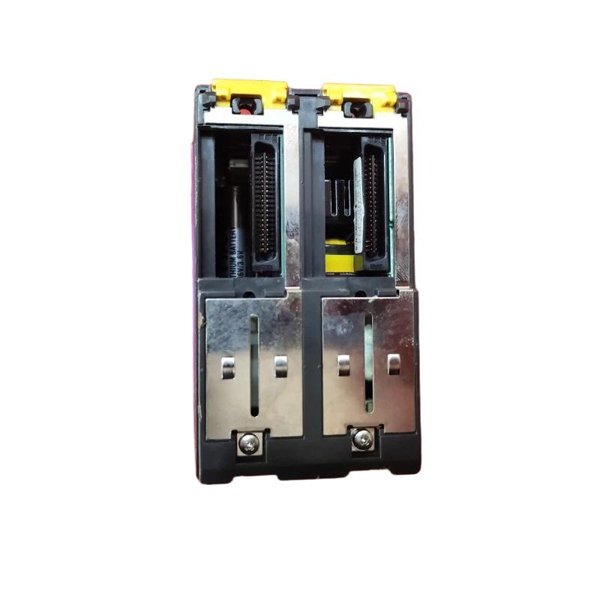

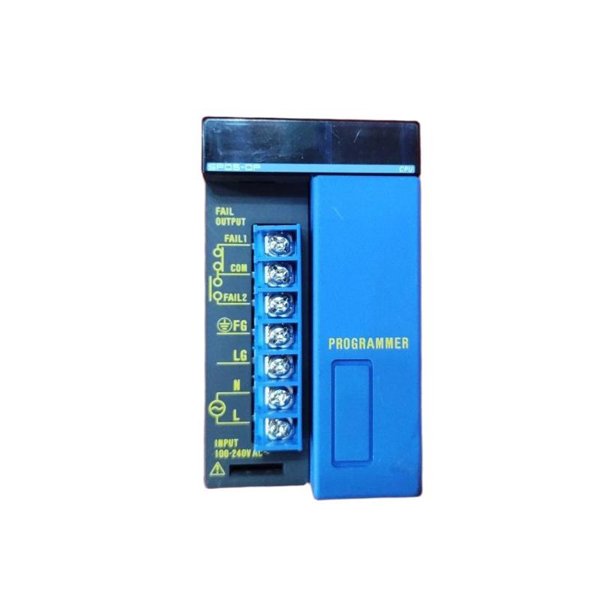

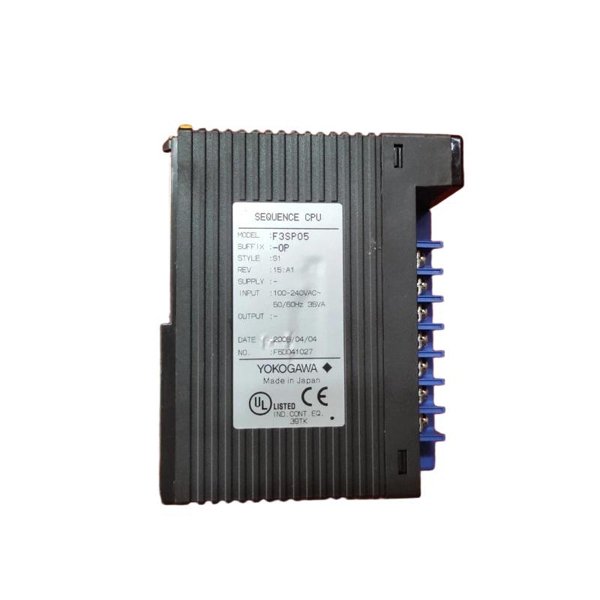

Yokogawa F3SP05-0P CPU Module

The Yokogawa F3SP05-0P is a high-performance sequence CPU module designed for Yokogawa’s F3 Series control systems. It plays a vital role in industrial automation by providing real-time processing and controlling the sequence of operations in process control environments. This module is part of the F3 Series, which is known for its reliability, scalability, and flexibility in managing industrial processes.

With its compact design and powerful capabilities, the F3SP05-0P is ideal for industries such as oil and gas, chemical processing, power generation, and automated manufacturing. It can be used to control complex sequences of operations and provides smooth, continuous control to ensure optimal performance in industrial settings.

Product Parameters

Applications

The Yokogawa F3SP05-0P CPU module is designed for high-efficiency sequence control in various industrial applications. It is commonly used in:

• Industrial Automation: Automating production lines and machinery control in manufacturing environments.

• Process Control: Used in Yokogawa Centum VP systems for controlling complex industrial processes such as chemical production, oil refining, and power plants.

• Data Acquisition: The module ensures high-speed and real-time data collection and processing, supporting SCADA systems and industrial monitoring.

• Safety Systems: Reliable processing for safety-critical applications, ensuring timely responses to emergencies and maintaining system integrity.

• Energy Management Systems: Controlling and optimizing energy usage in industrial plants, making processes more efficient and cost-effective.

Its flexibility and high-speed processing capabilities make it suitable for controlling complex processes in a wide range of industries.

Advantages

1. High-Speed Processing: The F3SP05-0P provides high-speed processing for sequence control, ensuring smooth operation of industrial processes.

2. Compact Design: With dimensions of 83.2 x 100 x 58 mm and a weight of 0.105 kg, the module is compact and easy to integrate into control systems with limited space.

3. Versatile Communication Ports: The module supports multiple communication protocols, including Ethernet, Serial, and Profibus, ensuring compatibility with various control systems and devices.

4. Reliability: Built for industrial environments, the F3SP05-0P ensures reliable operation and continuous performance, even under demanding conditions.

5. Wide Temperature Range: The module operates effectively in a temperature range of -10°C to +60°C, suitable for diverse industrial environments.

6. Ease of Installation: The F3SP05-0P can be easily mounted on a DIN rail, allowing quick installation and simplified maintenance.

7. Seamless Integration: It integrates smoothly with Yokogawa Centum VP systems and other automation solutions for improved control and system performance.

FAQ

1. What type of CPU does the F3SP05-0P module use?

The F3SP05-0P is a sequence CPU module, designed for high-speed processing of sequential operations in industrial automation systems.

2. What input voltage does the F3SP05-0P require?

The module requires a 24 V DC power supply for operation.

3. What communication protocols are supported by the F3SP05-0P?

It supports Ethernet, Serial, and Profibus communication protocols, ensuring compatibility with various control systems.

4. What is the processing speed of the F3SP05-0P?

The module provides high-speed processing, enabling smooth operation and control of industrial processes.

5. What is the operating temperature range for the F3SP05-0P?

The module operates within a temperature range of -10°C to +60°C, making it suitable for use in a wide variety of industrial environments.

6. How is the F3SP05-0P installed?

The module can be mounted on a DIN rail, providing an easy and efficient installation process.

7. Is the F3SP05-0P suitable for use in safety systems?

Yes, the module’s reliable processing and real-time control capabilities make it suitable for safety-critical applications.

8. What industries benefit from using the F3SP05-0P module?

Industries such as oil and gas, chemical processing, power generation, and automated manufacturing benefit from its capabilities in controlling complex industrial processes.

9. Can the F3SP05-0P be integrated with Yokogawa Centum VP systems?

Yes, the F3SP05-0P is fully compatible with Yokogawa Centum VP systems, allowing seamless integration into automation solutions.

10. How does the F3SP05-0P enhance process control?

The module provides real-time sequence control and high-speed processing, improving efficiency, reliability, and safety in industrial process control.
