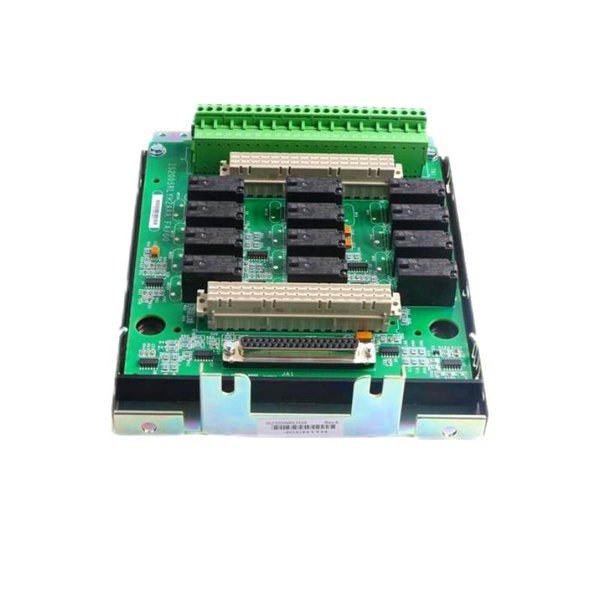

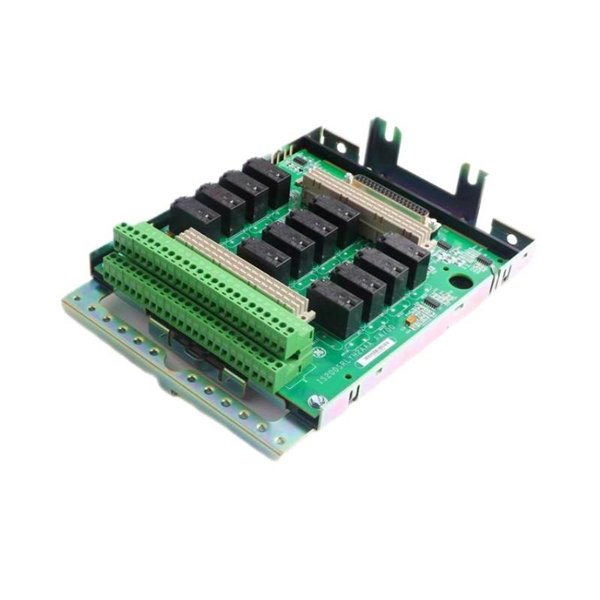

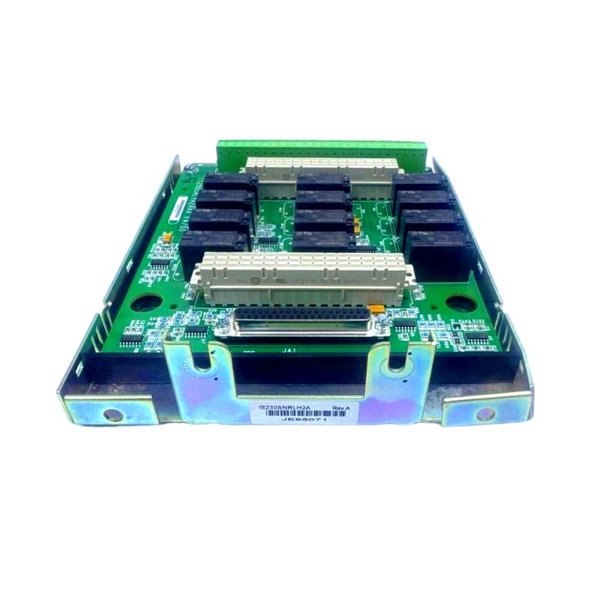

General Electric IS230SNRLH2A Discreet output Relay Module

The GE IS230SNRLH2A Discreet Output Relay Module is a high-performance, industrial-grade module designed for controlling discrete outputs in various automation systems. This module is part of the GE Mark VIe control system and is primarily used to manage relay outputs, providing a robust and reliable interface for system control.

Product Specifications

Applications

1. Power Generation – It is used to control various actuators, including valves, motors, and other mechanical devices, ensuring system efficiency and safety.

2. Oil & Gas – This module helps in controlling equipment such as pumps and switches in hazardous environments.

3. Manufacturing – It is used in automated production lines to control machinery, ensuring high levels of reliability and uptime.

4. Water Treatment – The module is used in systems that require precise control of pumps and valves.

5. Energy Distribution – It plays a crucial role in switching relay outputs to control electrical equipment in energy distribution networks.

Advantages

1. High Reliability: Built to function under tough industrial conditions, ensuring minimal downtime and continuous operation.

2. Flexible Control: Supports multiple control configurations, allowing for precise management of relays in complex automation systems.

3. Compact Design: Its small form factor (167 x 148 x 55 mm) allows it to be easily integrated into existing control panels and systems.

4. Wide Temperature Range: It can operate in a wide temperature range of -20°C to 60°C, making it suitable for harsh environments.

5. High-Quality Construction: The durable construction ensures longevity, reducing maintenance requirements and operational costs.

6. Seamless Integration: Easily integrates with the GE Mark VIe control system, providing reliable output control.

FAQ

1. What is the maximum current rating for each output channel?

The maximum current rating for each output channel is 2A.

2. Can this module handle both AC and DC control voltages?

Yes, the GE IS230SNRLH2A supports both 24 VDC and 110/220 VAC control voltages.

3. What type of mounting is supported by the module?

The module is designed for DIN rail mounting, making it easy to install in industrial control cabinets.

4. Is this relay module compatible with other GE Mark VIe system components?

Yes, it is fully compatible with other GE Mark VIe control system components, providing seamless integration.

5. What environmental conditions can the module operate under?

The module can operate in temperatures ranging from -20°C to 60°C and in relative humidity levels of 5% to 95% (non-condensing).

6. Can the module be used in hazardous environments?

Yes, it is suitable for use in hazardous environments, including power plants and oil & gas facilities, where reliability is critical.

7. How many discrete outputs does this module support?

The GE IS230SNRLH2A supports 8 discrete relay output channels.

8. What is the weight of the GE IS230SNRLH2A module?

The weight of the module is 0.56 kg.

9. Does the module have any protection mechanisms?

Yes, the module is designed with built-in protections to ensure safe operation under various conditions.

10. Can this module be used in energy distribution applications?

Yes, it is commonly used in energy distribution systems to control electrical equipment reliably.
