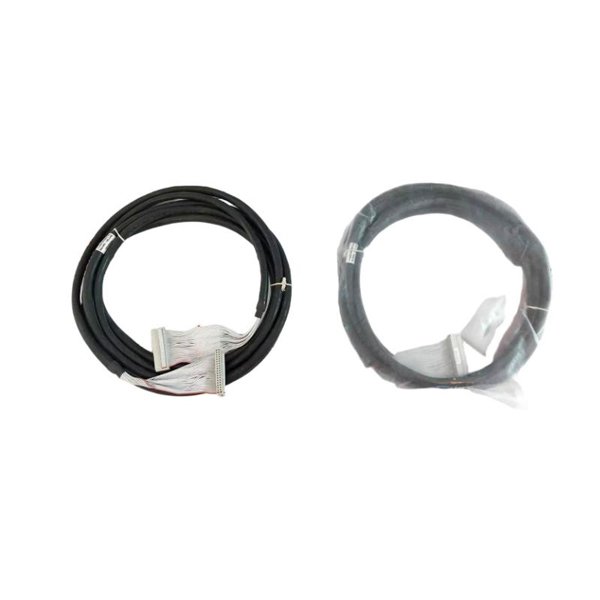

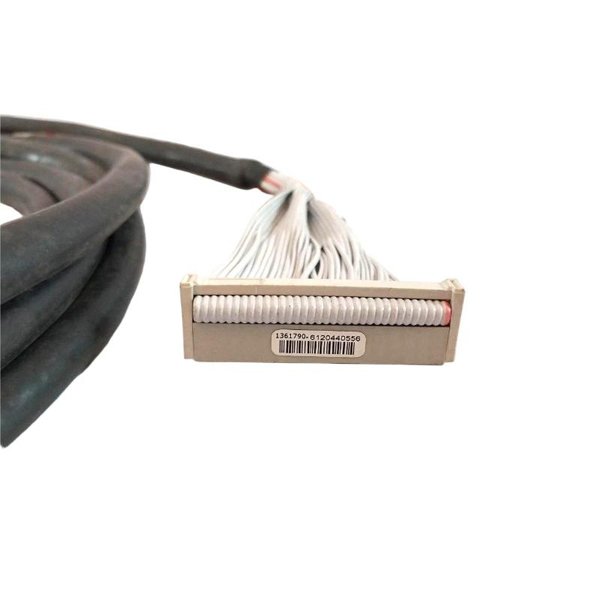

Honeywell FS-IOBUS-CPX-x I/O Bus from Control Cabinet to Extension Cabinet

The Honeywell FS-IOBUS-CPX-x is a high-performance I/O bus designed to seamlessly integrate control cabinets with extension cabinets in industrial automation systems. This bus system is essential for the efficient transmission of signals between the main control system and remote units, allowing for the distribution of I/O signals over a greater distance while maintaining system integrity and operational efficiency.

This model offers a 4.2-meter cable length and weighs approximately 0.8 kg, making it lightweight yet robust enough to handle the demands of industrial environments. With its high reliability, flexibility, and easy installation, the FS-IOBUS-CPX-x ensures that your system operates without interference or downtime, allowing for easy communication across large distances between connected devices.

The FS-IOBUS-CPX-x is ideal for use in industries like manufacturing, energy, chemical, and automated control systems. It offers robust data transmission and ensures that signals are transmitted accurately between multiple systems, all while minimizing the chances of signal degradation over long distances.

Technical Parameters

Applications

The Honeywell FS-IOBUS-CPX-x I/O bus system plays a critical role in ensuring seamless communication between control and extension cabinets. Its versatility makes it suitable for a wide range of applications in industrial automation environments.

1. Industrial Automation Systems

   In industrial automation systems, the FS-IOBUS-CPX-x is used to extend I/O systems, enabling remote signal processing from extension cabinets back to the main control system. This is particularly important in large-scale factories and manufacturing plants where equipment is spread out over a wide area.

2. Remote I/O Configuration

   The FS-IOBUS-CPX-x allows the distribution of control signals over long distances, making it perfect for systems that require multiple remote I/O devices, such as those in automated warehouses or production lines.

3. Energy and Utilities

   In energy systems, this bus system ensures reliable communication between control and remote monitoring units such as temperature and pressure sensors in power plants and utility substations. It helps manage remote equipment like switches, valves, and pumps efficiently.

4. Process Control

   For process control applications, the FS-IOBUS-CPX-x is used to interconnect devices in a way that reduces latency in the system. It ensures that data from various sensors and control systems is transmitted with high accuracy and reliability.

Advantages

1. High-Speed Data Transmission

   The FS-IOBUS-CPX-x is designed to handle high-speed data transmission, ensuring that signals from remote I/O devices are sent and received quickly and accurately, with minimal delay.

2. Durability and Reliability

   With high-quality PVC insulation and fully shielded cables, the system offers excellent resistance to electromagnetic interference (EMI) and other environmental factors, making it ideal for use in industrial settings.

3. Flexible and Easy Installation

   The 4.2-meter cable length provides flexibility in installation, allowing for easy integration into existing systems without the need for additional modifications. The system is also compatible with DIN rail mounting, providing further flexibility.

4. Wide Operating Temperature Range

   The FS-IOBUS-CPX-x operates efficiently in a wide range of temperatures, from -20°C to +70°C, making it suitable for use in various industries and harsh environments, from outdoor fields to factory floors.

FAQ

Q1: What is the cable length of the FS-IOBUS-CPX-x I/O bus system?

A1: The FS-IOBUS-CPX-x comes with a 4.2-meter cable length, making it ideal for long-distance signal transmission between control cabinets and extension cabinets.

Q2: How much does the FS-IOBUS-CPX-x system weigh?

A2: The system weighs approximately 0.8 kg, making it lightweight and easy to handle during installation.

Q3: What is the maximum operating temperature for the FS-IOBUS-CPX-x?

A3: The FS-IOBUS-CPX-x can operate in temperatures ranging from -20°C to +70°C, making it suitable for use in a wide range of industrial environments.

Q4: What is the voltage rating of the FS-IOBUS-CPX-x?

A4: The system operates at a 24 V DC voltage rating, which is commonly used in many industrial applications.

Q5: What type of signal does the FS-IOBUS-CPX-x transmit?

A5: The FS-IOBUS-CPX-x is designed to transmit I/O signals, enabling communication between remote devices and control systems.

Q6: Is the FS-IOBUS-CPX-x compatible with DIN rail mounting?

A6: Yes, the FS-IOBUS-CPX-x is compatible with DIN rail mounting, allowing for flexible and easy installation in various industrial setups.

Q7: Does the FS-IOBUS-CPX-x feature any protection against environmental interference?

A7: Yes, the system comes with fully shielded cables that provide protection against electromagnetic interference (EMI), ensuring stable and reliable data transmission in noisy environments.

Q8: What industries are best suited for the FS-IOBUS-CPX-x?

A8: The FS-IOBUS-CPX-x is ideal for use in industries such as automated manufacturing, energy, chemical processing, and industrial control systems.

Q9: Can the FS-IOBUS-CPX-x be used for remote I/O configurations?

A9: Yes, the FS-IOBUS-CPX-x is specifically designed to enable the extension of I/O systems, making it perfect for remote I/O configurations in large-scale industrial setups.

Q10: How is the FS-IOBUS-CPX-x installed in an industrial system?

A10: The system can be easily installed by connecting it between control and extension cabinets, with its DIN rail mounting options providing flexibility during installation.
