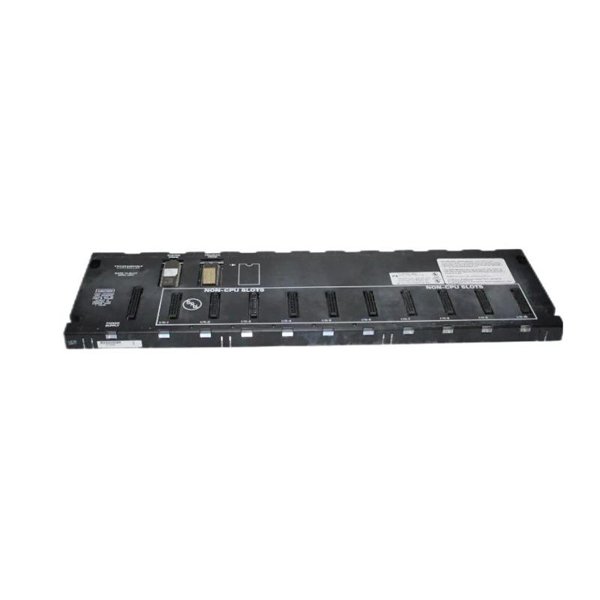

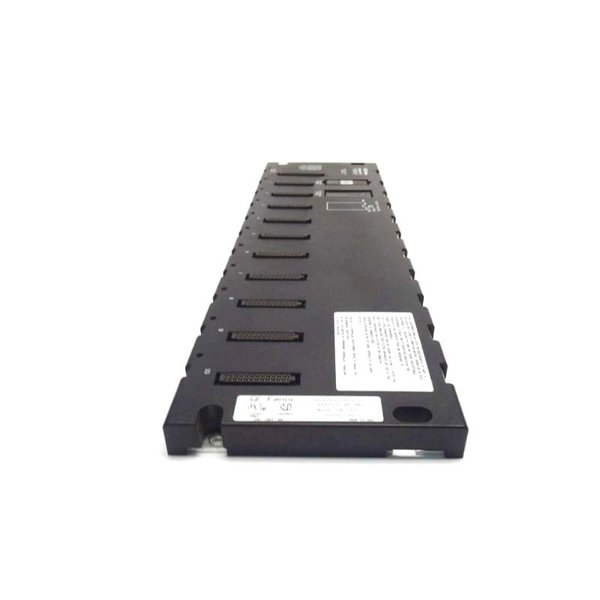

General Electric IC693CPU323 10 Slot Base With CPU

The GE IC693CPU323 is an integrated 10-slot base unit that includes a built-in CPU for the GE Fanuc Series 90-30 programmable logic controller (PLC) system. This compact and cost-effective PLC solution combines the central processing unit with a modular I/O base, offering a space-saving and efficient control option for small to medium-sized industrial automation applications. Engineered for reliability and simplicity, the IC693CPU323 is designed to streamline control system architecture, making it an excellent choice for OEMs and process control engineers seeking a robust and expandable control platform.

The unit features integrated power supply capabilities, onboard memory, I/O support, and communication options—making it well-suited for standalone applications or as part of a larger distributed control system.

Product Specifications

Product Applications

The GE IC693CPU323 is widely adopted in a variety of industries and applications, including:

• Factory Automation: Controls assembly lines, conveyor systems, and packaging machines.

• Water/Wastewater Management: Supervises pump stations, filter systems, and SCADA connectivity.

• HVAC Systems: Manages industrial ventilation, heating, and cooling equipment.

• Building Automation: Integrates security, lighting, and elevator control systems.

• Machine Tool Control: Handles the logic for CNC machines and robotic arms.

• Food and Beverage: Controls batching, filling, and bottling systems with precision and safety.

Its modularity and expandable design make it an adaptable choice for both centralized and decentralized control strategies.

Product Advantages

• All-in-One Integration: Combines CPU and 10-slot base in a single module to save space and reduce wiring complexity.

• Expandable Design: Compatible with a wide range of Series 90-30 I/O, analog, digital, and communication modules.

• Rugged Reliability: Designed for harsh industrial environments with strong EMC and thermal endurance.

• Flexible Communications: Supports RS-232 and optional Ethernet or Profibus for SCADA integration.

• Quick Instruction Execution: Boolean logic processing at microsecond-level speeds for fast control.

• Battery-Backed Memory: Retains user programs and clock data during power outages.

• Real-Time Clock: Supports time-stamped logging and scheduled operations.

• Simple Installation: Compact design with intuitive mounting and easy wiring access.

• Wide Software Support: Configurable using GE’s VersaPro or Proficy Machine Edition.

• Proven Platform: Built on GE’s trusted Series 90-30 architecture, widely used globally for decades.

Frequently Asked Questions (FAQ)

1. Q: What is included in the IC693CPU323 module?

   A: It includes a built-in CPU, integrated power supply, and a 10-slot base for I/O expansion.

2. Q: Is the module programmable via standard GE software tools?

   A: Yes, it is compatible with VersaPro and Proficy Machine Edition.

3. Q: How much user memory does the CPU provide?

   A: It provides approximately 240KB of total user memory for logic and data.

4. Q: Can I add Ethernet communication?

   A: Yes, using additional modules such as the IC693CMM321 Ethernet module.

5. Q: Does the unit support redundancy?

   A: While the IC693CPU323 itself doesn’t support CPU redundancy, it can be part of a redundant control system using external configurations.

6. Q: What type of mounting does it support?

   A: It supports both DIN-rail and panel mounting.

7. Q: Is the CPU hot-swappable?

   A: No, the CPU should be powered down before installation or removal.

8. Q: What is the backup power source for memory retention?

   A: A replaceable lithium battery supports memory and RTC backup.

9. Q: Can I monitor the system remotely?

   A: Yes, with proper communication modules and SCADA/HMI integration.

10. Q: Is it suitable for outdoor installation?

    A: No, it must be installed in a controlled indoor cabinet or enclosure.
