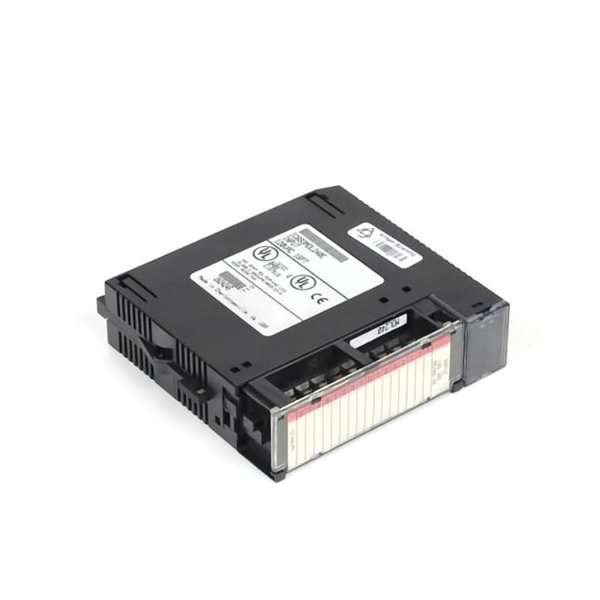

General Electric IC693MDL240 Input Module

The GE IC693MDL240 is a 120VAC discrete input module designed for use with GE Fanuc’s Series 90-30 Programmable Logic Controller (PLC) systems. This input module features 16 individual input points grouped in two sets of 8. Each input is isolated and can detect signals from standard AC sources, making it a suitable choice for a wide variety of industrial control applications.

The module interfaces directly with field input devices such as push buttons, limit switches, and proximity sensors. It allows these devices to transmit signals to the PLC system for logic processing. The IC693MDL240 is engineered for durability, efficient performance, and ease of integration, making it a staple in automated industrial environments.

Product Specifications

Applications

The GE IC693MDL240 is widely used in industrial automation systems where AC signal detection is necessary. Key application areas include:

• Manufacturing Automation – Interfacing with AC-powered sensors and switches in production lines.

• Process Control Systems – Receiving signals from limit switches and flow sensors.

• Material Handling Systems – Monitoring conveyor status and sensor inputs.

• Building Automation – Receiving AC control signals from room occupancy and lighting systems.

• Utilities and Power Plants – Integrating with high-voltage monitoring systems.

• Packaging Machinery – Capturing operator inputs and fault signals.

Product Advantages

• Reliable AC Signal Detection: Engineered to handle standard 120VAC inputs with high accuracy.

• High Isolation Protection: Offers 1500VAC isolation, ensuring protection for logic circuits.

• Status Indication per Input: Each input channel is equipped with an LED indicator for troubleshooting.

• Wide Voltage Range: Operates effectively across a broad voltage range, accommodating various field conditions.

• Low Power Draw: Consumes minimal backplane power, supporting energy-efficient system design.

• Compact Design: Space-saving form factor ideal for dense panel layouts.

• Seamless Integration: Fully compatible with the GE Series 90-30 platform, simplifying installation and replacement.

• Proven Industrial Performance: Built for harsh environments and long-term deployment.

FAQ

1. What is the function of the GE IC693MDL240 module?

   It detects 120VAC discrete signals from field devices and sends them to the PLC for processing.

2. How many input channels does it have?

   The module includes 16 discrete input points, organized in two groups of 8.

3. Is the module compatible with DC signals?

   No, it is specifically designed for AC signals, with an operating range of 74 to 132 VAC.

4. What is the minimum ON voltage required?

   The module detects ON-state voltages starting from 74 VAC.

5. What kind of field devices can it connect to?

   Typical devices include push buttons, limit switches, float switches, and proximity sensors.

6. Does the module have status LEDs?

   Yes, each input point has a dedicated LED for status indication.

7. How does the module connect to the PLC system?

   It plugs into a baseplate that connects to the Series 90-30 backplane.

8. What is the isolation voltage rating?

   It offers 1500VAC isolation between the field side and the logic side.

9. Can it be mounted on a DIN rail?

   Yes, when used with the appropriate baseplate, DIN rail mounting is supported.

10. Is it hot-swappable?

    No, power should be turned off before inserting or removing the module.
